CaBle ConneCti on

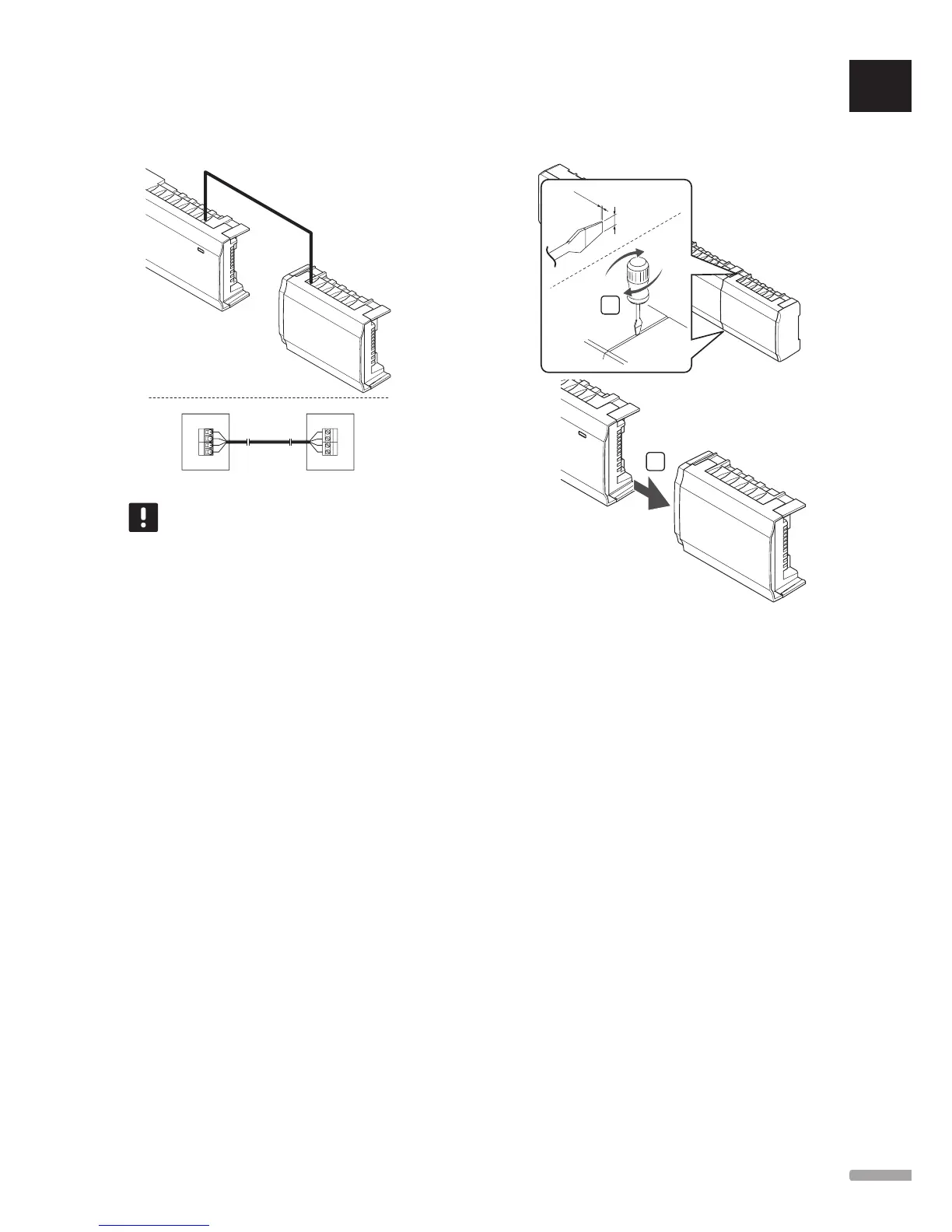

The illustration below shows how to connect the star
module to the controller using cable connection.
AB+-
- +BA
NOTE!
This connection method uses two extra
connection points in the system.
remove the star m odule
The illustration below shows how to remove the star
module from the controller.
1
1.2 mm
8 mm
2
1. Place a wide flat head screwdriver in the slot
between the star module and the other unit and
twist until one side has popped of. Repeat for the
other side.
2. Remove the star module. Use caution not to bend
the connection pins.
UK
CZ
DE
DK
EE
ES
FI
FR
HR
HU
IT
LT
LV
NL
NO
PL
PT
RO
RU
SE
SK
29
UPONOR SMATRIX BASE/BASE PRO · INSTALLATION AND OPERATION MANUAL
