Uponor Smatrix Base User Manual

Conne Ct heating/Cooling inPut to Controlle r
(oPtional)
If the system is contain a product producing cooling,
the controller can switch between heating and cooling
by using the heating/cooling input.
The heating/cooling input is connected to a dry contact
that functions as either an auxiliary control system or
two-position relay.
• When the relay is open, the system is in heating
mode.
• When the relay is closed, the system is in cooling
mode.
The heating/cooling switch can be connected and
controlled in several different ways, depending on the
system. Use only one of the following:
Uponor Smatrix Base system:
• Use an input:
Connect the input to the controller. Switch mode
using a switch on the wall or a heat pump.
Uponor Smatrix Base PRO system:
• Use an input:
Connect the input to either the controller. Switch
mode using a switch on the wall or a heat pump.
• Use an output on a sub controller and the interface
to switch mode:
Connect the heating/cooling relay to an output on
a sub controller. Use the interface to set heating or
cooling mode.
• Use a supply temperature sensor
Connect a supply temperature sensor to a public
thermostat. Use the interface to switch between
heating and cooling using the supply temperature.
Caution!
To avoid damaging the equipment, do not
apply a voltage across the controller heating/
cooling input.
For further information, see the heating/cooling relay
documentation.
To connect a heating/cooling input to the
controller:

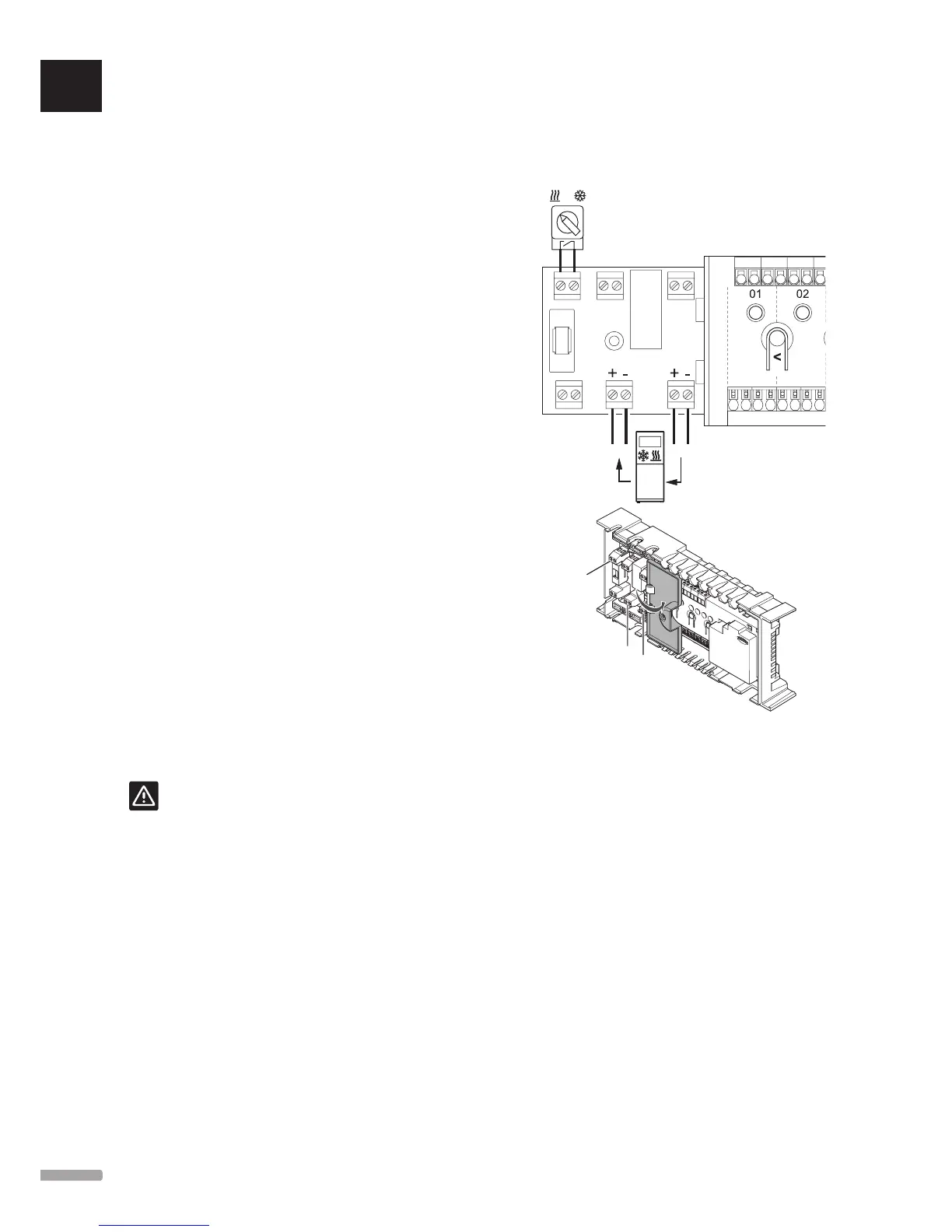

The illustration below shows components of the
heating/cooling system connected to a controller.
GPI
IN OUT
GPI
OUT
IN
UK
CZ
DE
DK
EE
ES
FI
FR
HR
HU
IT
LT
LV
NL
NO
PL
PT
RO
RU
SE
SK
32
UPONOR SMATRIX BASE/BASE PRO · INSTALLATION AND OPERATION MANUAL
