Uponor Smatrix Base User Manual

Conne Ct CaBle to star mod ule
1
2
3
1
+-
+-
B
AB
A

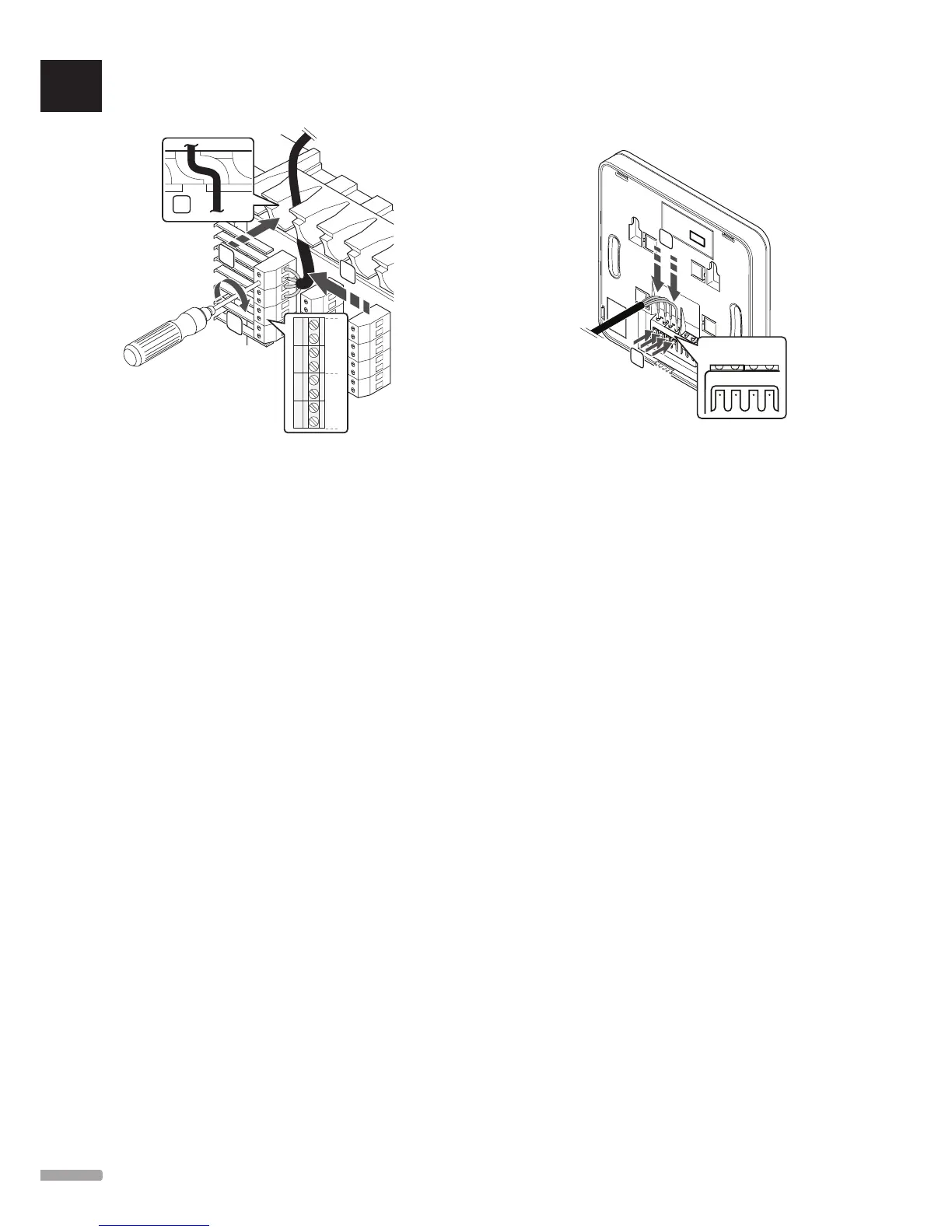

To connect a communication cable to a star module:
1. Lead the cables through cable entries in the star
module frame.
2. Insert the four wires (A,B, + and -) into the
connector on the electrical card.
3. Tighten the screws fixing the wires in the connector.
Conne Ct Commun iCation CaBl e to thermostat
t-149
1
2
+-AB
To connect a communication cable to thermostat T-149:
1. Press the push button on the connection terminal
on the back of the thermostat.
2. While pressing the push button, insert each of
the four wires into the connection terminal on the
thermostat (marked A,B, + or -).
3. Repeat steps 1 and 2 until all wires are connected.
UK
CZ
DE
DK
EE
ES
FI
FR
HR
HU
IT
LT
LV
NL
NO
PL
PT
RO
RU
SE
SK
42
UPONOR SMATRIX BASE/BASE PRO · INSTALLATION AND OPERATION MANUAL
