Uponor Smatrix Base User Manual

relativ e humidity
45.0
A B
Pos. Icon Description
A
Relative humidity level
B
Relative humidity reading using two
digital characters. Indicated with a “%”
character
therm ostats t-146 and t-149

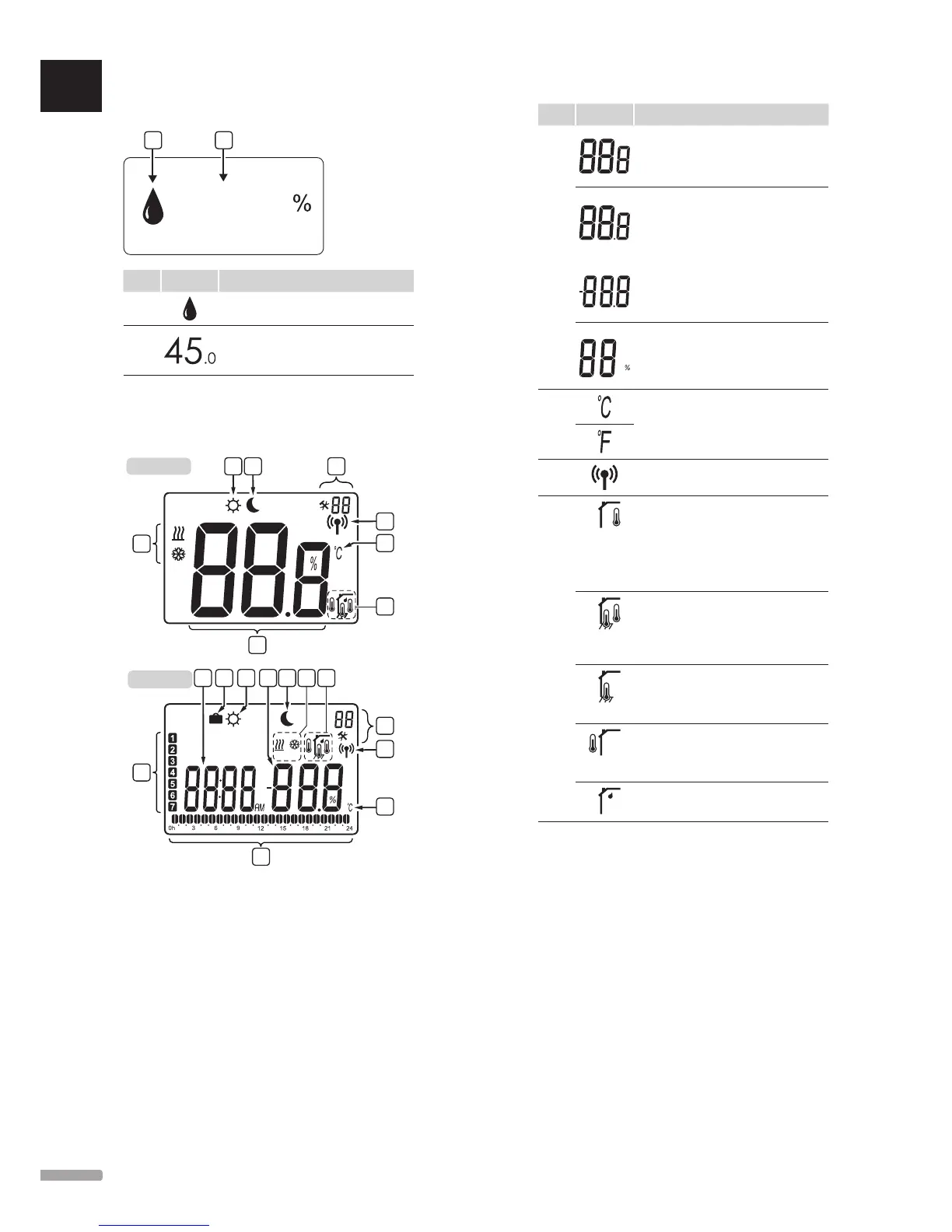

The figure below shows all possible symbols and
characters that can be shown on the display:
A
D
B
C
EG H
F
T-146
K
B
C
E
DF
J
I HA
T-148
GL
Pos. Icon Description
A
T-146 only
Message field using three
alphanumerical characters
T-146
T-148
Temperature reading using a - or + sign,
two digital characters, a decimal point
and a character showing either 0 or 5
T-148
Relative humidity reading using two
digital characters. Indicated with a “%”
character
B
Temperature unit, shown when the
character group A shows a temperature
C
Communication indicator
D
Indoor temperature indicator
Remote sensor temperature indicator
(RS mode)
The text Err and a flashing sensor icon
indicates a faulty sensor
Indoor temperature with floor
temperature limitation indicator
The text Err and a flashing floor sensor
icon indicates a faulty sensor
Floor temperature indicator
The text Err and a flashing floor sensor
icon indicates a faulty sensor
Outdoor temperature indicator
The text Err and a flashing outdoor
sensor icon indicates a faulty sensor
T-148 only
Relative humidity limit reached
UK
CZ
DE
DK
EE
ES
FI
FR
HR
HU
IT
LT
LV
NL
NO
PL
PT
RO
RU
SE
SK
78
UPONOR SMATRIX BASE/BASE PRO · INSTALLATION AND OPERATION MANUAL
