USAutomatic PATRIOT I - Actuator Mounting Bracket Methods (Columns)

14

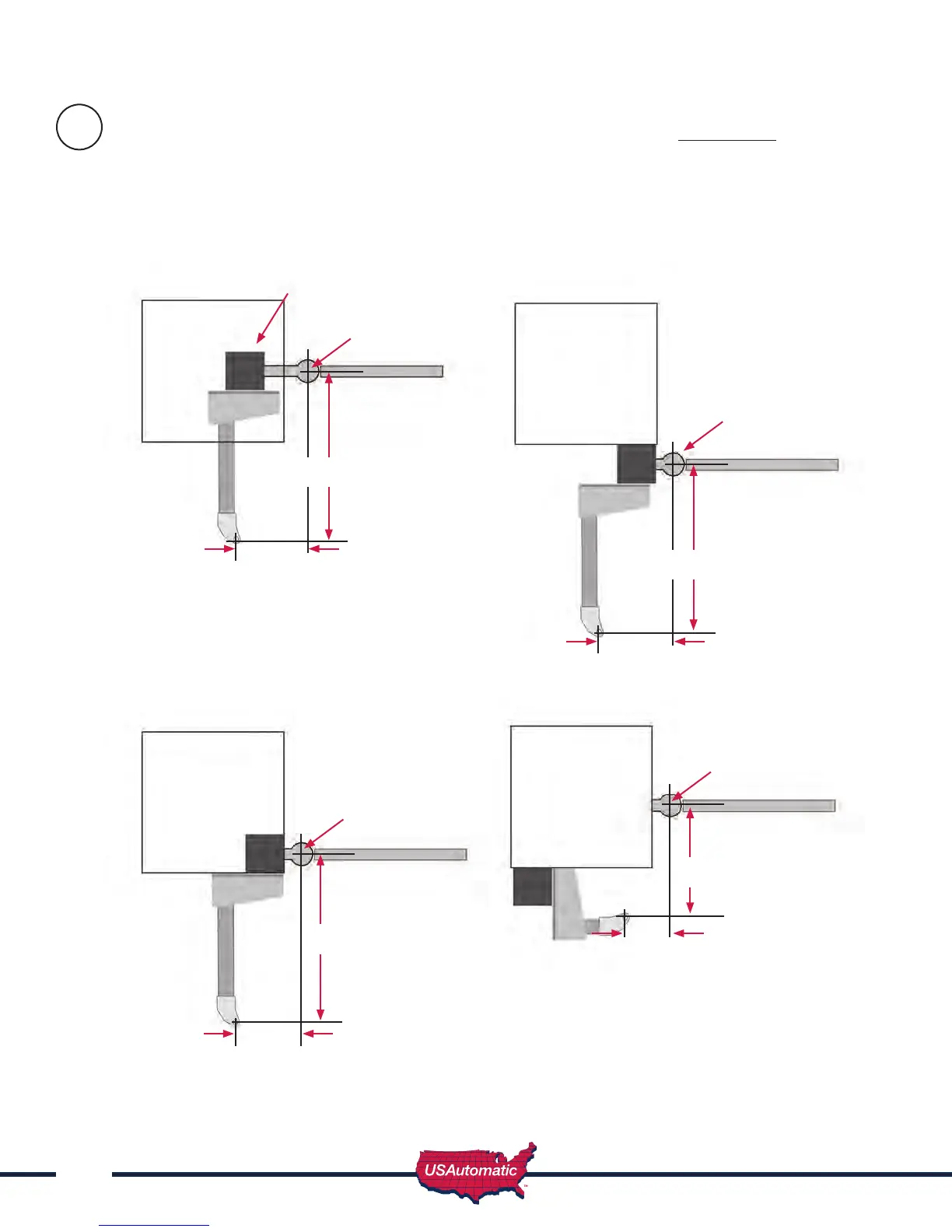

Determine Best Method for Actuator Mounting Brackets - COLUMNS
Dimensions shown are for 90° - 95° opening.
New Construction Existing Columns
13” standard for 90°. Can be up to 16” if
required for actuator to clear column.
Set hinge post
in corner
Set hinge post
behind column
center of hinge
center of hinge
center of hinge
center of hinge
Post set behind
column
Thick wall post inside
column. Welded prior
to column construction
Alternative Methods
6”
6”
6”
6”
13”
13”
13”
13”
4c
