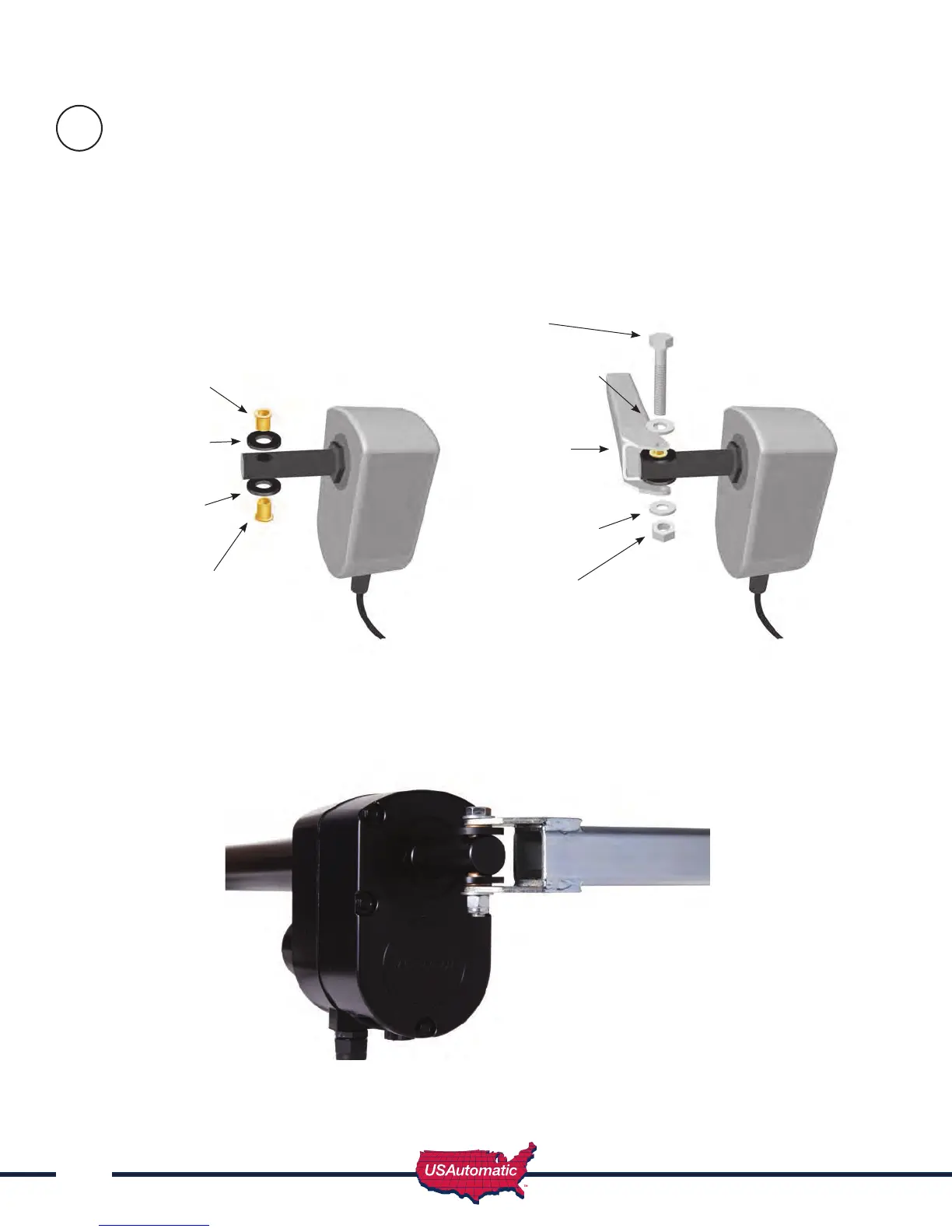

Install Linear Actuator to Actuator Mounting Bracket

The linear actuator should be mounted to the actuator mounting bracket using the provided hardware.

Assemble as shown below. Tighten lock nut securely.

Note: The linear actuator may be installed UPSIDE down to facilitate limit adjustments at this point.

Then after all adjustments have been made, install linear actuator correctly with cable pointing toward

the ground. Failure to do so will allow water to enter the rear housing and damage the limit

assembly.

⅜” Bolt

Part # 610512

⅜” SAE Flat Washer

Part #610516

Mounting Tube

Part # 610102

⅜” SAE Flat Washer

Part #610516

⅜ inch Lock Nut

Part # 610518

Bronze Bushing

Part # 610530

Nylon Washer

Part # 610529

Nylon Washer

Part # 610529

Bronze Bushing

Part # 610530
