USAutomatic PATRIOT I - Transmitter and Receiver Programming

37
Programming Transmitter and Receiver
Operating frequency 433.92 MHz.
Receiver can store up to 42 unique transmitter dipswitch code settings.

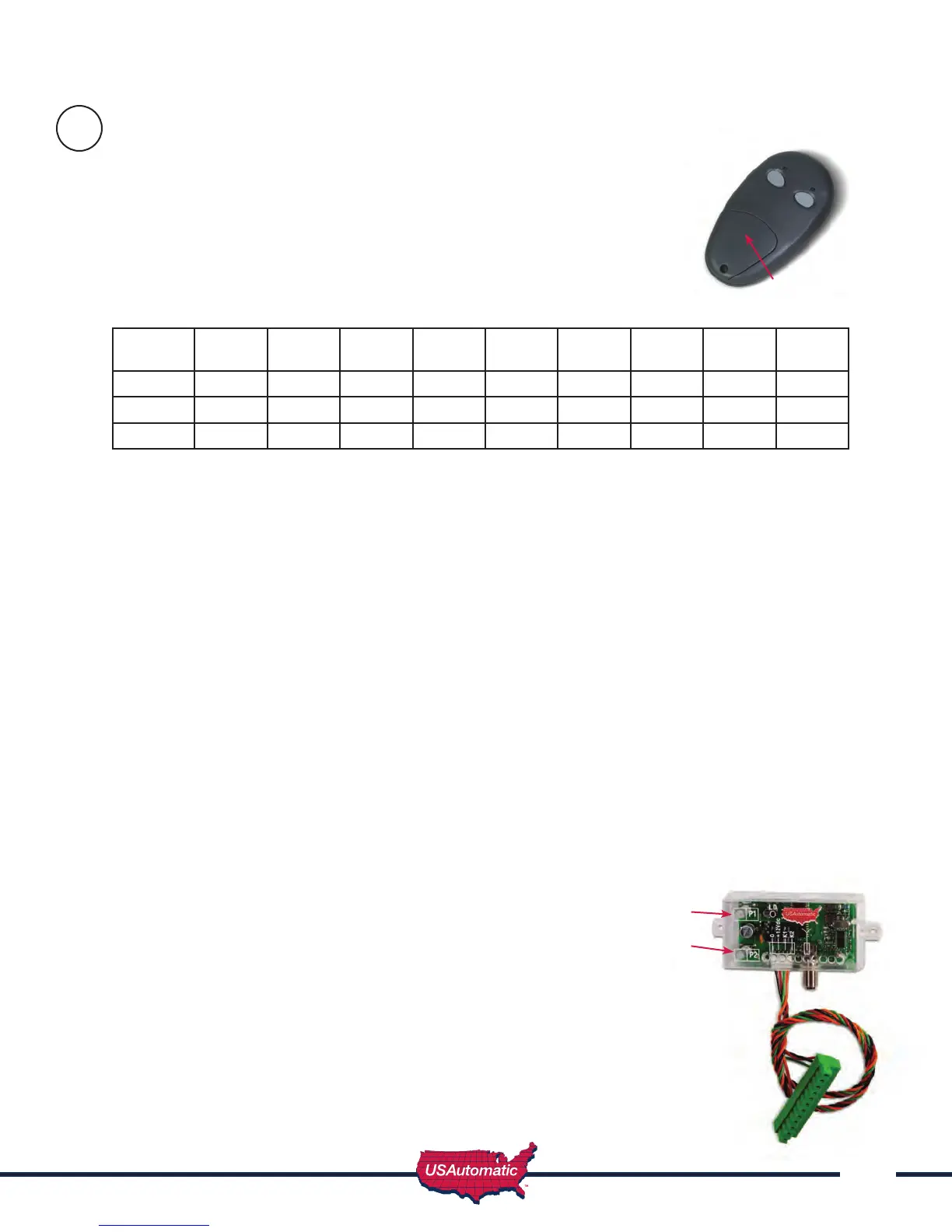

Transmitter Setup:
(It is recommended that the dipswitch code be changed from
the default factory setting)
1. Open the battery compartment door and locate the dipswitches.
2. Change the dipswitches to the settings you prefer, record for future reference
in the table below.
Switch
Position
Switch
1
Switch
2
Switch
3
Switch
4
Switch
5
Switch
6
Switch
7
Switch
8
Switch
9
+
0
-
Transmitter Left Button to Receiver Programming: (standard Open/Stop/Close function)
1. Press and hold the left transmitter button down. Red light on transmitter should be on.
2. On the receiver, push the P1 push-button until the green LD light comes on.
3. Release both buttons. Transmitter left button to receiver programming is complete.
Transmitter Right Button to Receiver Programming:
(Hold-Gate-Open) (Only if auto close timer is enabled)
1. The 2-channel receiver allows for programming the P2 relay
from momentary mode (default) to latching mode. Transmitter
right button can be programmed to hold gate open, over-riding
the auto-close feature if activated.
2. Press and hold the right transmitter button down.
Red light on transmitter should be on.
3. Press the P2 push-button until the green LD light comes on.
4. Release both buttons. Transmitter right button to receiver programming is complete.
Receiver Programming: Relay P2 programming from momentary to latching mode (to hold gate open)
1. Press the P2 push-button until the green LD light comes on, then release. Green LD light
should be steady.
2. While the green LD light is on, push the P1 push-button down and release. Green LD light should be
ashing. Latching mode is set.
Verifying Receiver P2 relay is programmed to latching mode:
1. Press the P2 push-button until the green LD light comes on, then
release.
2. Green LD light should be ashing. If green LD light is steady, redo
the Receiver Programming section above.
Resetting receiver P2 relay to momentary mode:
1. Press the P2 push-button until the green LD light comes on, then
release. Green LD light should be ashing.
2. While the LD light is ashing, push the P1 push-button down and
release. Green LD light should be steady. Momentary mode is set.
Battery
Compartment
Door
P1 Button
P2 Button
