Install Smart Charger / Charge Controller
Power Source (AC or Solar)
The Patriot gate operator’s battery is charged by the USAutomatic smart charger / charge controller.
The USAutomatic smart charger / charge controller can be powered by an AC transformer supplied
with Patriot AC Models OR a solar panel supplied with Patriot Solar models. The AC Transformer
and the Solar Panel are equipped with a DC plug for easy connection to the smart charger / charge
controller.

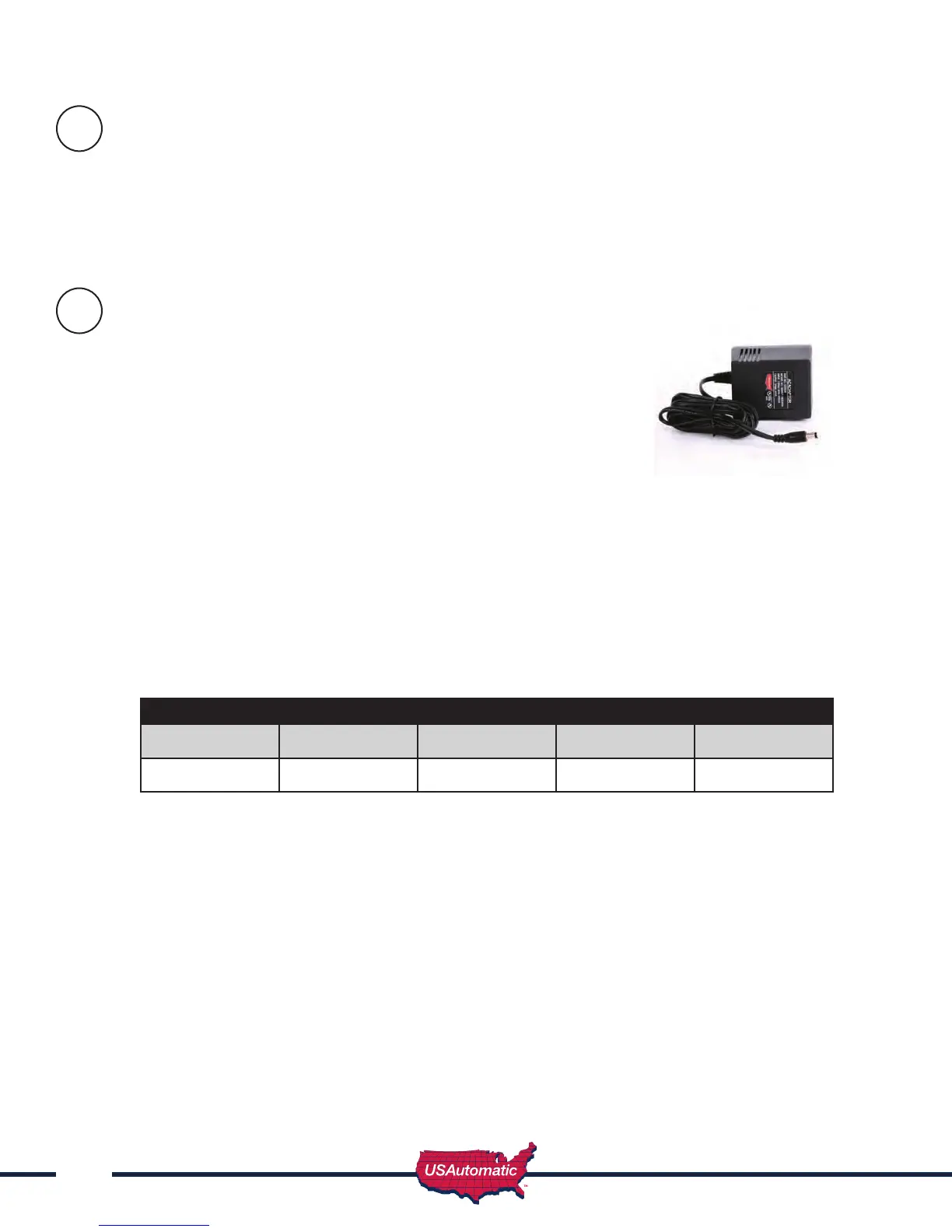

Patriot AC Charged System
The AC model Patriot gate operator comes with a low voltage
transformer which plugs into the charge controller and can easily
provide 575 cycles of operation a day without decreasing the battery
charge. In the event AC power goes out the operator will operate for
weeks on the battery (if cycles per day are below 20) before needing
service. Again, accessories connected to the operator are critical.
Always use Solar Friendly accessories to help avoid premature battery
failure in cases of power outages.
The unique design of the charging system allows the transformer to be installed away from the gate
area if needed. This means that on AC charged systems, the transformer’s low voltage wire can be
extended avoiding the expense of having an electrician install 120 VAC at the gate area.
Refer to the AC power source cable extension chart below for the exact wire size to be used.
NOTE: AC Transformers are not designed to get wet. Likewise, all splices should be made in a dry
enclosure or outdoor box. For convenience use the USAutomatic Charge Cable Extension Pigtails
PN #630038.
Transformer Extension Wire Size
0 to 100 feet 101 to 250 feet 251 to 500 feet 501 to 750 feet 750 to 1000 feet
18 gauge wire 16 gauge wire 14 gauge wire 12 gauge wire 10 gauge wire
NOTE: USAUTOMATIC RECOMMENDS A SURGE PROTECTOR ON ALL AC
CHARGED INSTALLATIONS.
