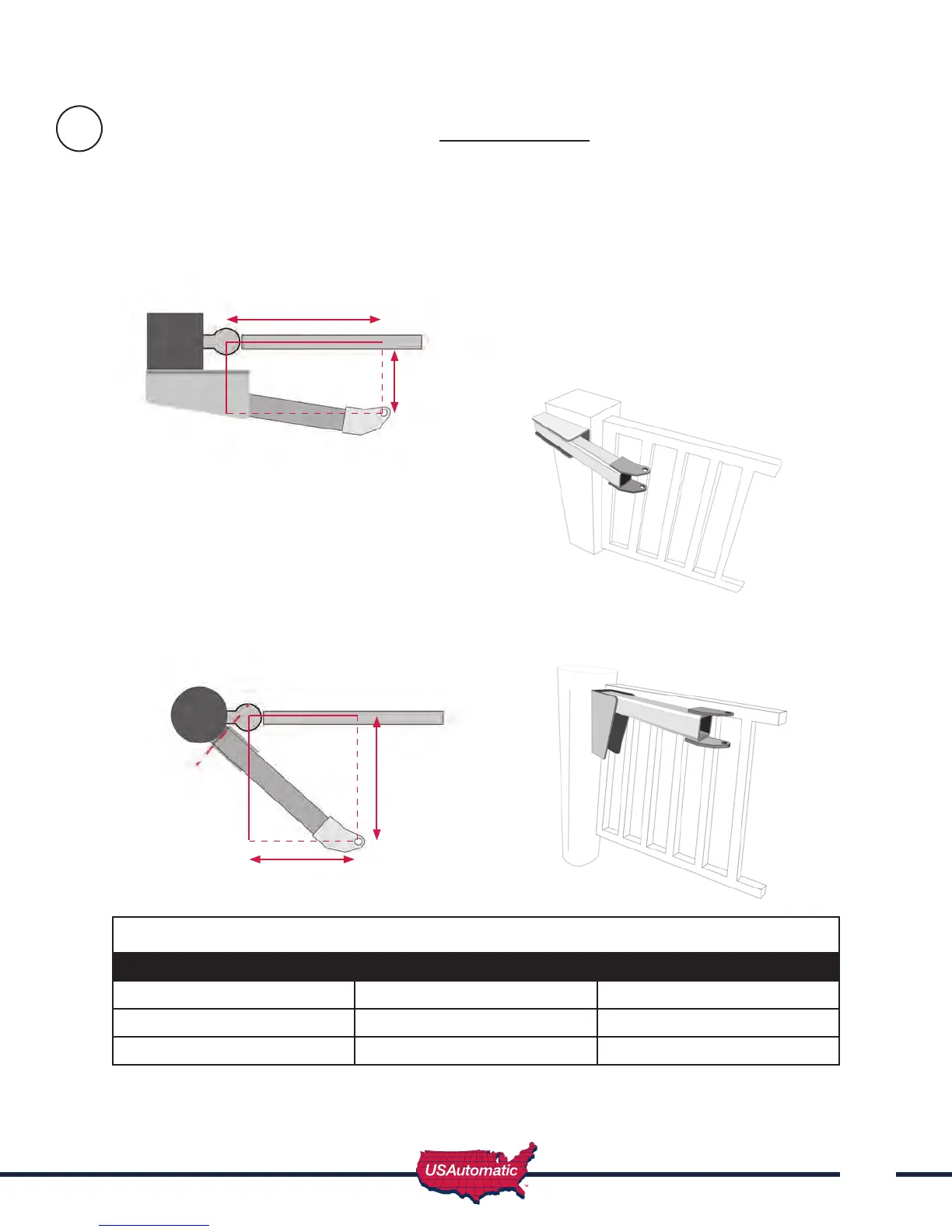

Install Actuator Mounting Tube - PUSH TO OPEN
Cut Actuator Mount Tube to proper length. Weld to support bracket.
(See table below for desired dimensions.)
The actuator mounting tube will need to be cut so that the ⅜” hole location matches the dimensions
for a push to open system.
Before welding in place, ensure the actuator
mounting tube is level in all directions and ⅜”
pivot hole location on actuator mounting tube
is at proper point per the dimension chart for
the type of installation being performed.
Dim A
Dim B
Cut Line
PUSH TO OPEN - Actuator Hinge Mounting Tube Installation Dimensions
Gate opening in degrees Dimension A Dimension B
90 degree opening 11” 6”
100 degree opening 13” 6”
110 degree opening 14.5” 6”
6b
* Dimensions shown are
for 90° - 95° opening.
11”
Dim A
6”
Dim B
