USAutomatic PATRIOT I - 6 Installing Actuator Mounting Tube - Pull to Open

16
Dim A
Dim B
Cut Line Center of
Hinge
Center of Hinge
Cut Line

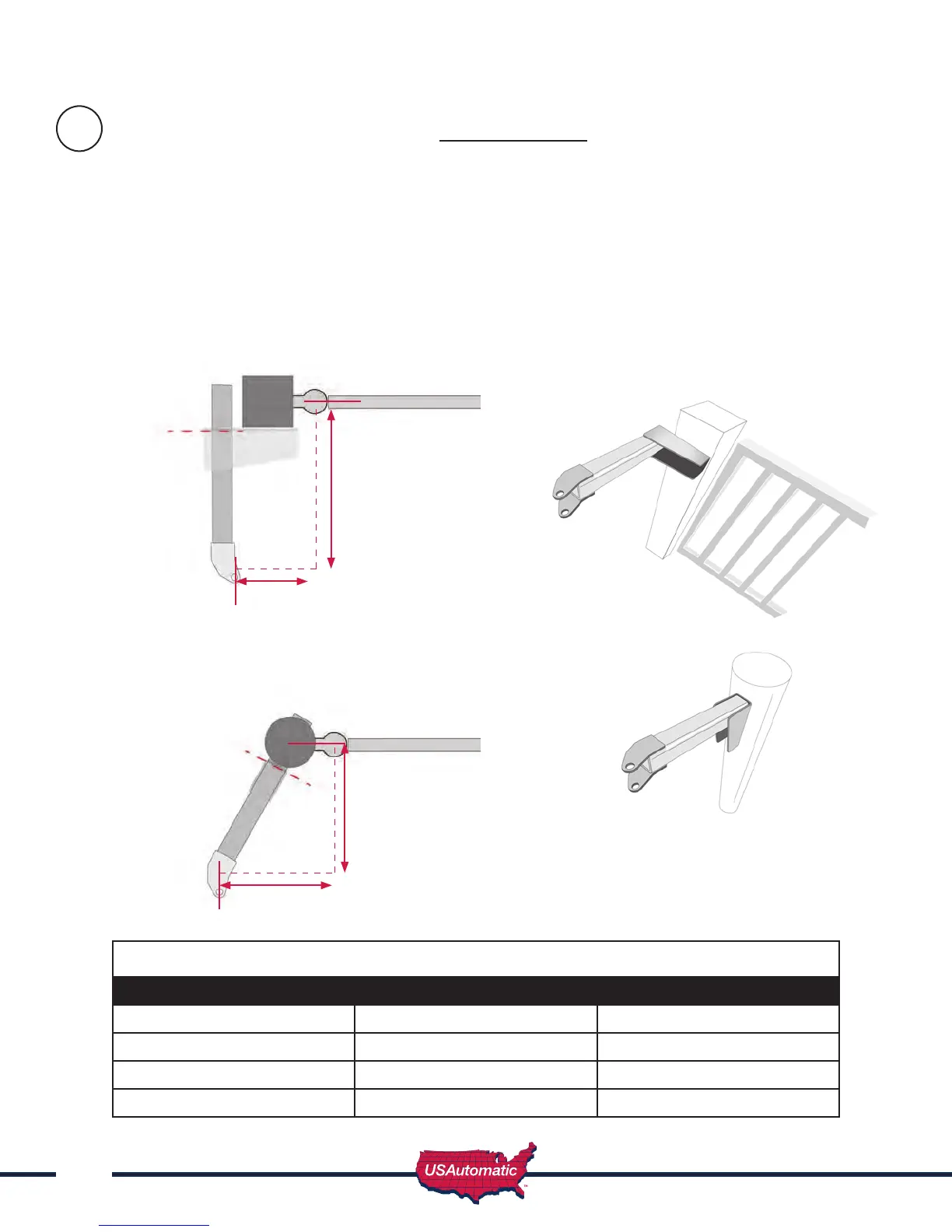

Install Actuator Mounting Tube - PULL TO OPEN
Cut Actuator Mount Tube to proper length. Weld to support bracket.
(See table below for desired dimensions.)
The actuator mounting tube will need to be cut so that the ⅜” hole location matches the dimensions
for a pull to open system.
Before welding in place, ensure the actuator mounting tube is level in all directions and the ⅜” pivot
hole location on actuator mounting tube is at proper point per the dimension chart for the type of
installation being performed.
PULL TO OPEN - Actuator Hinge Mounting Tube Installation Dimensions
Gate opening in degrees Dimension A Dimension B
90 degree opening 6” 13”
100 degree opening 7 ½” 12”
110 degree opening 9” 10 ½”
120 degree opening 11” 8”
6a
6”
Dim A
13”
Dim B
* Dimensions shown are
for 90° - 95° opening.
