58
A1 USER MANUAL

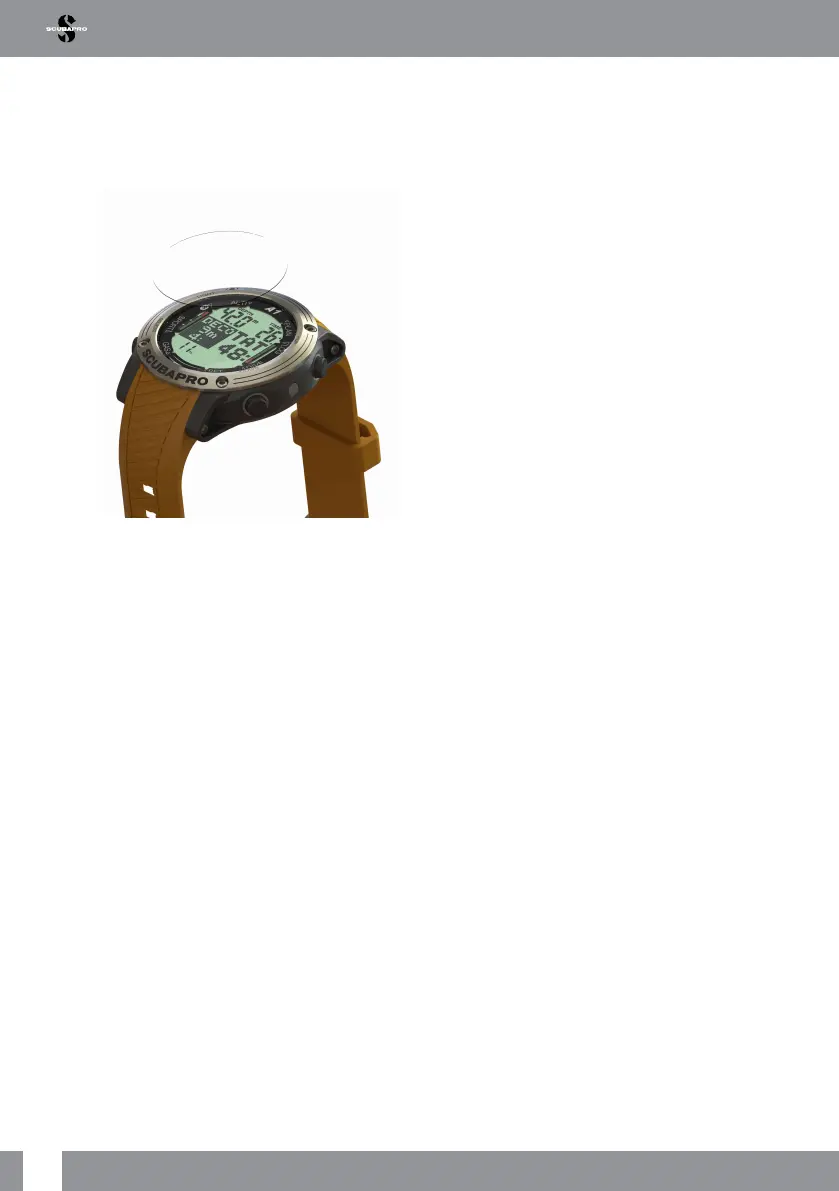

6.2 Display protection foil
You can protect your A1’s glass face with a
SCUBAPRO display guard. This foil can be
easily replaced if damaged.
F
NOTE: If air bubbles get stuck
underneath the protection foil when
placing it on your A1’s glass face, do
not try to remove them as the water
pressure will eliminate them after the
rst dive.
6.3 Technical information
Operating altitude:
Sea level to approximately
4000m/13300ft.
Max operating depth:
120m/394ft; resolution is 0.1m until
99.9m, and 1m at depths deeper than
100m. Resolution in feet is always 1ft.
Accuracy complies with EN13319 and
ISO 6425.
Decompression calculation range:
0.8m to 120m / 3ft to 394ft.
Clock:
Quartz clock; time, date, dive time
displays up to 99 minutes and 59
seconds, and in minute steps up to
999 minutes.
Oxygen concentration:
Adjustable between 21% and 100%.
Operating temperature:
-10C to +50C / 14F to 122F.
Power supply:
Lithium type CR2450 battery.
Operation time with a fresh battery:
Up to 2 years. Actual battery operation
time depends primarily on the
operational temperature and backlight
settings, but also on many other
factors.
Bluetooth
®
transceiver:
Operating frequency 2402-2478 MHz,
max power < 3 dBm, connection
range approx. 2m.
