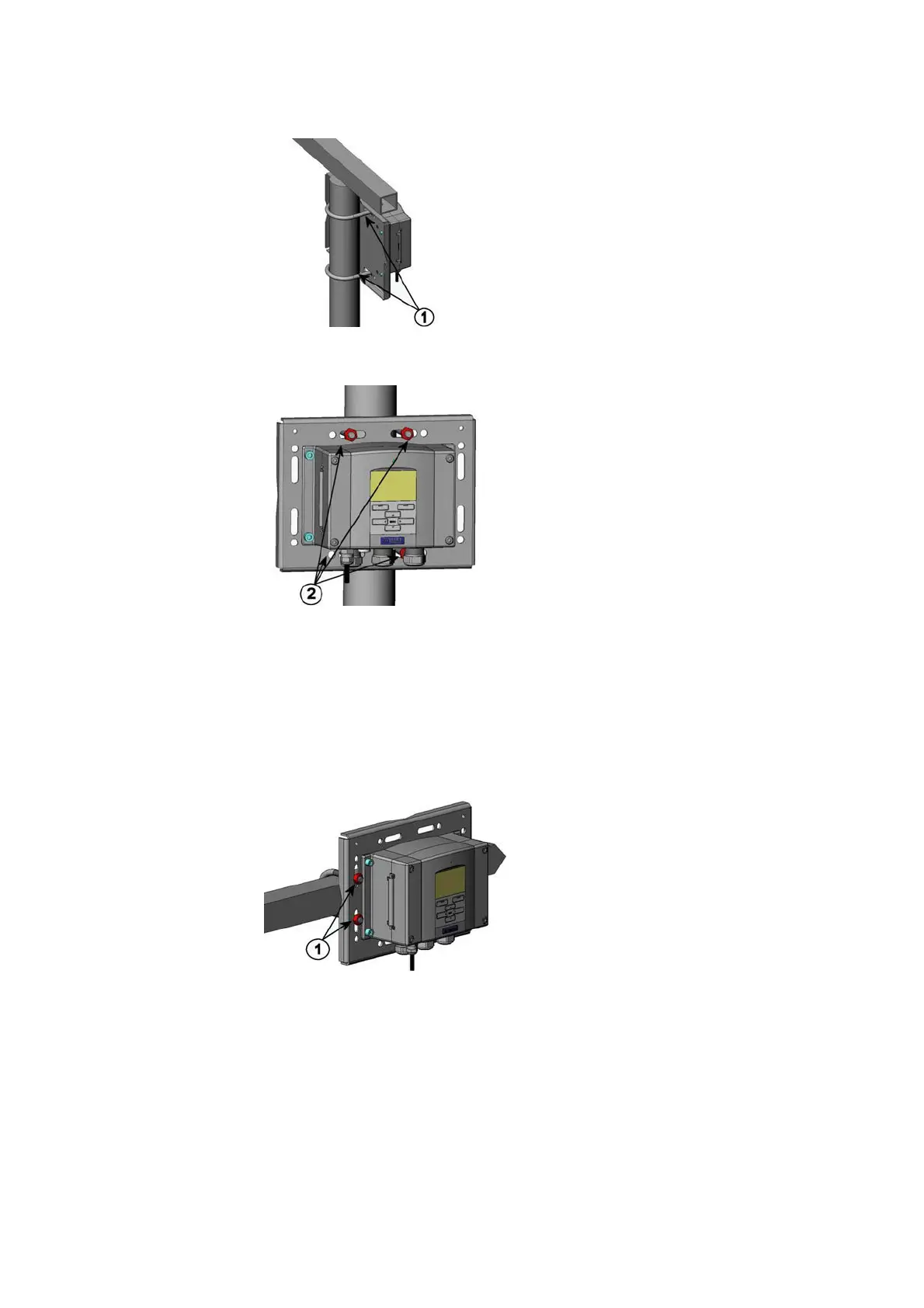

Figure 7 Vertical Pole (Side)
Figure 8 Vertical Pole (Front)
Numbers refer to Figure 8 above:
1 = Fixing brackets (2 pcs) M8 (provided) for 30 ... 102 mm
poles.
2 = Mounting nuts M8 (4 pcs)
Figure 9 Horizontal Pole
Number refers to Figure 9 above:
1 = Mounting nuts M8 (4 pcs)
