User's Guide _______________________________________________________________________
12 ___________________________________________________________________ M211510EN-E
Transmitter Parts – Duct Models
1302-018

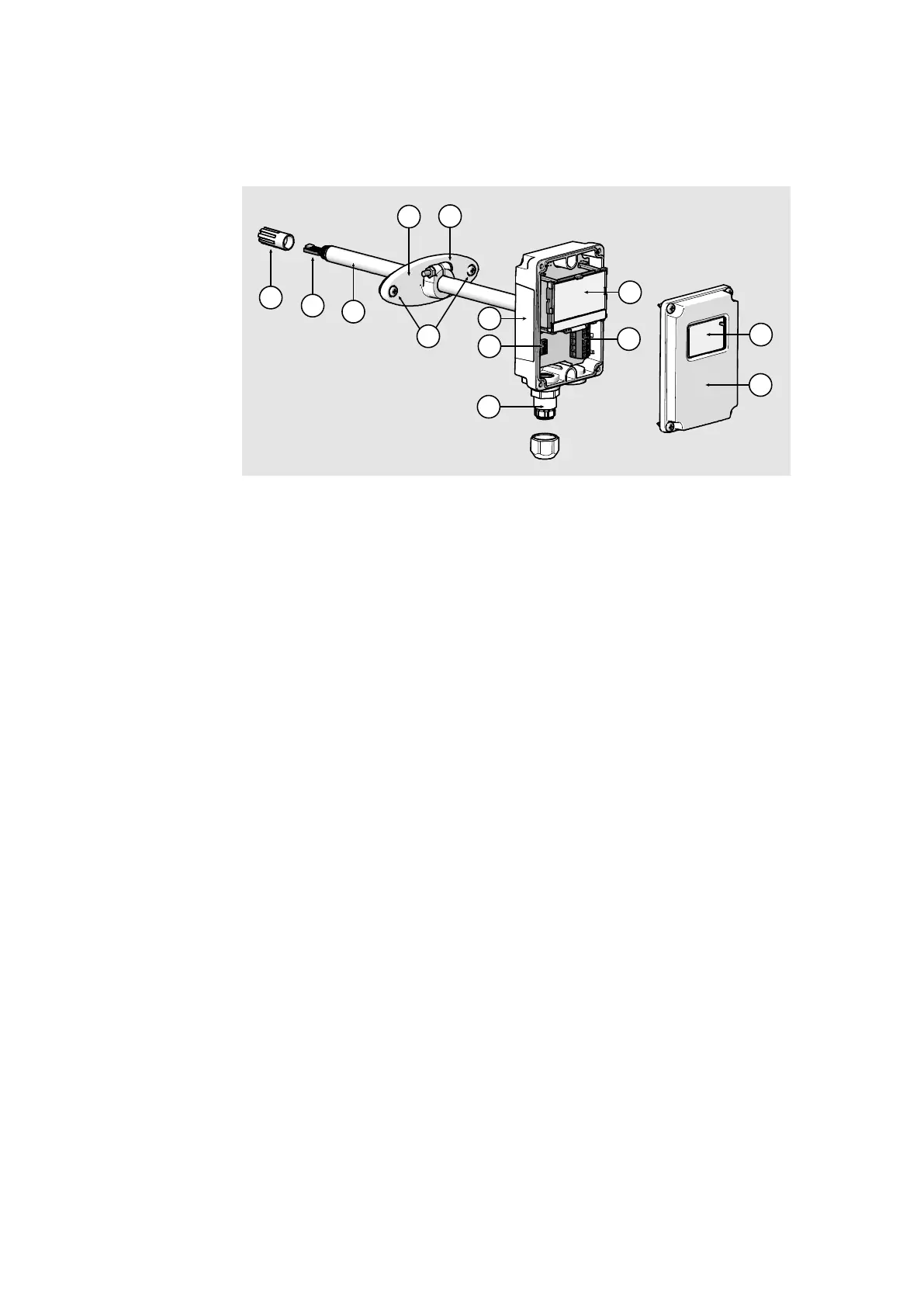

Figure 1 Parts of Duct Mounted Models (HMD82/83 and
TMD82/83)
1
=
PTFE membrane filter (spare part item ASM210856SP).
2
=
INTERCAP
®
humidity sensor and temperature sensor.
Not included in TMD82 and TMD83 models.
3
=
Probe.
4
=
Fastening flange.
5
=
Tightening screw for fastening flange.
6
=
Screws for attaching the flange to a duct (2 pcs included).
7
=
Type label.
8
=
DIP switches for selecting humidity parameter and display units.
Not included in TMD82 and TMD83 models.
9
=
Cable gland. Suitable for 4 ... 8 mm diameter cable.
10
=
Display (in HMD82D and HMD83D models).
11
=
Screw terminals.
12
=
Window for display (in HMD82D and HMD83D models).
13
=
Transmitter cover with captive screws.
5
1
2
6
4
7
8
9
11
12
13
3
10
