Vaisala INTERCAP HMDW80 Series User Manual

Chapter 2 ___________________________________________________________ Product Overview
VAISALA ________________________________________________________________________ 15
Transmitter Parts – Outdoor Models
1304-048

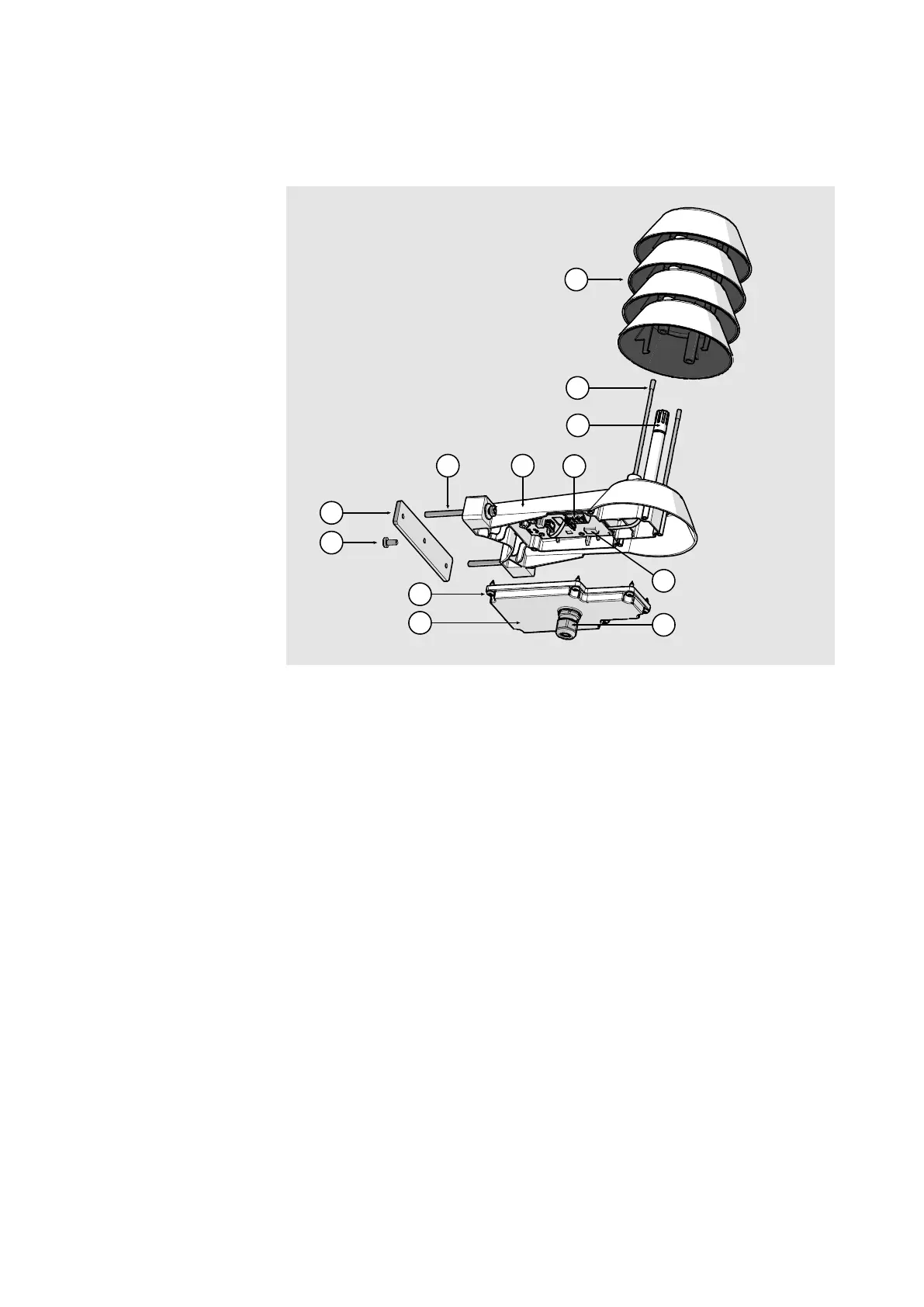

Figure 4 Parts of Outdoor Models (HMS82/83, TMS82)
1
=
Radiation shield. Do not remove for installation, only when
changing sensor or filter.
2
=
Long screws that keep the radiation shield in place (2 pcs),
3 mm hex socket.
3
=
INTERCAP
®
humidity sensor and temperature sensor under
PTFE membrane filter (filter spare part item ASM210856SP).
4
=
Screw terminal. Detachable for easy installation.
5
=
Transmitter body.
6
=
Screws for pole mounting (2 pcs), medium size crosshead type
(Pozidriv).
7
=
Clamp for pole mounting. The holes are threaded for the included
pole mounting screws and set screw.
8
=
Set screw, medium size crosshead type (Pozidriv).
Install after pole mounting to stop the transmitter from turning.
9
=
Medium size crosshead screws (6 pcs) that hold the transmitter
cover in place.
10
=
Transmitter cover.
11
=
Cable gland. Suitable for 4 ... 8 mm diameter cable.
12
=
Configuration DIP switches. See section DIP Switches on page 31.
1
2
3
7
8
6
5
11
4
12
9
10
