Vaisala INTERCAP HMDW80 Series User Manual

User's Guide _______________________________________________________________________
28 ___________________________________________________________________ M211510EN-E

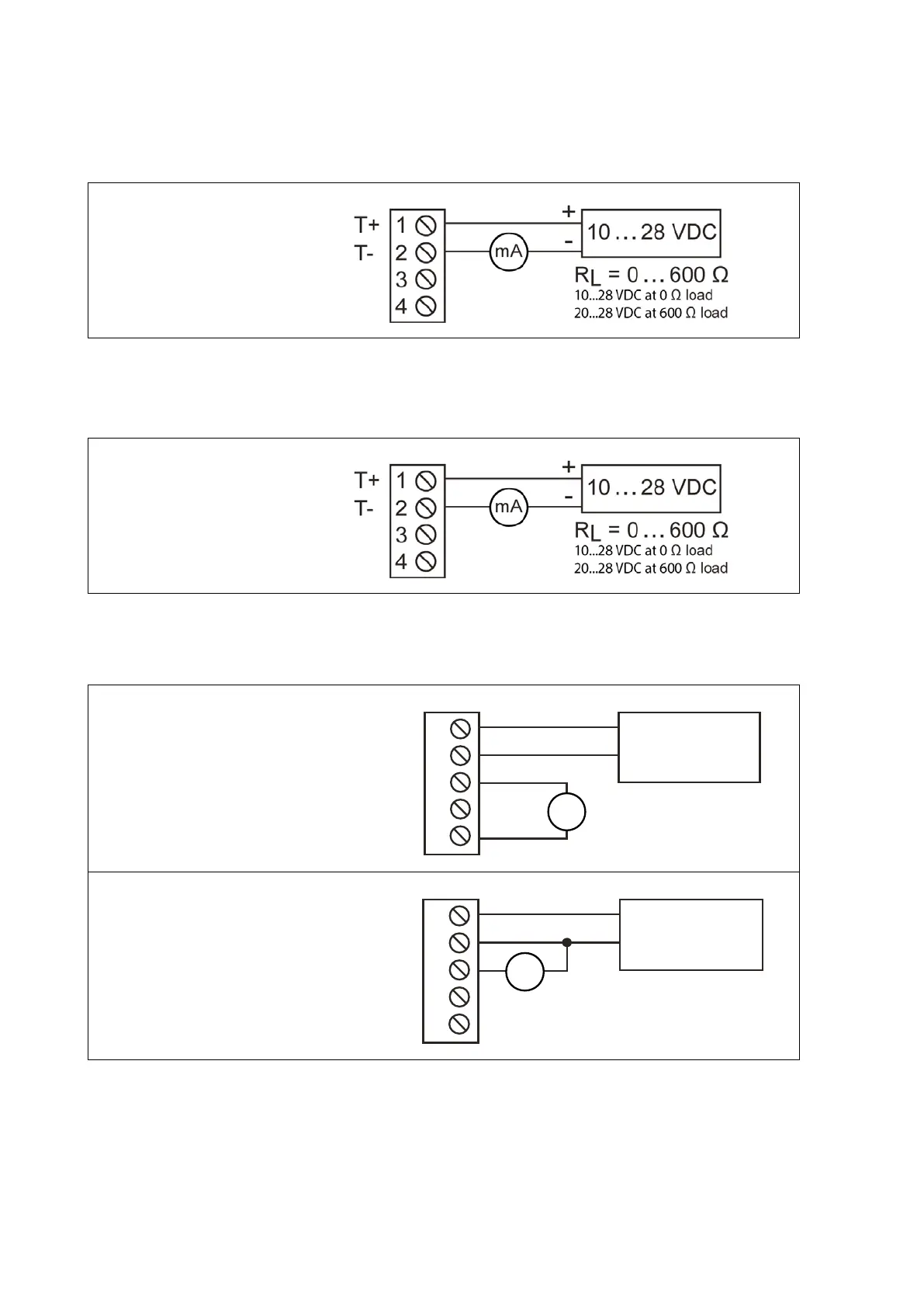

TMS82
4 ... 20 mA output,
scaling -40 ... +60 °C
(-40 ... +140 °F).
Leave terminals 3 and 4
unconnected.
TMD82
4 ... 20 mA output,
scaling -40 ... +60 °C
(-40 ... +140 °F).
Leave terminals 3 and 4
unconnected.
TMD83
One 0 ... 10 V output,
scaling -40 ... +60 °C
(-40 ... +140 °F).
Terminals 2 and 5 are
internally connected on
the transmitter, so you
can also use a cable with
three wires.
+
-
V
VDC-/AC
T+
HUM+
VDC+/AC
2
3
4
1
18...35 VDC
or 24 VAC
5
T-/HUM-
R
L
= min. 10 kΩ
+
-
V
VDC-/AC
T+
HUM+
VDC+/AC
2
3
4
1
18...35 VDC
or 24 VAC
5
T-/HUM-
R
L
= min. 10 kΩ
