User's Guide _______________________________________________________________________
20 ___________________________________________________________________ M211510EN-E
1302-026

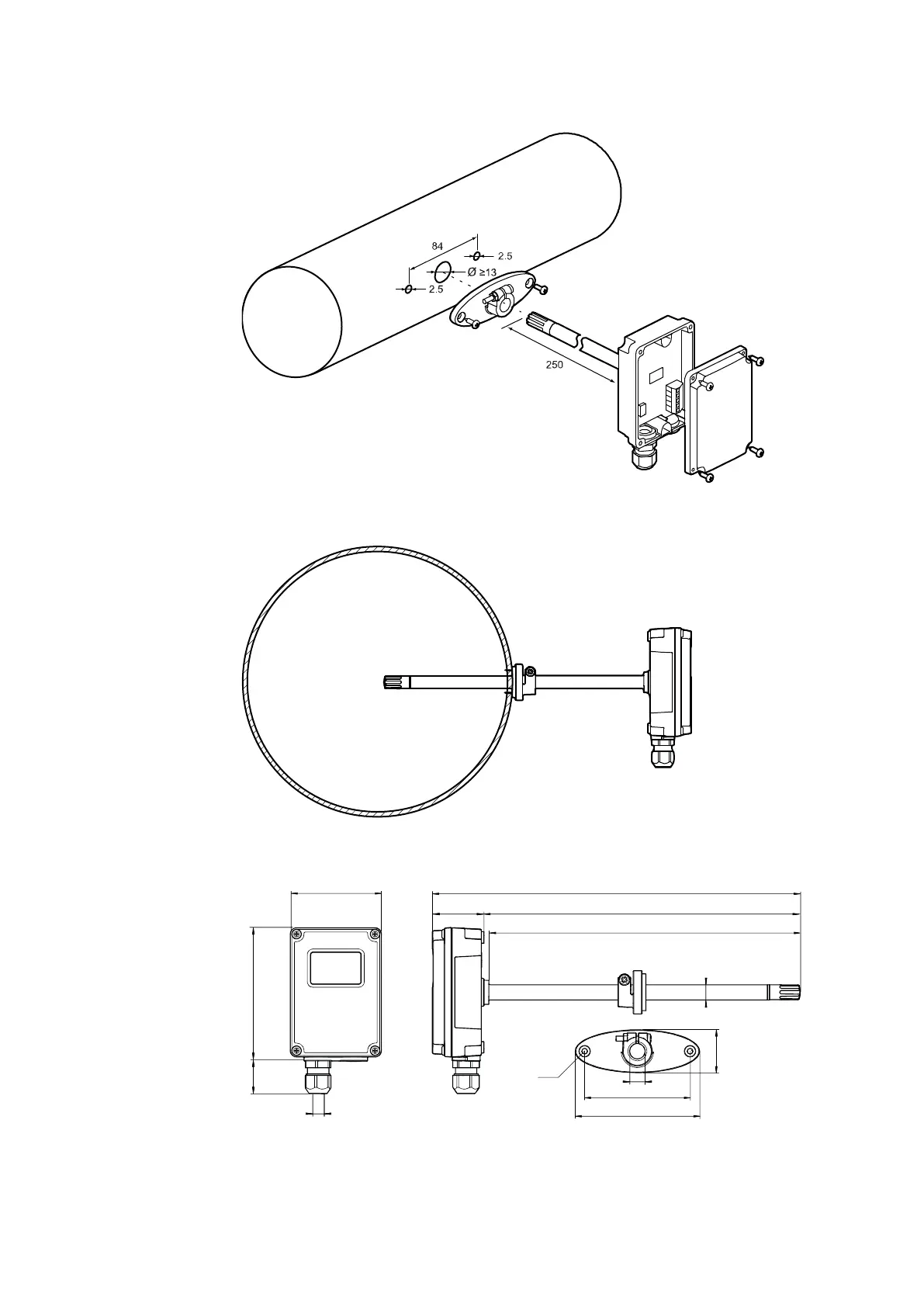

Figure 8 Duct Model Installation
1302-027
Figure 9 Position the Sensor to Center of Duct
1302-028
Figure 10 Duct Model Dimensions (HMD82/83 and TMD82/83)
99
290.8
250.240.6
72
Ø4...8
105
Ø3.5
Ø12
84
26
34
244.5
Ø12
