Chapter 3 ________________________________________________________________ Installation
VAISALA ________________________________________________________________________ 23
Installing Outdoor Models HMS82/83, TMS82
WARNING
Assess the risks posed by the height and accessibility of the installation
location, and plan your work so it is carried out safely. Try avoiding
work at height, if you can.
REQUIRED
TOOLS
- Medium size crosshead screwdriver (Pozidriv)
- Small slotted screwdriver for screw terminals.
- Tools for cutting and stripping wires.
- 19 mm open-end wrench for tightening the cable gland.
Additional tools for pole installation:
- Zip ties for securing the cable to the pole.
Additional tools for wall installation:
- Drill and bits.
- Screws (2 pcs, Ø < 5.5 mm) and wall plugs
- Cable clips for securing the cable to the wall.
1304-053

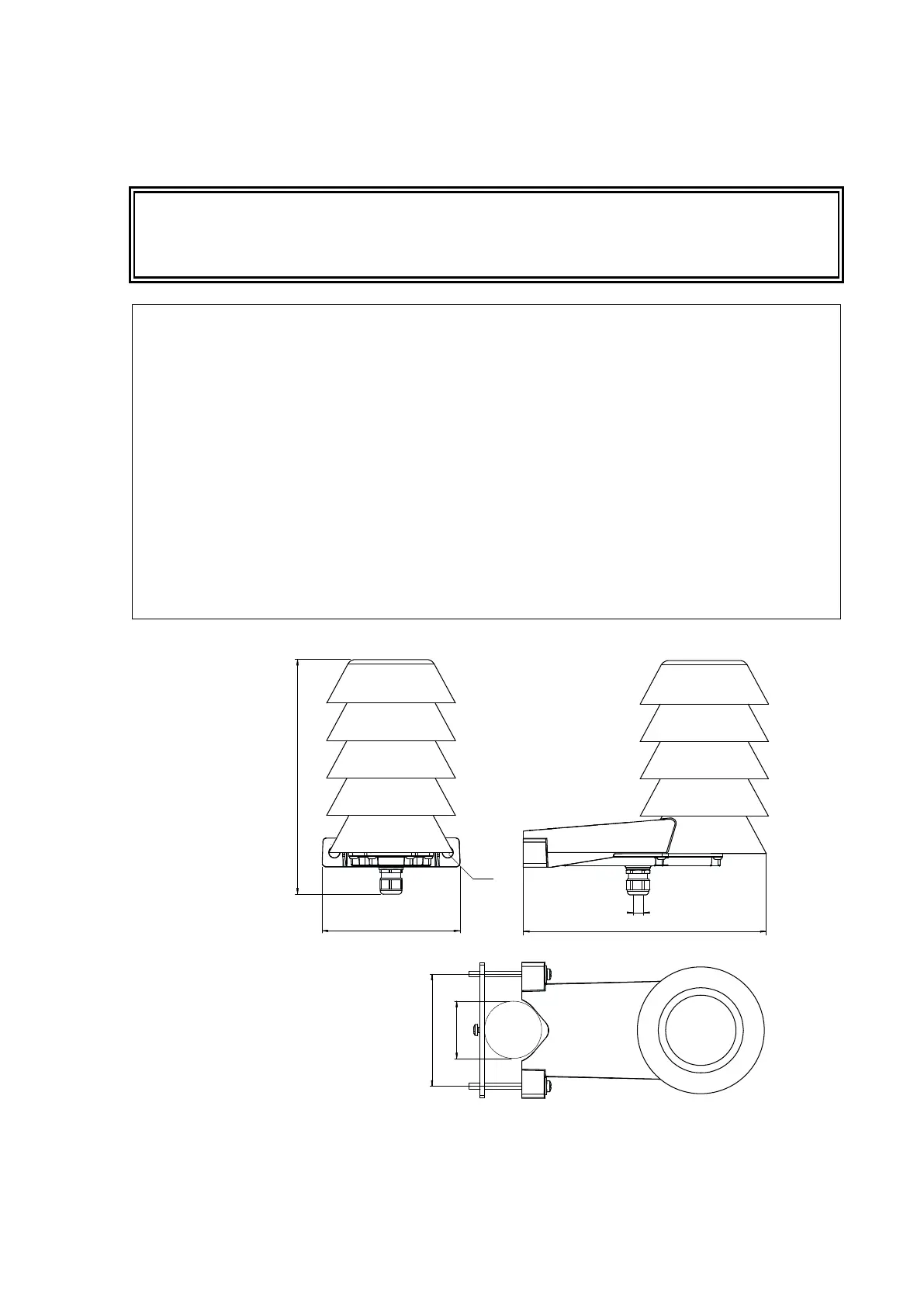

Figure 13 Outdoor Model Dimensions (HMS82/83, TMS82)
207
264.2
121.5
Ø5.5
Ø4...8
Ø25 ...60
100
