Establishing Terminal Connection
To connect your computer to a MAWS serial port, proceed as follows:
1. Connect the provided terminal cable (QMZ101) to the COM0
connector in the bottom plate of the tube and to an available
COM port on your PC. See Figure 98 below.
0201-044

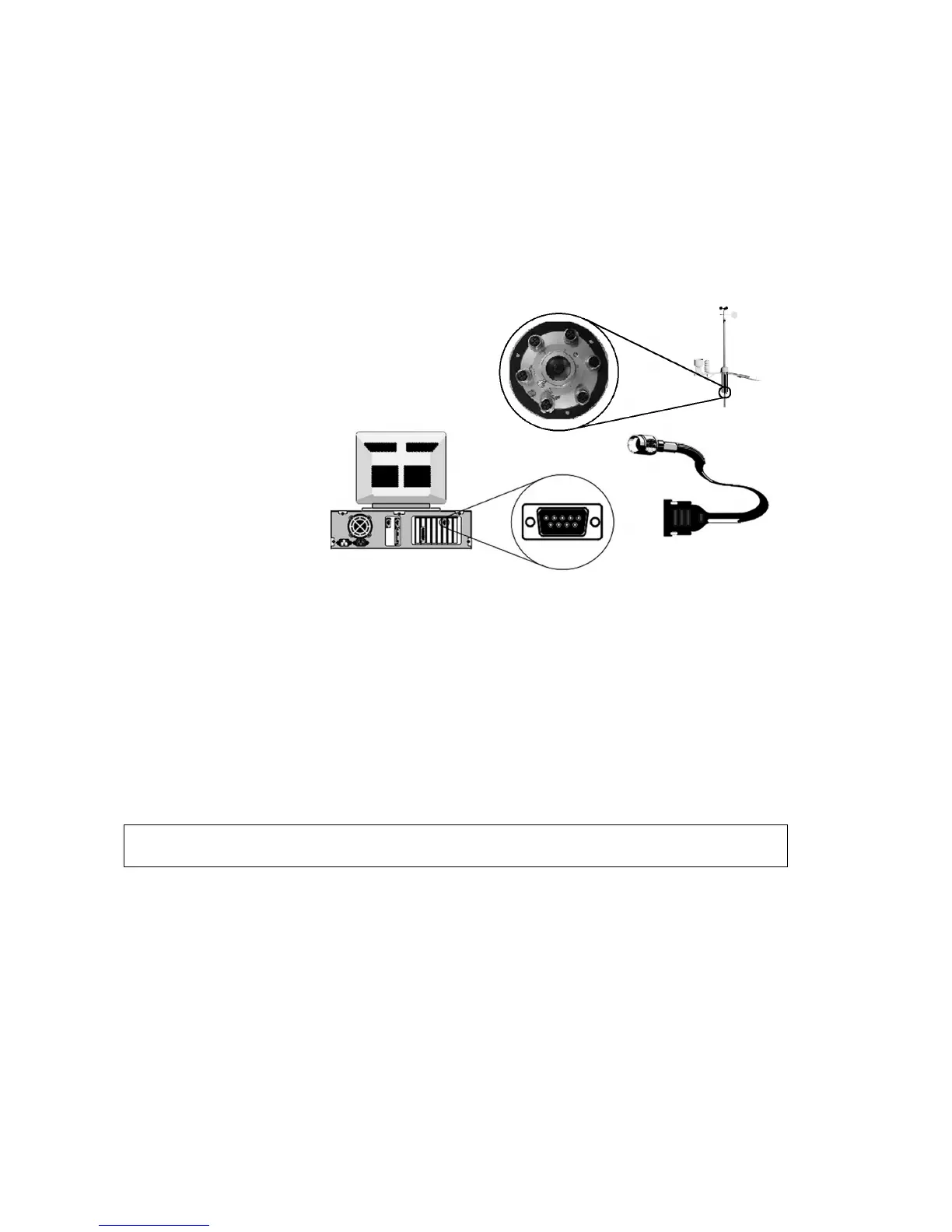

Figure 98 Connecting the Terminal Cable
2. Start MAWS Terminal program on your PC, as instructed in
section Using MAWS Terminal Software on page 105.
3. Set communication parameters: 9600, N, 8, 1.For more
information, see section Opening MAWS Service Connection
on page 110.
4. Give the command open (if the connection is not already open).
For more information, see section Giving Commands on page
112.
NOTE
The command open is not echoed on the screen.
Figure 99 on page 105 shows the pin order for the terminal connector.
