Chapter 3 ________________________________________________________________ Installation
VAISALA ________________________________________________________________________ 77
0201-035

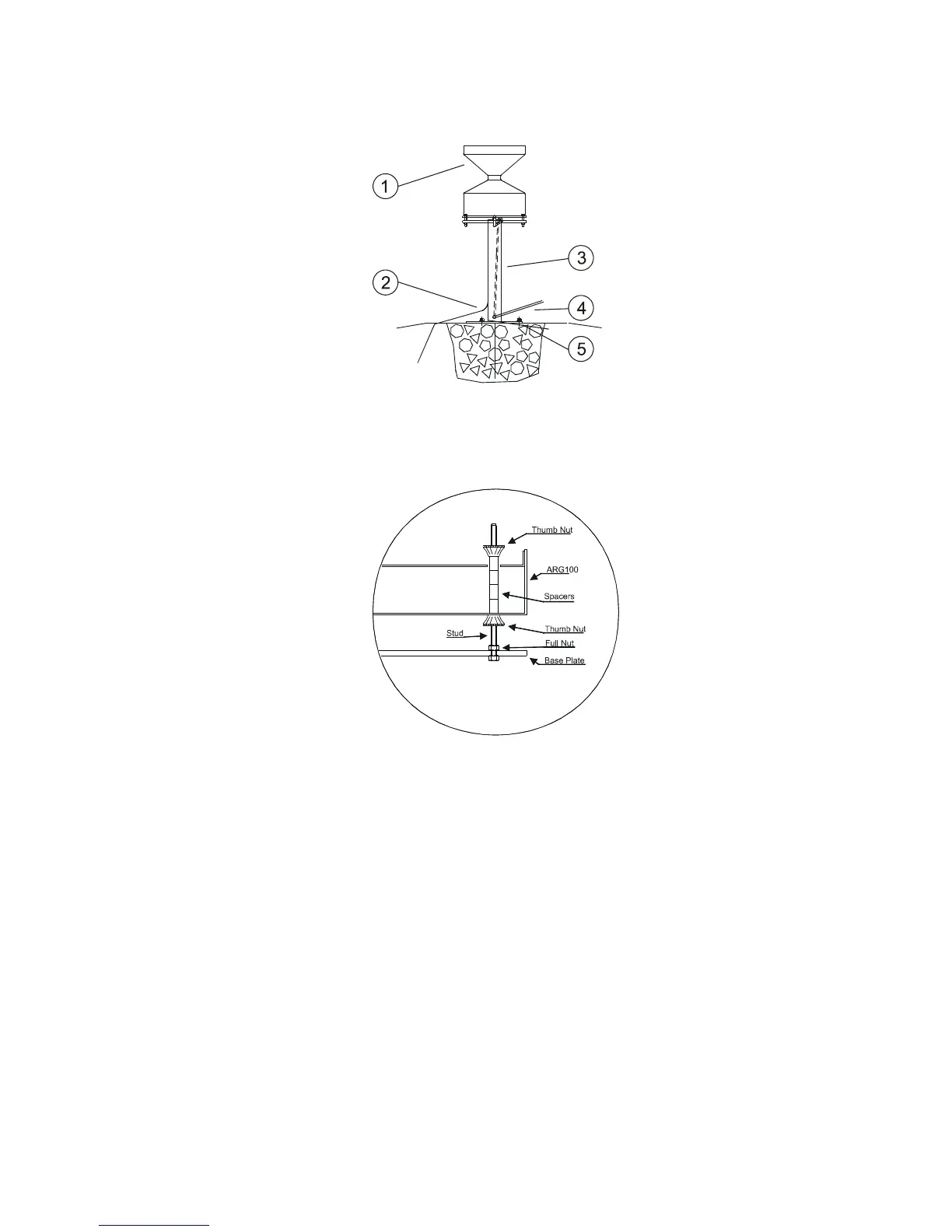

Figure 69 Rain Gauge Installed On a Stand
2. Mount the gauge (1) to the upper plate of the stand using the
provided hardware. For an example, see Figure 70 below.
0002-010
Figure 70 Rain Gauge Attachment
3. Connect the grounding cable (2).
4. Connect the signal cable (4) to MAWS. For the cabling, see
Table 11 on page 72.
5. Continue from section Finalizing the Installation on page 79.
Installing on a RGB1 Base Plate
1. Use the RGB1 base plate as instructed in the provided data
sheet.
2. Connect the signal cable (4) to MAWS. For the cabling, see
Table 11 on page 72.
3. Continue from section Finalizing the Installation on page 79.
