User's Guide _______________________________________________________________________
60 ___________________________________________________________________ M210243en-A
9908-003

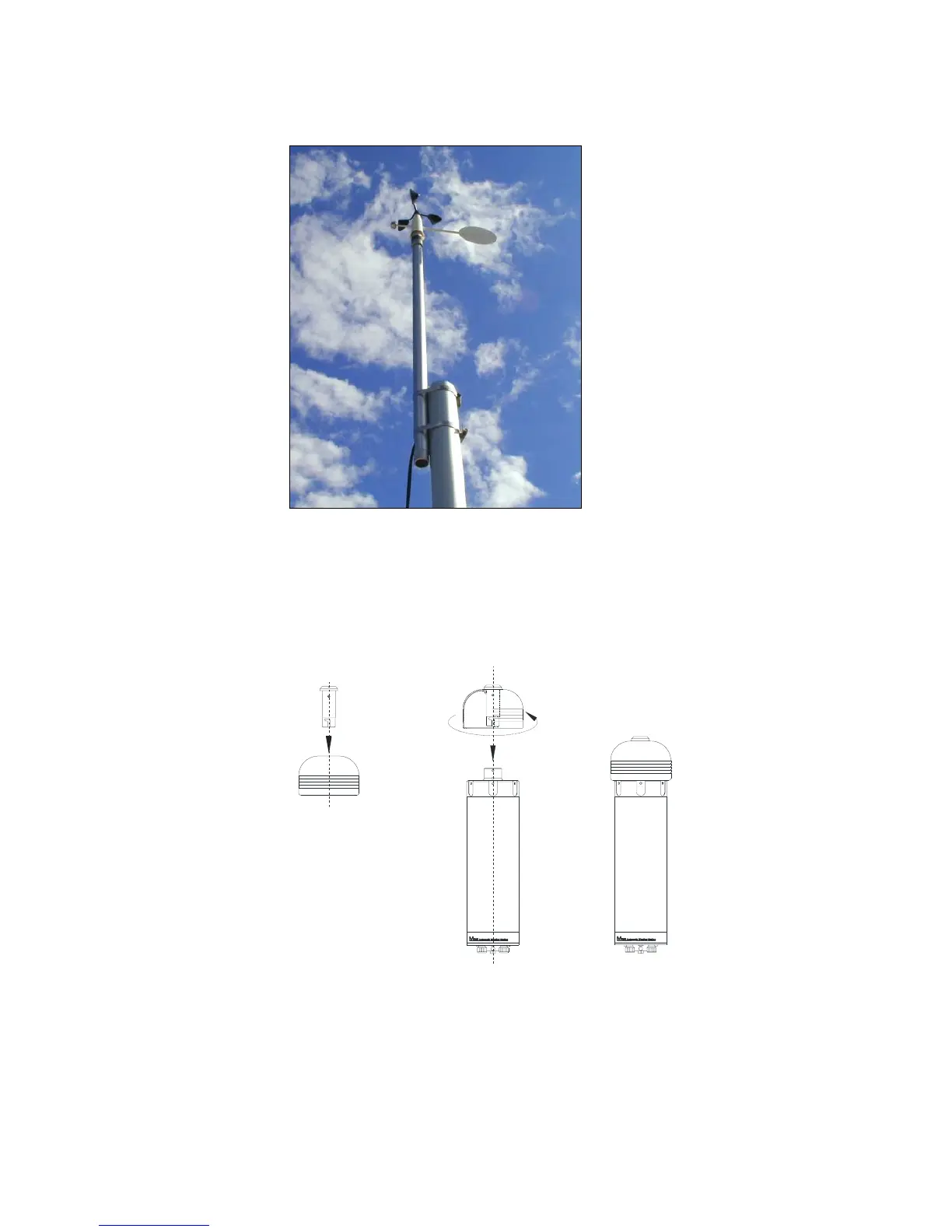

Figure 46 Wind Sensor QMW110 with DKP12 Mast
The 10-m cable is used for connecting the wind sensor to the
connector "Wind" on the upper base of the MAWS. A protective
cover screw, included in the shipment, holds the protective cover in
place above the upper base (see Figure 47 below).
9910-015
Figure 47 Installing the Protective cover Screw
