Vaisala MAWS101 User Manual

Chapter 2 ___________________________________________________________Product Overview
VAISALA ________________________________________________________________________ 43
SATELLINE 3AS radio requires 12 VDC voltage for powering,
therefore a mains power supply or QMP201C must be used with the
radio modem. In addition, a wiring change must be made in the
logger. For details, see the installation instructions. The SATELLINE
3AS radio modem must be configured before using it so that it works
as desired. The provided setup software is used for this purpose.
Accessories
Masts for MAWS101
0105-009

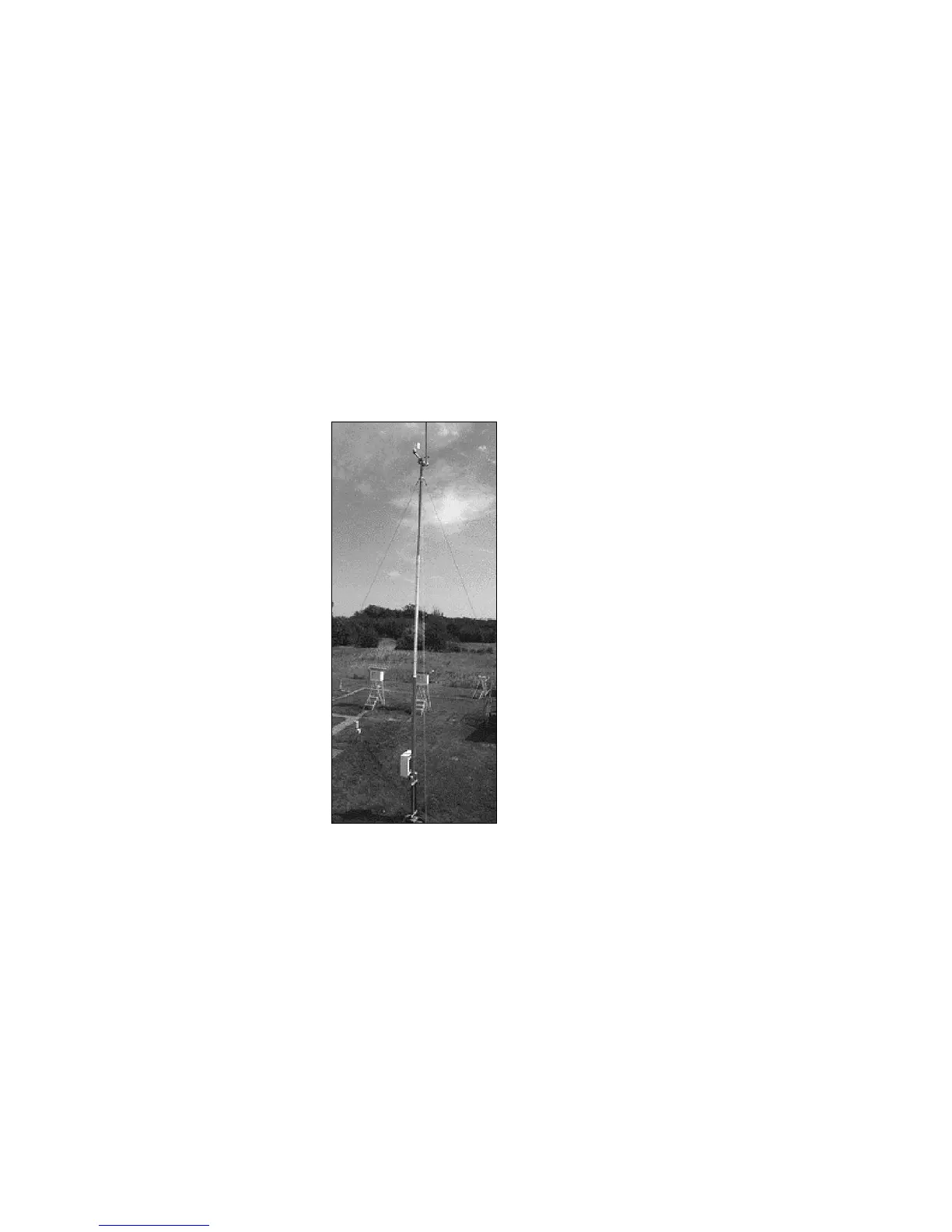

Figure 28 Installation Mast with Accessories
DKP102
DKP102 is a 2-m high pole mast designed for MAWS101 system.
When using DKP102 mast, the wind sensor must be QMW101.
Together with wind sensor installation pole, the total height of the
wind sensor will be approximately 3 meters.

Vaisala MAWS101 Specifications

General

Measurement Parameters	Wind speed, wind direction, temperature, humidity, pressure, precipitation
Wind Direction Range	0 to 360 degrees
Humidity Range	0 to 100 %RH
Precipitation Measurement	Yes
Precipitation Type	Rain, snow
Data Interface	RS-232, RS-485, SDI-12
Output Interface	Analog, digital
Enclosure Rating	IP66
Pressure Range	600 to 1100 hPa
Communication	Modbus
