Installing MAWS201 to the Tripod
MAWS201 always has a tripod for supporting the logger tube. One or
more sensor arms are connected to the tube. The legs of the tripod are
adjustable. The pegs should be used to prevent the collapse of the
station. For the wind sensor installation there is a separate tube
attached to the upper base of the logger tube. The schematic structure
of the installed MAWS201 is presented in Figure 50 below.
9806-01
2

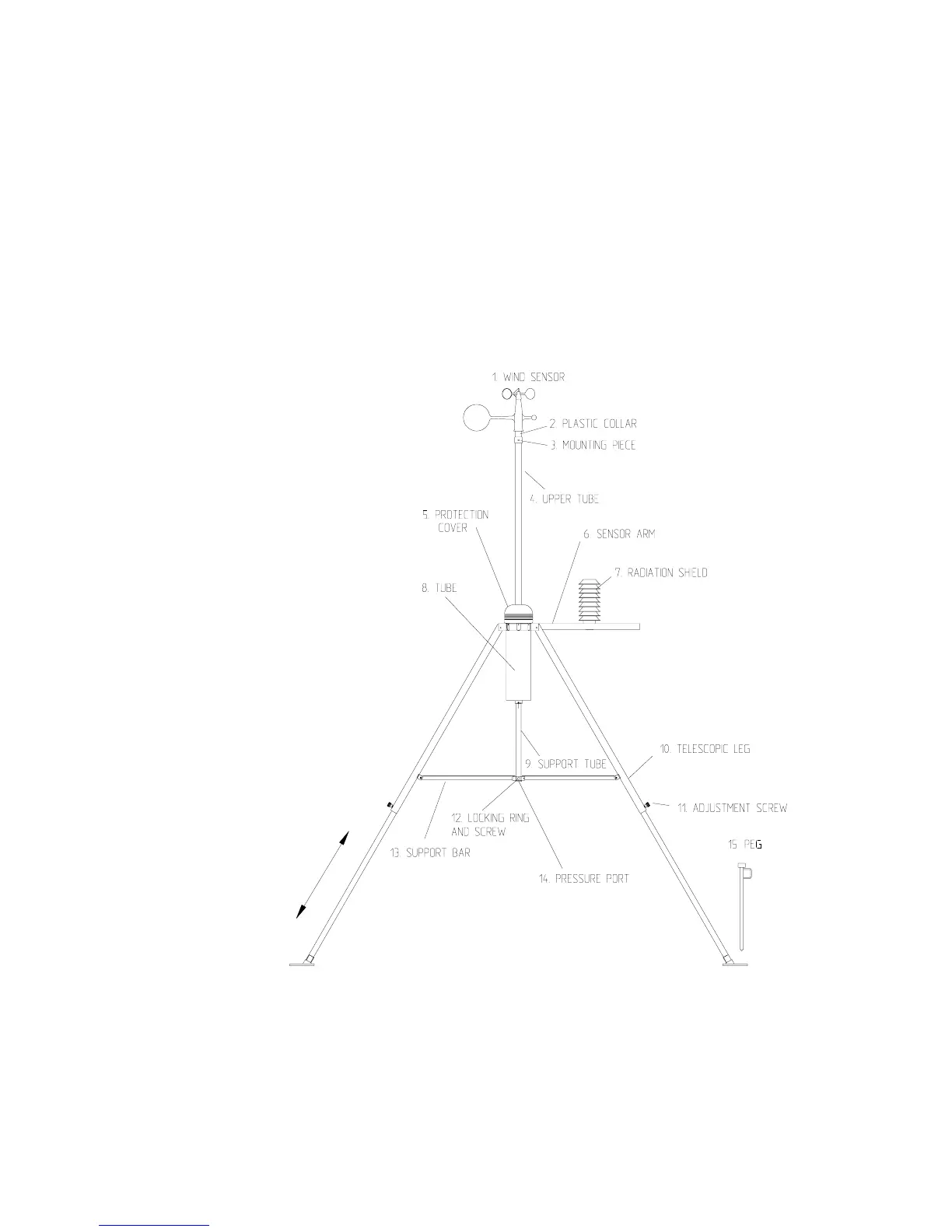

Figure 50 Mechanical Structure of MAWS201
