Vaisala MAWS101 User Manual

Chapter 3 ________________________________________________________________ Installation
VAISALA ________________________________________________________________________ 61
On Any Wooden Pole or Wall
The installation arm includes two holes for fixing the arm to any
wooden pole or wall. For details, see Figure 48 below and Figure 49
below.
9906-022

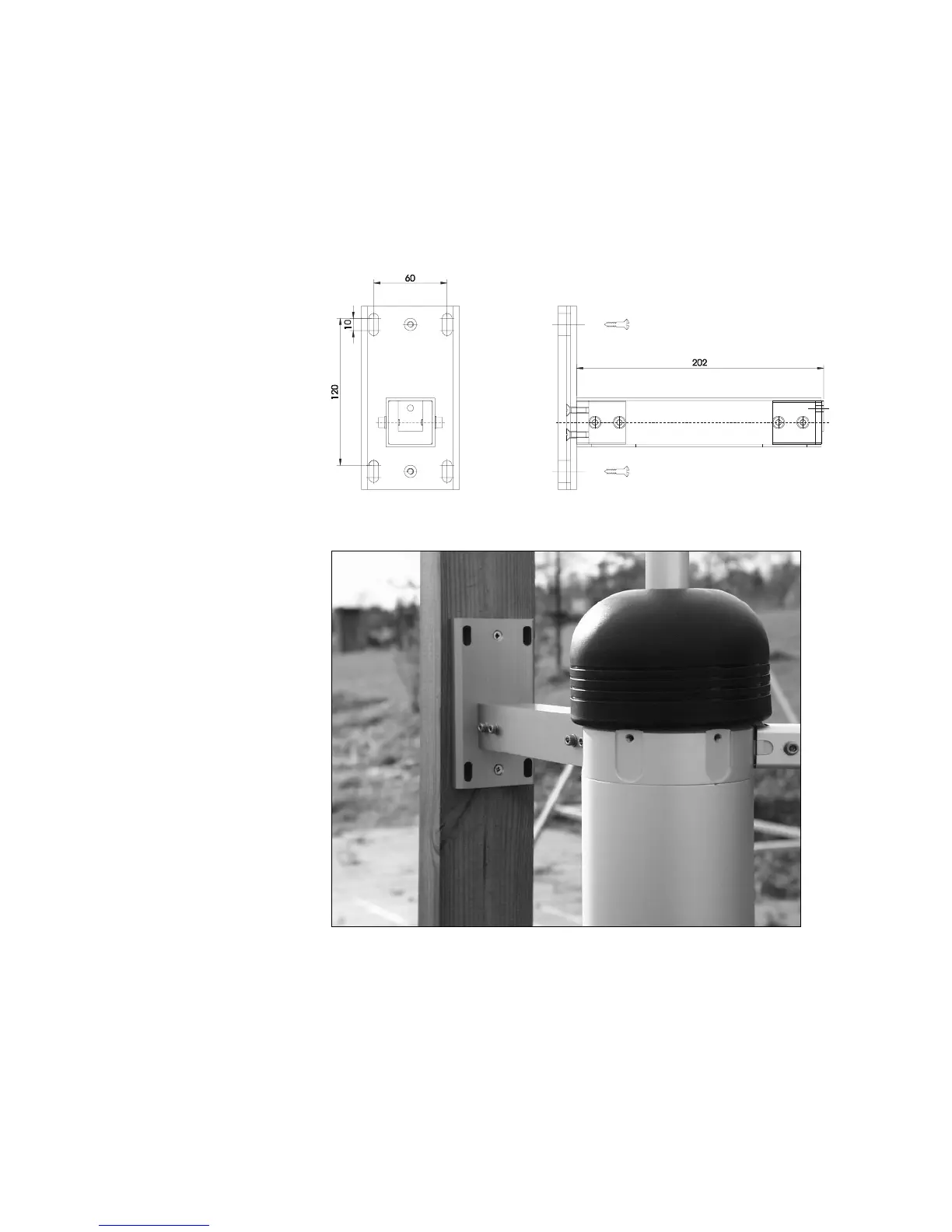

Figure 48 Installation Arm
9906-026
Figure 49 MAWS101 Fixed to a Wooden Pole with Screws

Vaisala MAWS101 Specifications

General

Measurement Parameters	Wind speed, wind direction, temperature, humidity, pressure, precipitation
Wind Direction Range	0 to 360 degrees
Humidity Range	0 to 100 %RH
Precipitation Measurement	Yes
Precipitation Type	Rain, snow
Data Interface	RS-232, RS-485, SDI-12
Output Interface	Analog, digital
Enclosure Rating	IP66
Pressure Range	600 to 1100 hPa
Communication	Modbus
