Vatech Green X - Covering Bolts with Caps

6. Finalizing the X-ray Unit Installation
82 Green X / X18 (Model: PHT-75CHS) Installation Manual
6.4 Covering Bolts with Caps

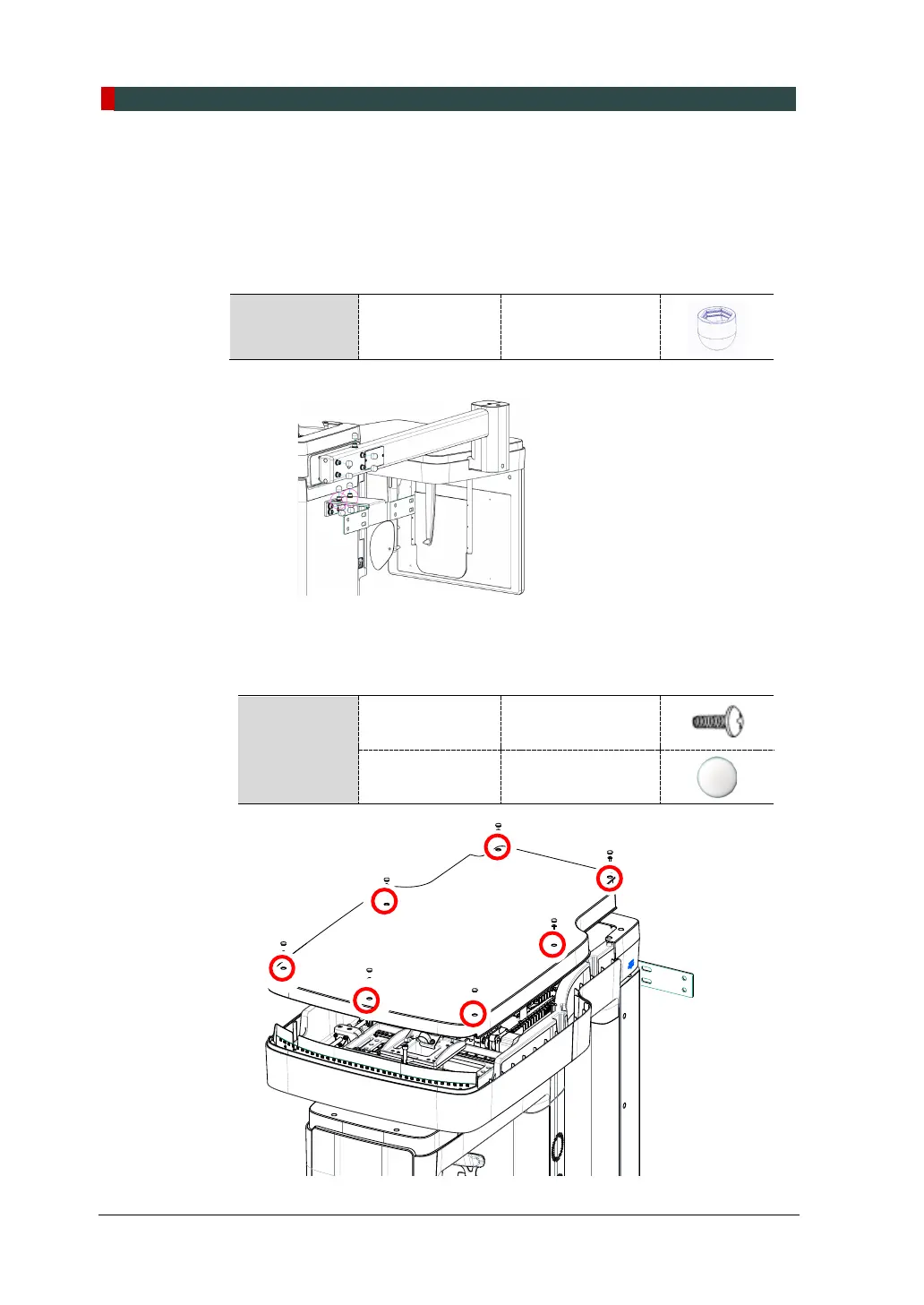

To cover bolts around the equipment:
1. Cover bolts on the wall bracket and the CEPH arm (optional) with wall mount
caps.
Parts and
Accessory
Wall mount cap
12 pcs
(Part No. 32)
2. Attach the vertical top cover with M4x10 truss bolts and cover each bolthead
with a silicone cap.
Parts and
Accessory
Truss Bolt
M4x10 – 7 pcs
(Part No. 33)
Silicone cap
7 pcs
(Part No. 16)
