4. Installing the X-ray Unit: Base Stand Type
50 Green X / X18 (Model: PHT-75CHS) Installation Manual

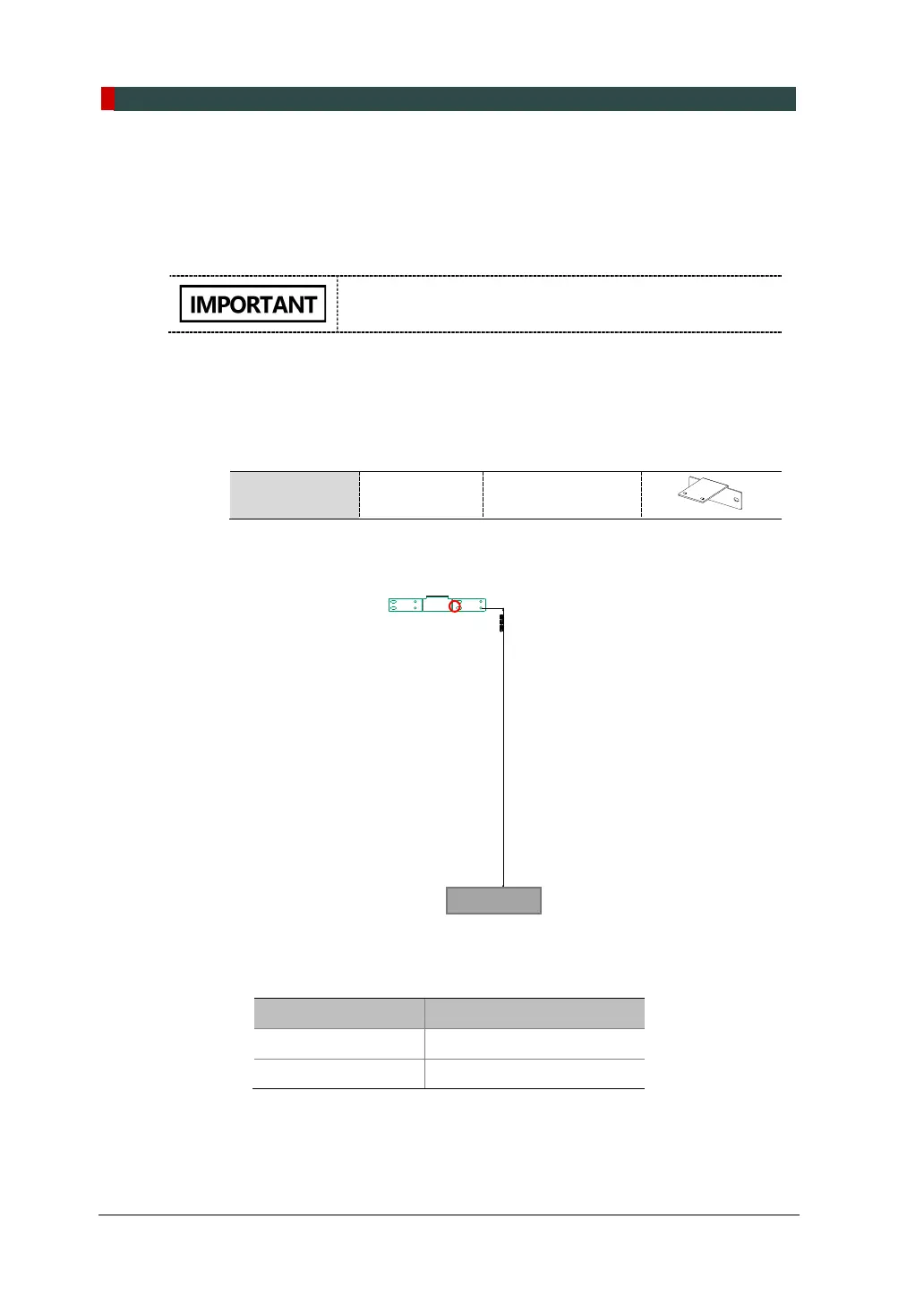

4.3 Installing the Wall and Column Brackets
Brackets must be installed in the right place to secure the equipment during the
operation. Check the wall type (wood or concrete) in your installation site and your
equipment option (wall mount or base stand) before installing wall brackets.
Install the wall bracket first before connecting it with the
column bracket.
4.3.1 For the Concrete Wall
To install a wall bracket on the concrete wall:
1. Prepare a wall bracket for the concrete wall.
Parts and
Accessory
Wall Bracket (Part No. 36)
2. Choose one of four bracket’s bottom holes as your starting point. Measure the
distance between the point and the floor.
Based on your equipment option, the distance between the bracket and floor
must be different:
Option Height (mm /ft)
Base Stand 1,315 mm (4.31ft)
Wall Mount 1,287 mm (4.22ft)
