4. Installing the X-ray Unit: Base Stand Type
Green X / X18
(Model: PHT-75CHS) Installation Manual 51
3. If the measured distance meets the requirement, mark the installation location
for the wall bracket with a marker.

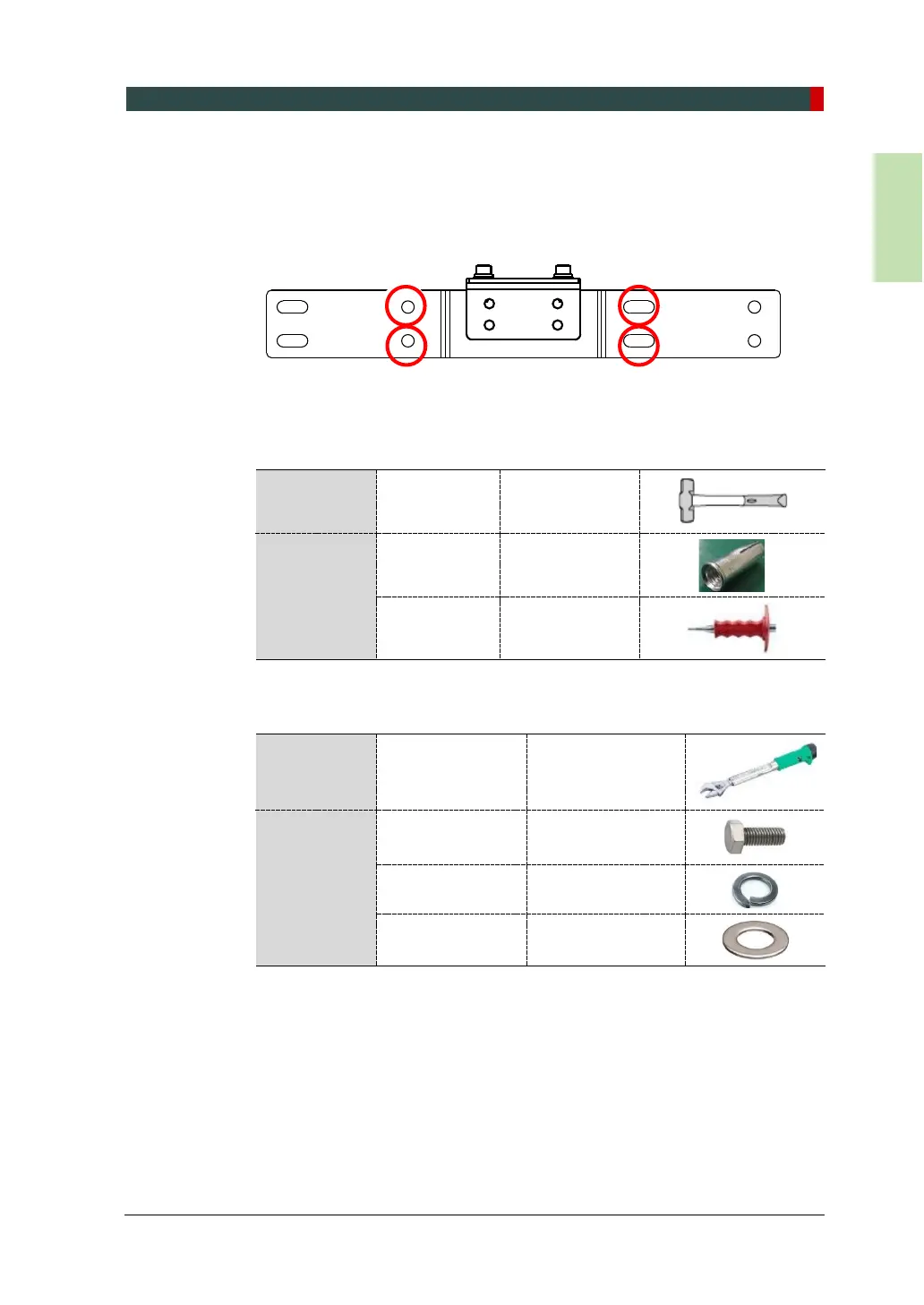

4. Place the wall bracket in the marked location. Mark a drilling point for anchor
bolts following the bracket holes.
5. Drill the holes following the marks. Each hole must be the size of 10.5mm x
30 mm (0.41” x 1.18”).
6. Hammer down Fisher strong anchors into drilled holes.
Required
Tool
Hammer N/A
Parts and
Accessory
Fischer strong
anchor
M8 x 30
EHS tool
EAW H
8x30
7. Slide hex bolts into the mounted anchor with washers. Tighten the bolts until
they no longer move.
Required
Tool
Torque wrench Spanner type
Parts and
Accessory
Hex Bolt M8 x 15
Spring washer M8
Flat washer M8
To Next Page
