4. Installing the X-ray Unit: Base Stand Type
52 Green X / X18 (Model: PHT-75CHS) Installation Manual
4.3.2 For the Wood Wall
To install a wall bracket on the wood wall:

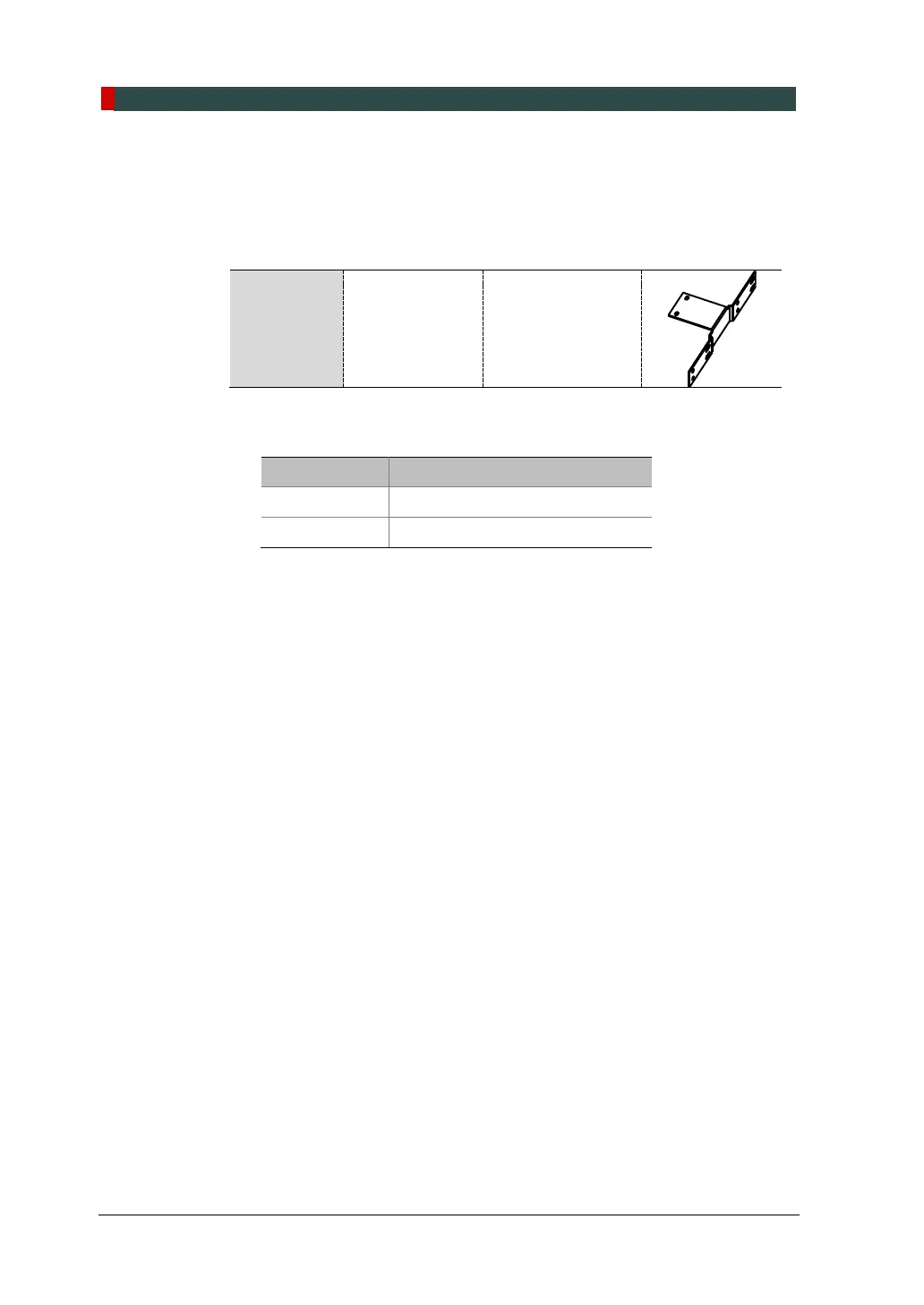

1. Prepare a wall bracket for the wood wall.
Parts and
Accessory
Wood Wall
Bracket
Optional
(Part No. 36)
2. Repeat the step from 1 to 4 in the procedure for 4.3.1 Concrete Wall. For
wood wall, the distance between the wall bracket and floor must be:
3. Mark the installing location for the wall bracket and drill the hole for wood
screws.
4. Insert wood screws into drilled holes and tighten them with a screwdriver.
Option Height (mm /ft)
Base Stand 1,300 mm (4.30ft)
Wall Mount 1,272 mm (4.17ft)
