7. Setting up PC
90 Green X / X18 (Model: PHT-75CHS) Installation Manual

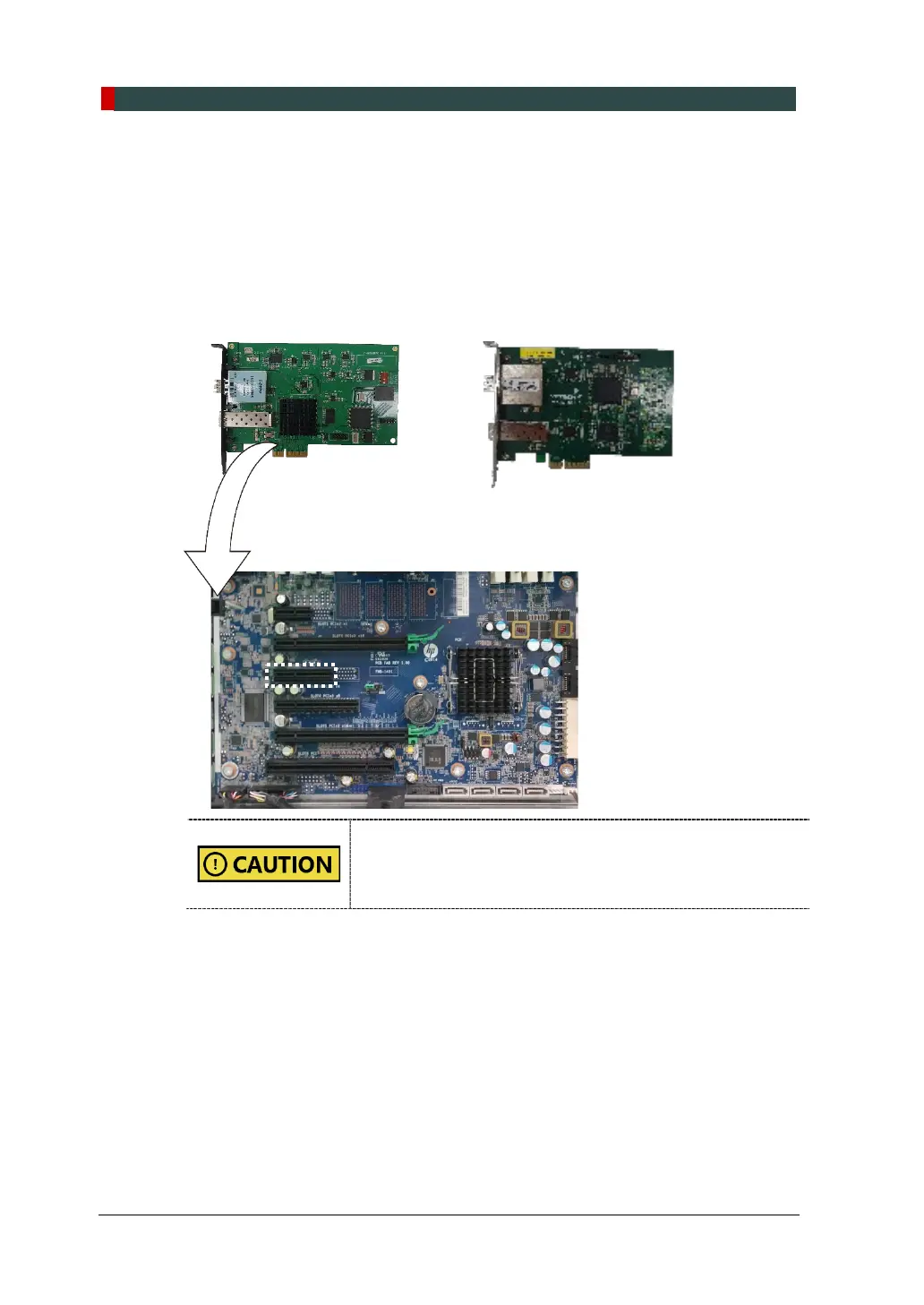

7.3.1 Installing selectable Frame Grabber Board
Follow the steps below to install a frame grabber board:
1. Unplug the power cable from the back of the PC and wait for a while.
2. Open the PC cover.
3. Insert the frame grabber (Part No. 21) into the PCIe2 x 4 slot and lock it.
<FTG Card> or <LEG Board>
Check the locking status between the board and its holder
after installing it. Poor installation can cause a failure for dark
calibration data acquisition or noisy image acquisition.
4. Put the slot holder back to its initial position.
To Next Page
