Engine (continued)
Installing the PTO Electric Clutch

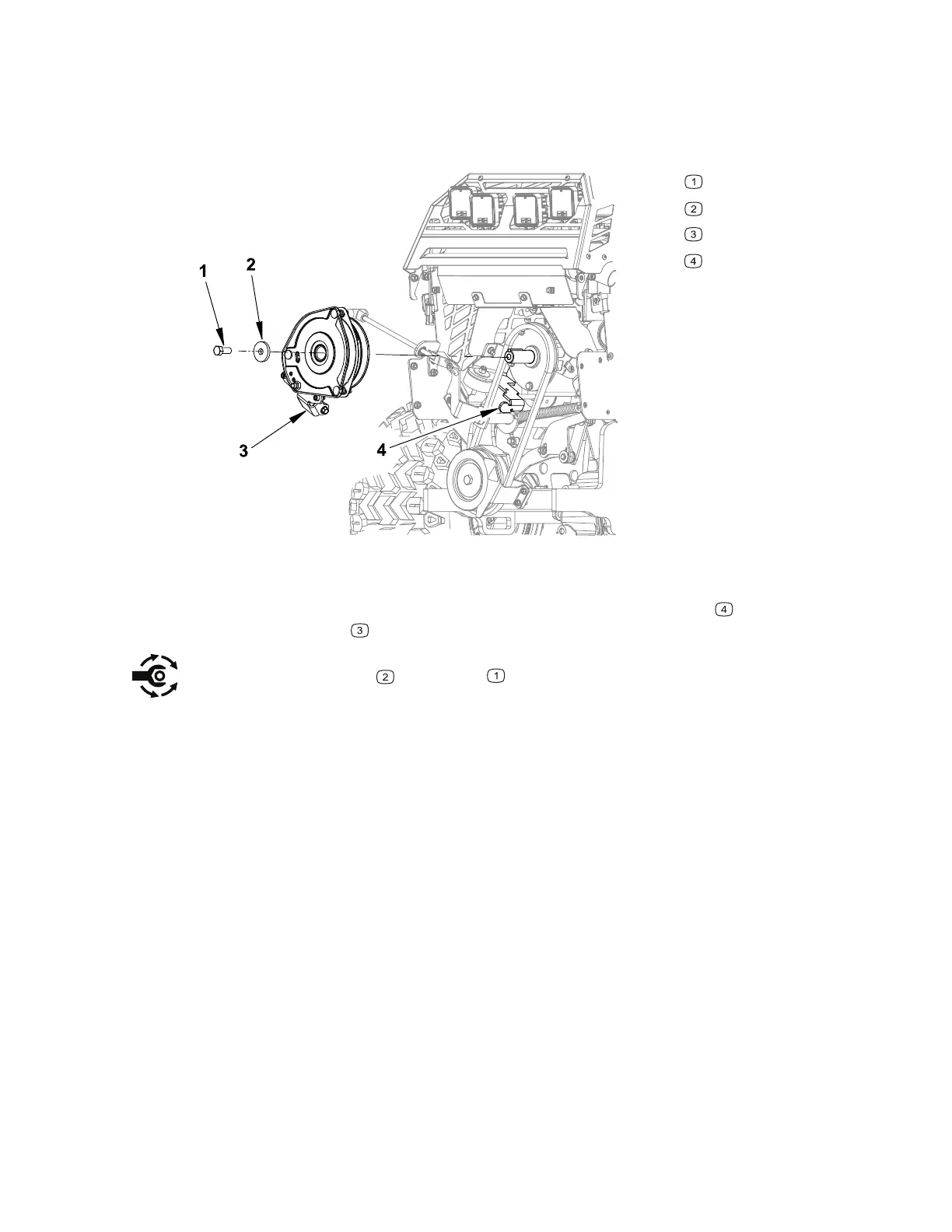

Figure 16
G437691
Bolt
Washer
Torque bracket
Isolator mounting bracket
1. Install the clutch on the crankshaft aligning the keyway of the clutch with the key
of the crankshaft. Ensure that the isolator mounting bracket
is between the
torque bracket
isolators.
2. Install the washer on the bolt and apply red thread locker to the bolt threads.
Install the bolt, torque the bolt to 95 Nm (70 ft-lb).
3. Install the PTO drive belt.
4. Connect the clutch electrical connector to the main wiring harness.
5. Check the clutch air gap; refer to Adjusting the PTO Electric Clutch Air Gap, page
7–4.
6. Install the grill; refer to Removing and Installing the Grill, page 7–14.
4520Z Page 4–25 Engine: Engine Service and Repairs
09.40001Rev 00
