Manual Micro Dispensing Systems MDS 3010A-FA and MDS 3020A-FA
VTK-VS-BA-002 Revision B 16
4.4. Notice for the Adjust and the performing of the First Drop
Description of problem:
Possible reason:
Solution:
The LED in the window “first
drop” is still on, after a
successful calibration of the
first drop has been done.
The Needle Lift set in the menu
“Pulse Parameters” is more than
the maximum value of the True
Needle Lift.
You have to set the
Needle Lift to the value
of the TNL max or
lower.
After the calibration of the
stroke of the tappet the
display shows the message:
MAX NEEDLE LIFT XX%.
The maximum stroke measured by
sensor is under the standard
tolerance value.
For the optimal
dispense result the
valve has to be rebuild
at VERMES
Microdispensing.
The LED in the window
“adjust” is suddenly red while
doing the first drop process.
The position of the tappet is
unstable after the indication of the
1000 shots.
A non-professional mounting or
fixation or abrasion of the tappet is
a possible reason.
You have to clean the
nozzle insert, the
tappet and the tappet
guidance and then
repeat the procedure.
Table 2: Notice for the Adjust
5. Scope of supply
Please check after receipt of your Micro Dispensing System if the delivery is complete.
5.1. Standard
Please check after receipt for sufficiency.
The following components are part of the standard scope of supply for the MDS 3000 family:
Micro Dispensing Valve MDV 3010A/3020A
Actuator cable (red)*
Control unit MDC 3090A-FA
Sensor cable (yellow)*
Fluid box MDF 3070FA-Ciano-SSI*
Power cord (black)
Nozzle insert*
MDT 301 Universal tool*
MDT 303 nozzle changing tool*
Protection for tappet
Manual
Decontamination certificate
*Must be ordered separately

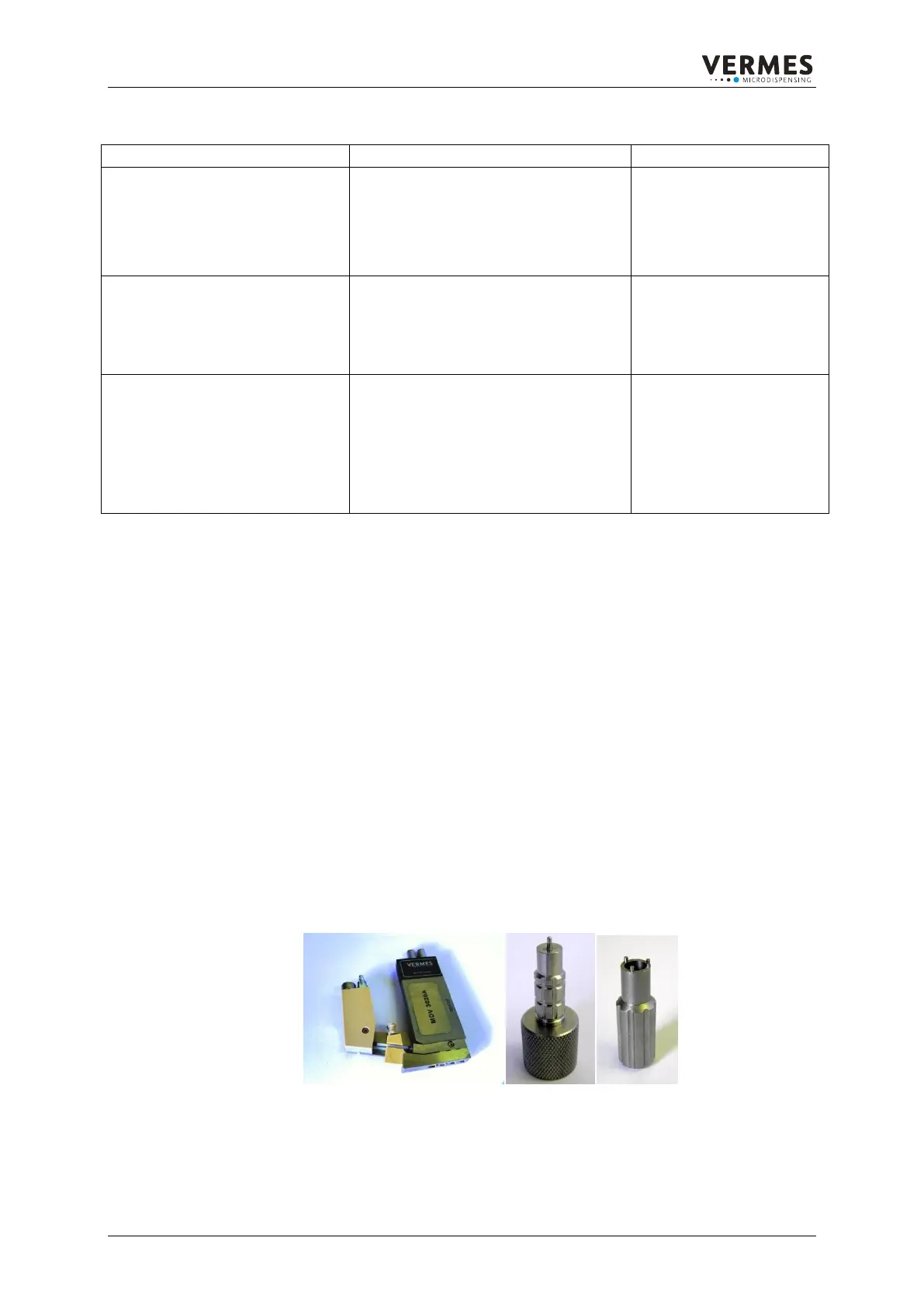

Figure 6 : MDV 3020A with MDF 3070FA-cyano SSI; MDT 301; MDT303
Recommended:
Optional available:
CTK - Cleaning Tool Kit
Various fluid boxes
For additional information and special requirements please contact VERMES Microdispensing.
