Manual Micro Dispensing Systems MDS 3010A-FA and MDS 3020A-FA
VTK-VS-BA-002 Revision B 19

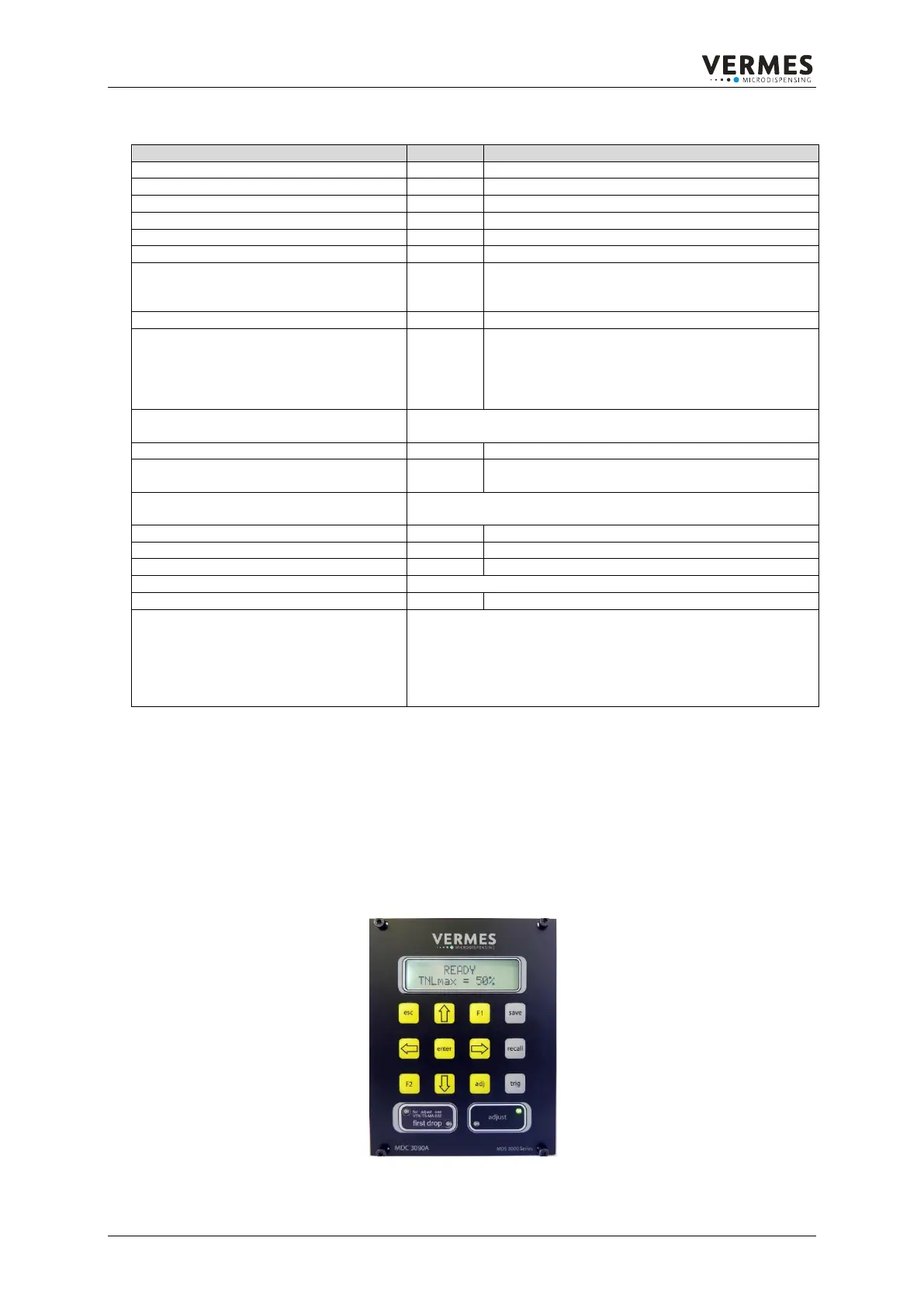

7.2. Technical data MDC 3090A-FA
Property
Value
Unit/Explanation
Number of parameter storage spaces
10
Lines on display
2
16 characters each
Colour of display
white
Backlighting
Push buttons
12
Maximum heating temperature
-
-
Heating circuits
1
No function
Pilot lamps (front side)
3
First Drop
Adjust ok (green)
Adjust not ok (red)
Pilot lamps (back side)
1
Mains on
Interfaces
8
Power plug (230 VAC)
9 pin Sub-D RS-232C (EIA-232)
15 pin. Sub-D PLC
4 x multi pin sockets
1 x thermo couple socket
Operating temperature range
10 to 50°C; for high precision operation is a temperature
constancy of ± 1°C in the field of 20-30 °C mandatory.
Housing colour
black
Button colour
yellow and
grey
Ventilation concept
Convection airing
No forced ventilation needed
Line voltage
230
V AC/DC
Line frequency
50/60
Hz
Maximum current consumption
300
mA
Housing design
Insert for 19 inch plug-in module
Weight
1350
g
Dimensions
Width 101 mm
Height 128 mm
Depth 173 mm (without cables)
Depth about 180 mm (with cables)
3 height units
20 depth units
Table 4: Technical data of MDC 3090A-FA
7.3. Control panel
7.3.1. LC display
The LC display contains two lines with up to 16 characters each. In the upper line, the current
menu item is displayed. The lower line shows the menu item that is in selection or the current
numeric value which can be changed.
Figure 8: Front panel
