6.3.5. Position
The Micro Dispensing Valves are operable in any mounting position. The integration of the Micro
Dispensing Valves into production process is very simple.
6.3.6. Handling
Remote control via PC of all valve functions is possible. The control unit MDC 3090A-FA can be
easily integrated into your system.
6.4. Material classification
VERMES Microdispensing only uses high-quality materials.
All fluid contact parts consist of high-alloyed, rust-proof and acid-resistant stainless steels
as well as modifications of the high performance polymer families of polyetheretherketone
(PEEK) and of polyethylene (PE).
You can get sealings alternatively in NBR, EPDM, VITON or Silicone.
Our nozzle inserts are adapted to the particular dispense media and consist alternatively
of various materials like stainless steel, plastics, ceramics or technical glass.
7. Control Unit MDC 3090A-FA
7.1. Description of the MDC module
The control unit MDC 3090A-FA consists of:
switch-mode power supply to provide all voltage
microprocessor-based control unit for the Micro Dispensing Valve
display
key panel
4 LED-displays on the front panel
various interfaces on the back side
rubber connector for lead-out to 230V power supply system
on/off-switch for voltage supply

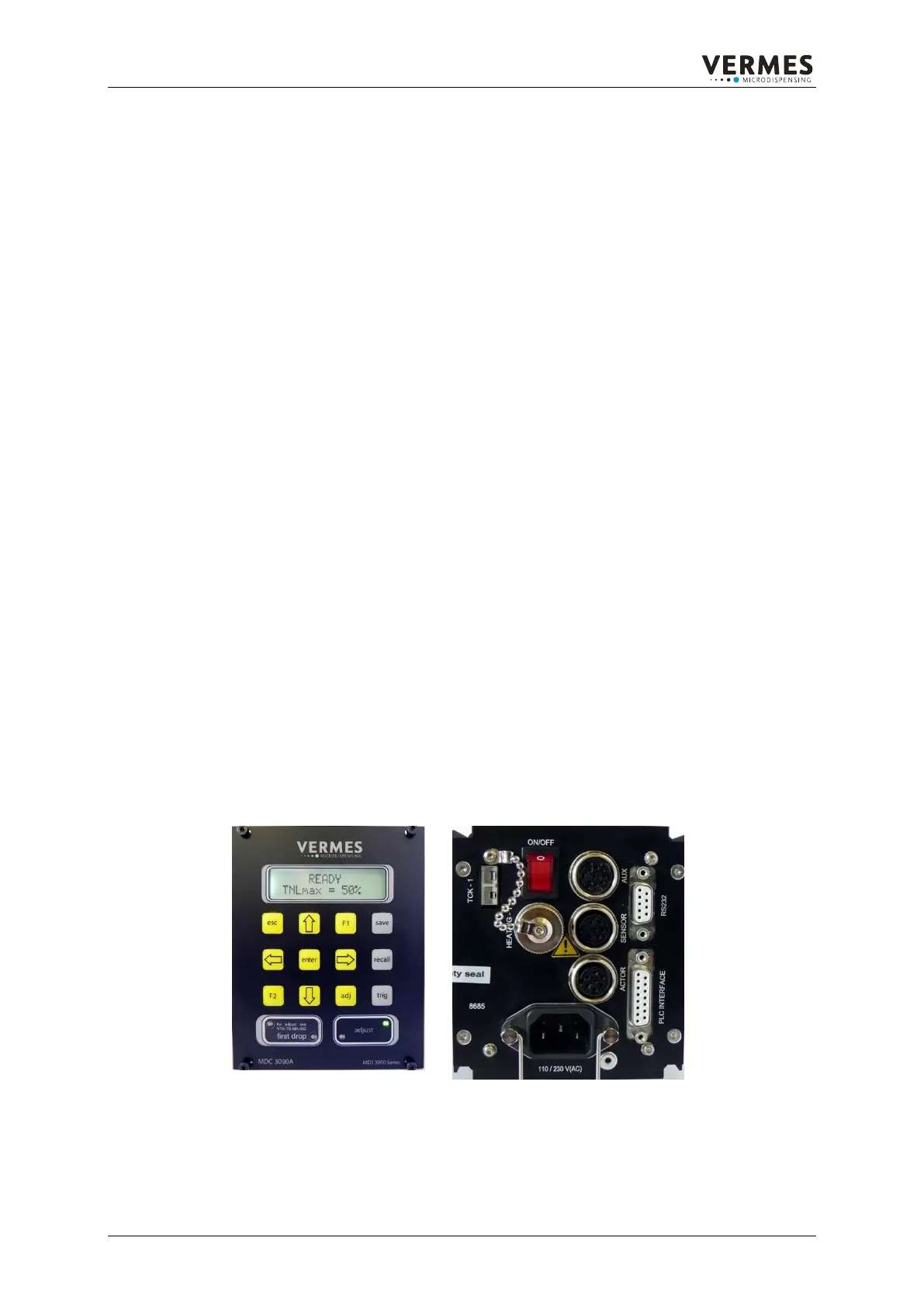

Figure 7: Control unit MDC 3090A-FA
