Integral Cab Header Installation LD-16 Door Operator - Modernization
10 © Vertical Express
Single-Speed Side-Opening Doors Integral Cab Header Installation
(continued)
7. Use the existing door track holes to align the adapter angle. See Figure 4 below and
Figure 5 on page 11.
8. Use included hardware to attach the adapter angle to the header, but do not
tighten; leave hardware loose to allow adapter alignment with track keyslots.
a. Use low profile bolts at the following locations:
When looking from the strike end of the side opening,
• Small Hole/Slot = Right-Hand Openings
• No Hole/Slot = Left-Hand Openings
b. Use push nuts to help position the low profile bolts.

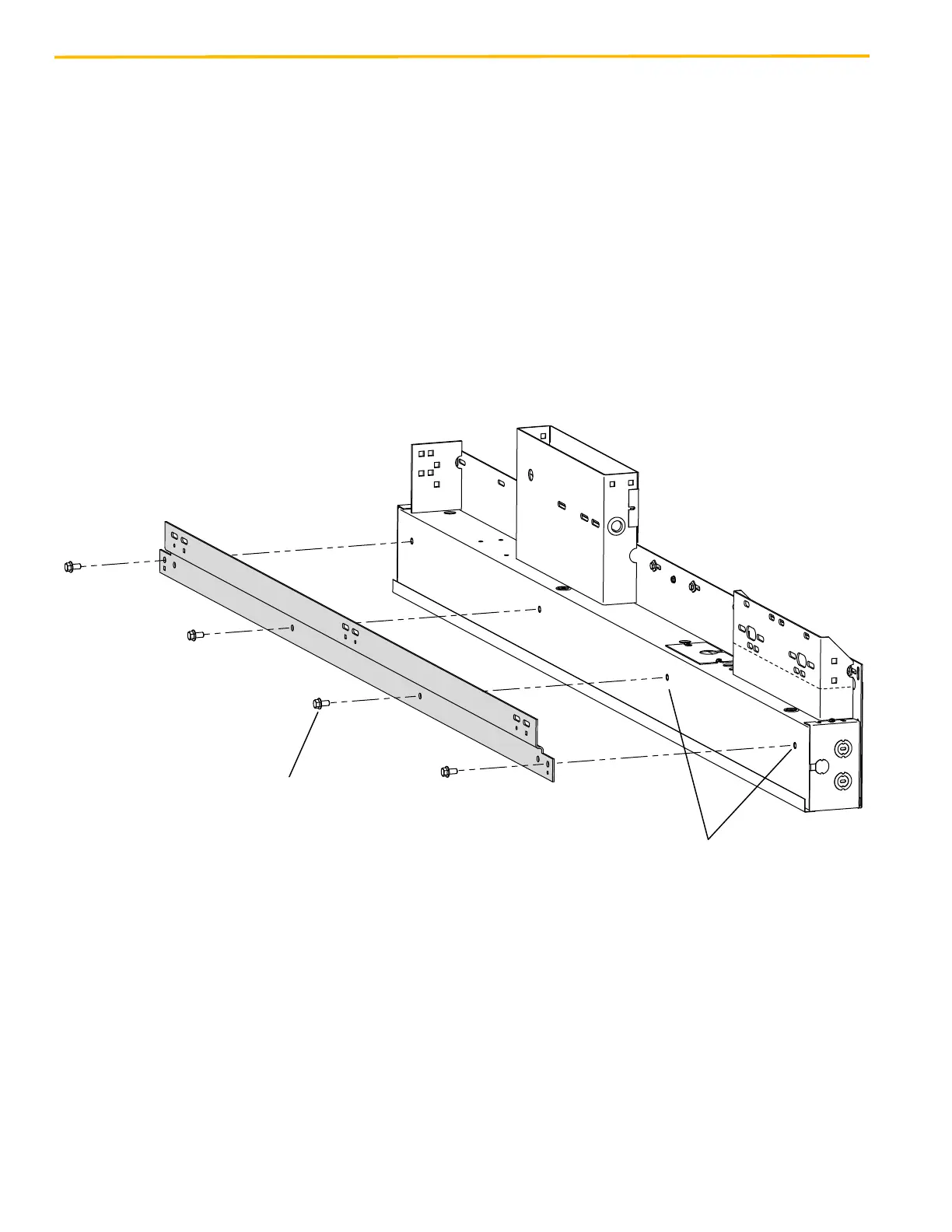

Figure 4 - Adapter Angle Installation (1 of 2)
Use the Existing Door Track Holes to Align the Adapter Angle
ƻȚ
x
ƳȚ
Bolts
To Next Page
