Integral Cab Header Installation LD-16 Door Operator - Modernization
14 © Vertical Express
Single-Speed Side-Opening Doors Integral Cab Header Installation
(continued)
15. Use a 4 mm Allen wrench to remove the door controller cover, and remove the
rubber grommet from the operator box.
16. Install the junction box to the door operator. See Figure 8.
17. Route the wiring harness through the 1
1
/
2
" flex conduit, and then install the 1
1
/
2
" flex
and straight connectors.
18. Install the wiring harnesses through the flex conduit; insert the OPERF or OPERR
plug into the COP harness end.
19. Install the CTS to the top of the junction box. See Figure 8.
20. Before routing, cable tie the CTS wiring.
21. Proceed to New/Existing Car Door Panel Installation on page 44.

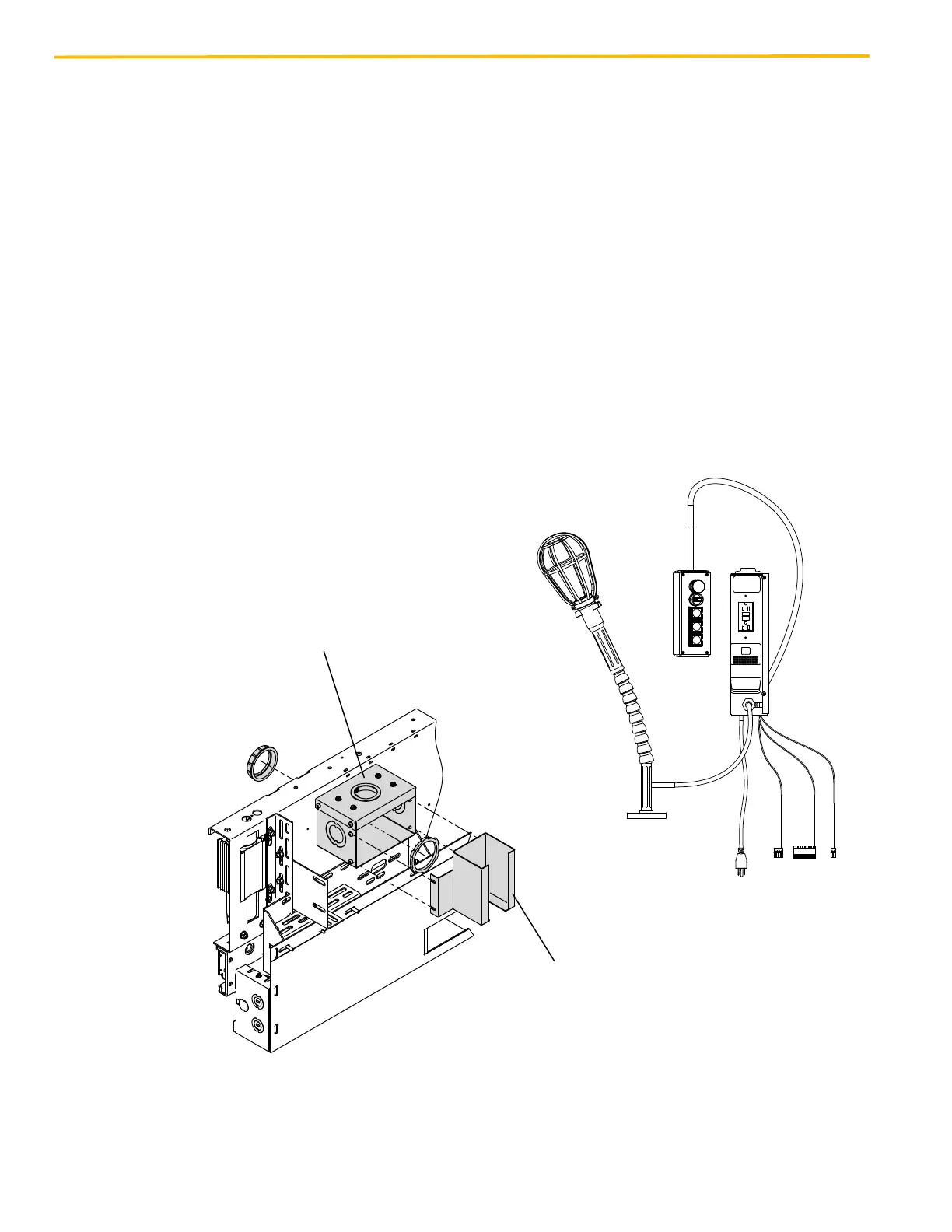

Figure 8 - Car Top Station Installation
Runbug Holder
Junction Box
Car Top Station Assembly
