LD-16 Door Operator - Modernization Integral Cab Header Installation
October 2021 - 88420 v.1.0
17
Two-Speed Side-Opening Doors Integral Cab Header Installation
(continued)
7. Use the existing door track holes to align the adapter angle. See Figure 12 below and
Figure 13 on page 18.
8. Use included hardware to attach the adapter angle to the header, but do not
tighten; leave hardware loose to allow adapter alignment with track keyslots.
a. Use low profile bolts at the following locations:
When looking from the strike end of the side opening,
• Small Hole/Slot = Right-Hand Openings
• No Hole/Slot = Left-Hand Openings
b. Use push nuts to help position the low profile bolts.

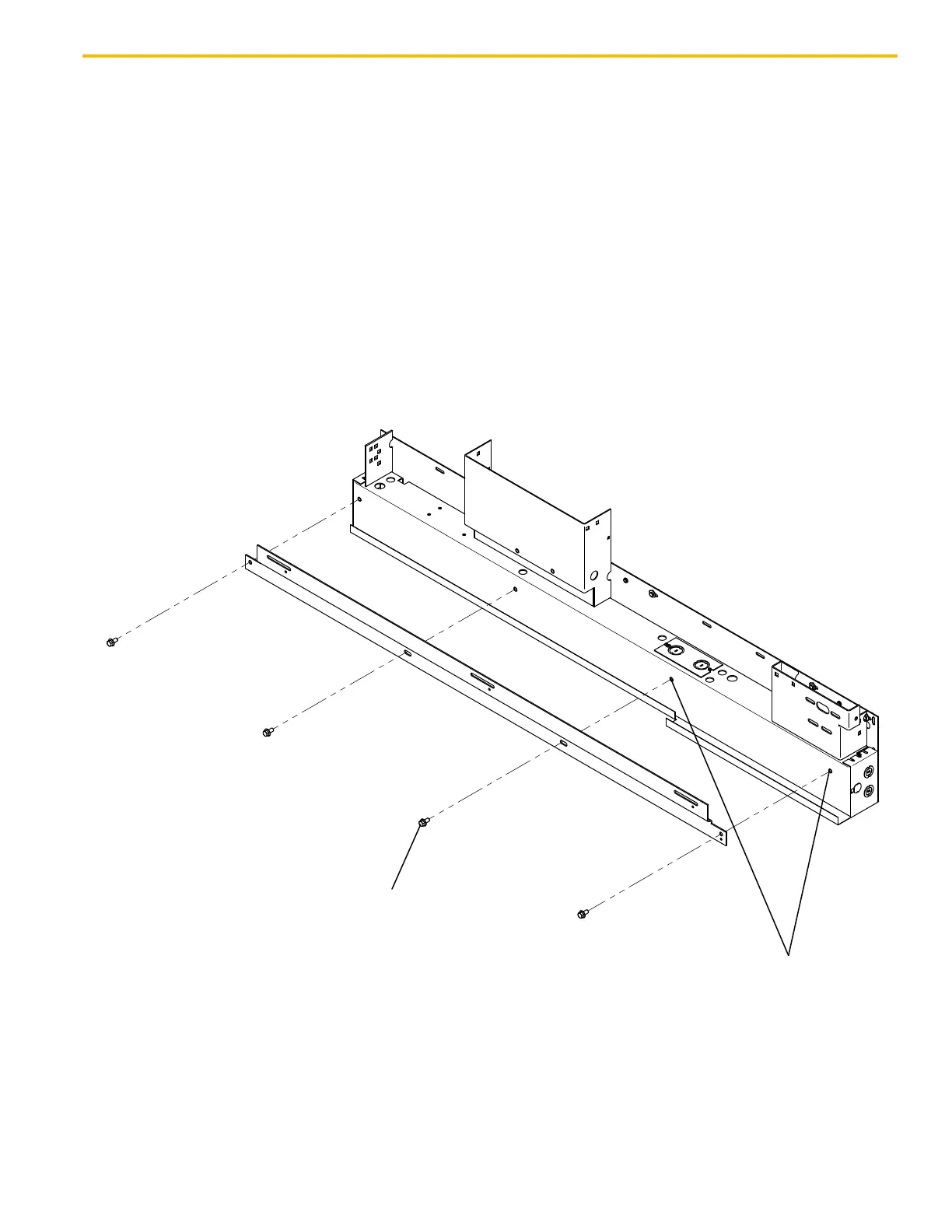

Figure 12 - Adapter Angle Installation (1 of 3)
Use the Existing Door Track Holes to Align the Adapter Angle
ƻȚ
x
ƳȚ
Bolts
To Next Page
