Integral Cab Header Installation LD-16 Door Operator - Modernization
18 © Vertical Express
Two-Speed Side-Opening Doors Integral Cab Header Installation
(continued)

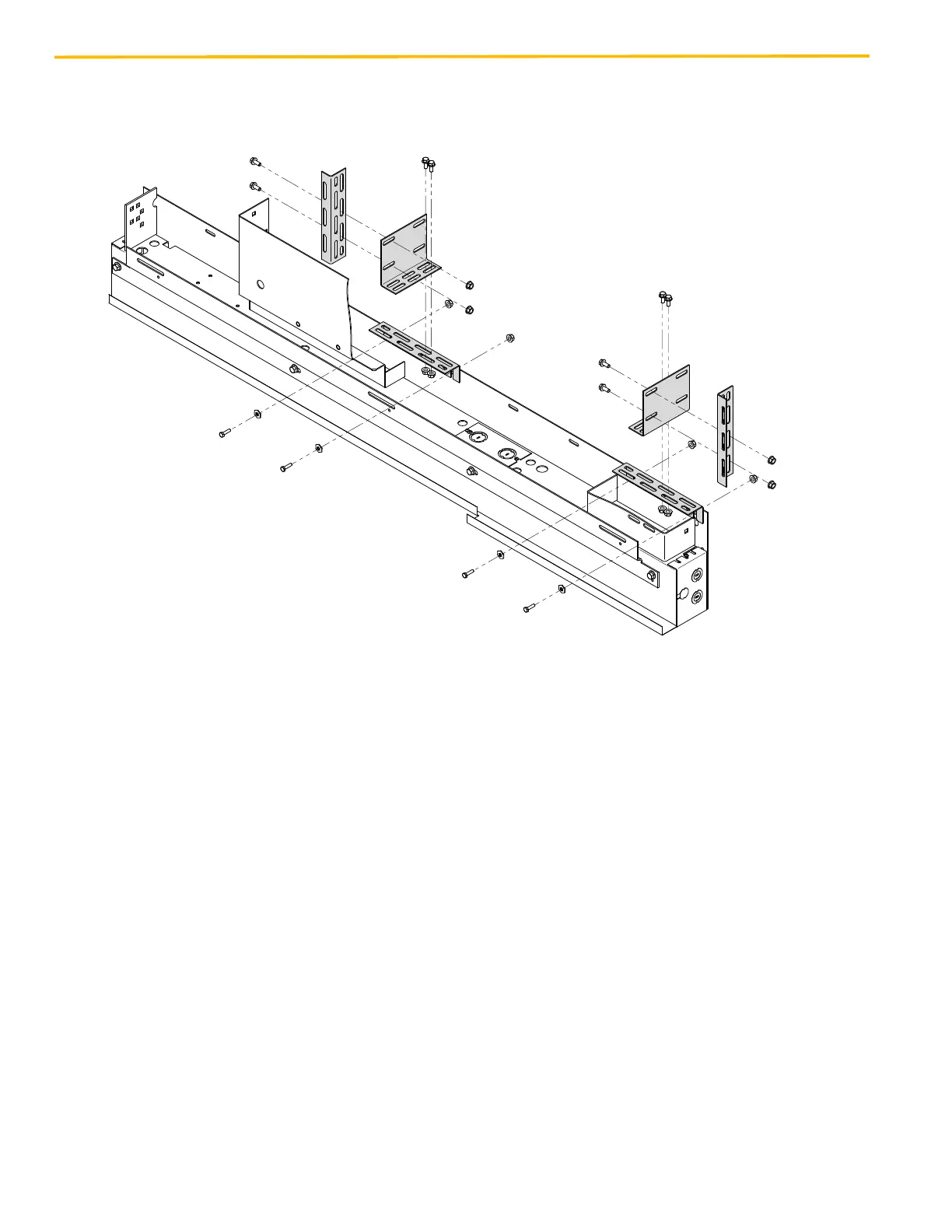

Figure 13 - Adapter Angle Installation (2 of 3)
9. Route the door operator harness to the Car Operating Panel (COP).
See Maintenance on page 82 and the Generic Wiring Diagrams on page A-16.
• Do not install the plugs on the operator door card or on the COP.
• Before moving the car, replace the door card cover.
