Vertical Express LD-16 - Existing Cab Header Installation

LD-16 Door Operator - Modernization Integral Cab Header Installation
October 2021 - 88420 v.1.0
19
Two-Speed Side-Opening Doors Integral Cab Header Installation
(continued)
10. Install the door operator to the adapter angle. See Figure 14 on page 19.
a. Align the door track bolts with the keyslots in the track, and attach the door
operator to the adapter.
b. Verify that the door operator is level.
c. Verify that there is 5
1
/
4
" between the clear opening and the B dimension.
d. Use a
3
/
16
" Allen wrench to tighten down the bolts.
11. Install the door operator mounting angles.
12. Add bolts to brace the cab to the door operator back.
13. Check for plumb.
14. Verify that the track to sill is parallel.

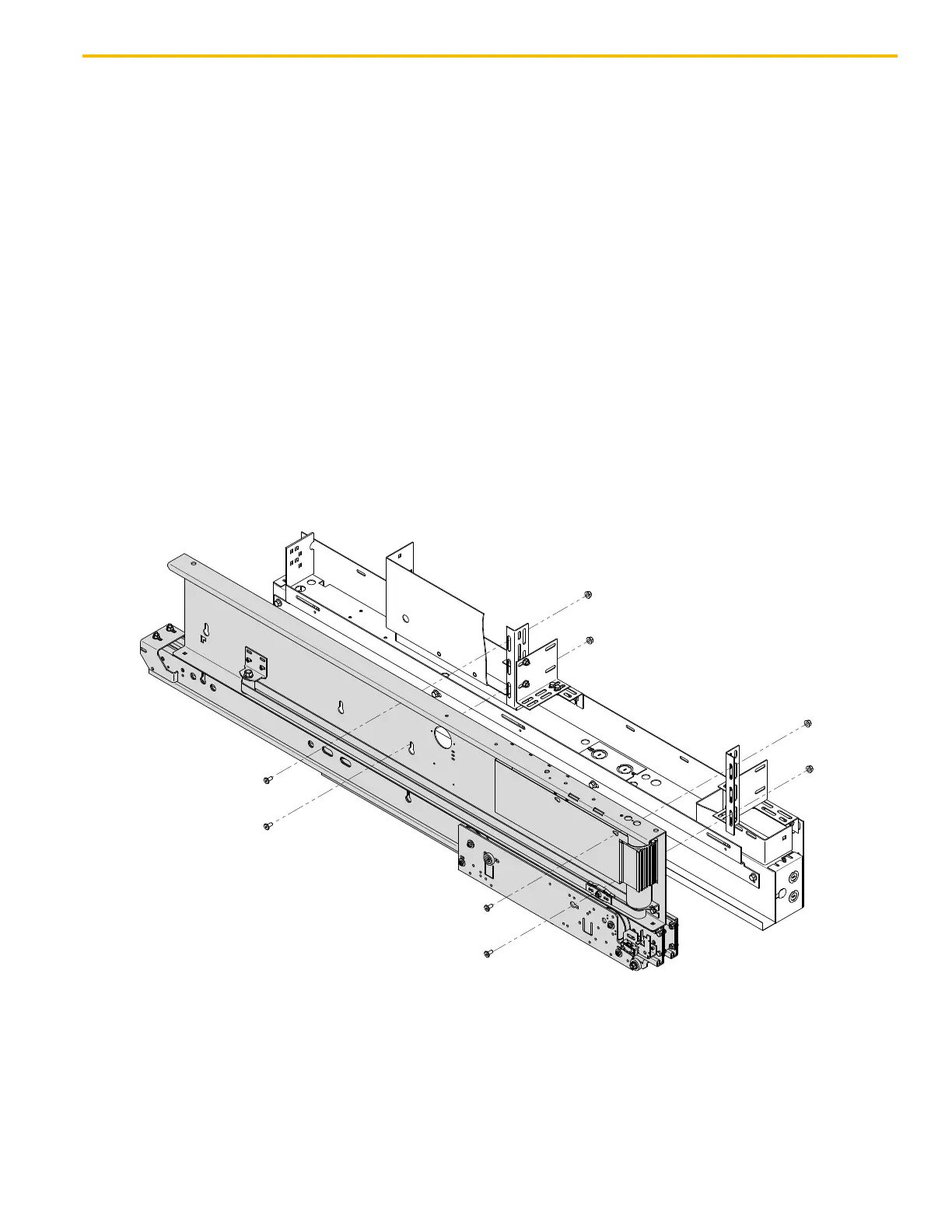

Figure 14 - Adapter Angle Installation (3 of 3)
