Vertical Express LD-16 - Clutch Installation and Adjustment

LD-16 Door Operator - Modernization Separate Header Installation
October 2021 - 88420 v.1.0
41
Separate Header Installation
(continued)
6. Install the junction box. See Figure 36.

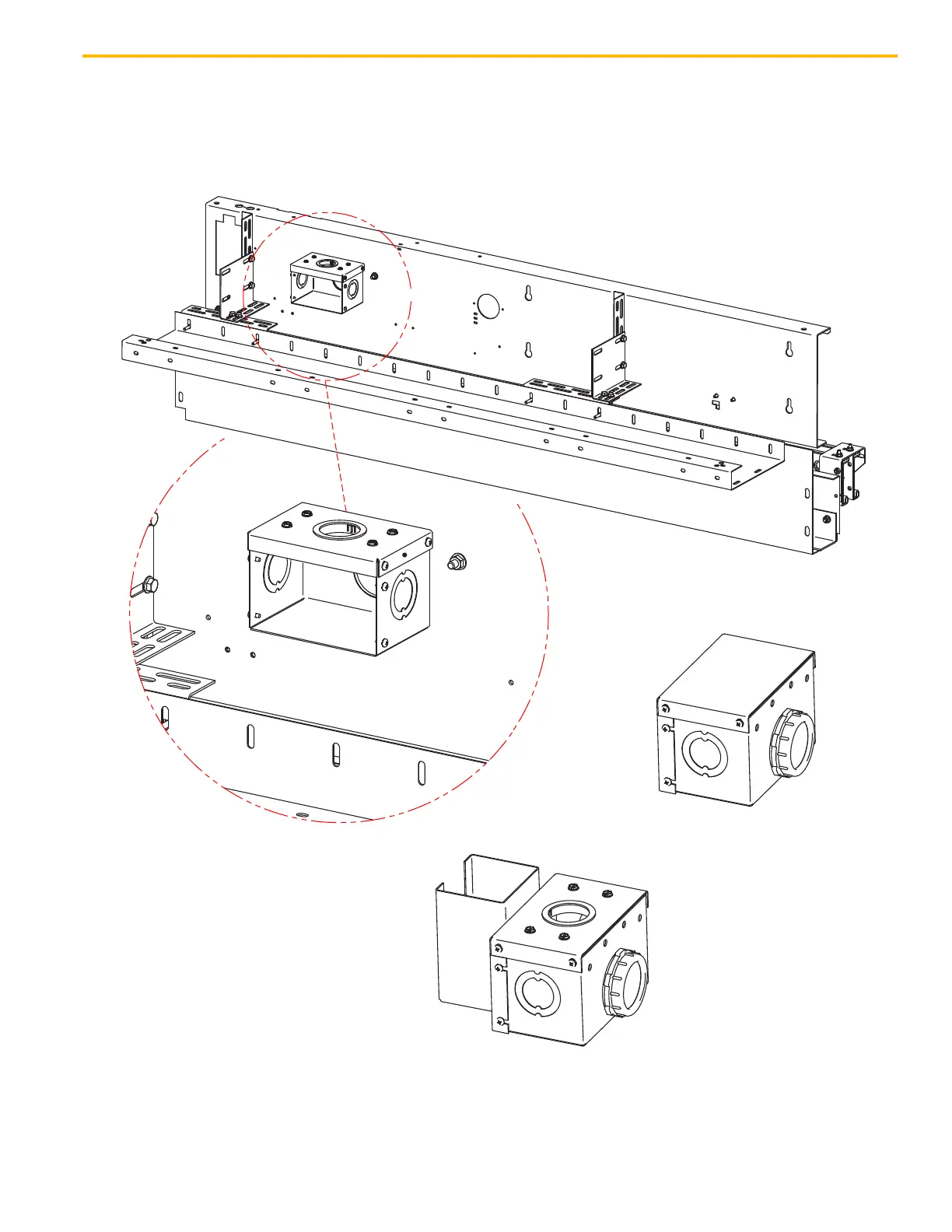

Figure 36 - Junction Box Installation
Cover Shown Removed
(for installation and wiring)
CTS by others Junction Box
TKE CTS Junction Box
