UC3
G2
L2
G1
E1
E2
HR HV
LV1
LV2
LV3
LV4
HR LV
UC4
POINT DESCRIPTION X in. (mm) Y in. (mm) Connection Size Opening
L1 Liquid Line System1 Refrigerant Connection
4.4 (112)
5.9 (149) 1-3/8" (35mm) O.D. Cu
L2 Liquid Line System2 Refrigerant Connection 9.1 (232) 1-3/8" (35mm) O.D. Cu
G1 Hot Gas Discharge 1 Refrigerant Connection 12 (304) 1-5/8" (41mm) O.D. Cu
G2 Hot Gas Discharge 2 Refrigerant Connection 18.5 (479) 1-5/8" (41mm) O.D. Cu
UC3 Chilled Water connection Supply to Heat Load 7.3 (186) 14.8 (376)
3" (76mm)
UC4 Coolant connection Return from Heat Load 19.4 (492) 19.3 (489)
E1
High Voltage Electrical Connections Top 117.6 (2986)
16.8 (426)
Concentric knockouts
1-3/8", 1-3/4", 2-1/2"
E2 13.4 (341)
LV1
Electrical Connection (Low Volt, Top) 114.8 (2916)
18.7 (474)
1-3/8" (35mm)
LV2 16.7 (423)
LV3 14.7 (372)
LV4 12.7 (322)
HR LV
Electrical Connection (Low VoltOptional, Heat
Rejection Unit)
114.8 (2916)
10.7 (271)
HR HV
Electrical Connection (High VoltOptional, Heat
Rejection Unit)
117.6 (2986)

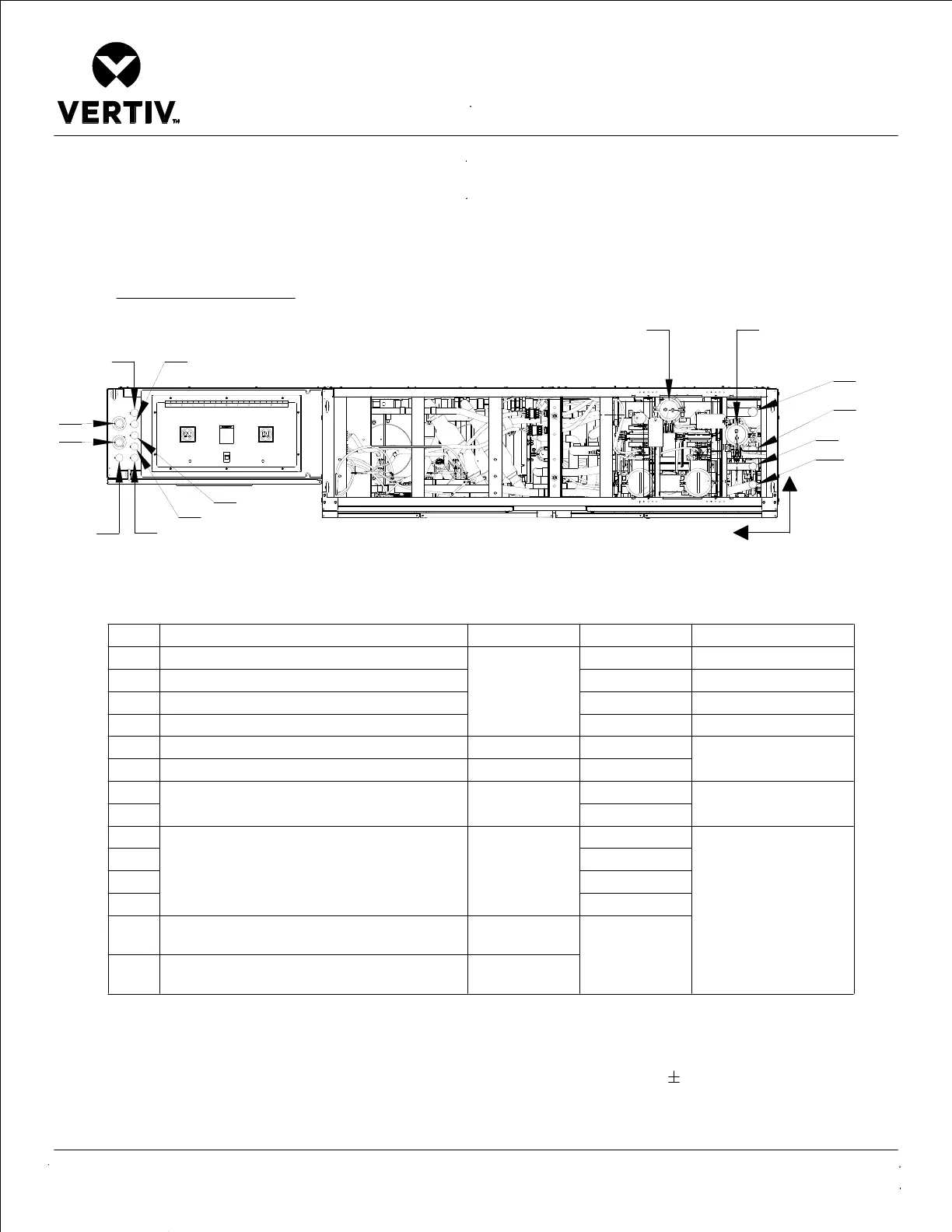

COOLPHASE CDU
PRIMARY CONNECTION LOCATIONS
XDM300
FORM NO. DPN004906 REV C
20000057
REV: B
REV DATE: 08/2024
REVISIONS
REV. DESCRIPTION
DATE DRAWN BY
DATE APPROVED BY
A
INITIAL RELEASE 02/23/2024 S. BARMAN
02/23/2024 J. MURPHY
B
FIXED ALL SIMPLIFIED REPS.
UPDATED TEMPLATE. CHGD
PRODUCT NAME TO COOLPHASE CDU.
ADDED NOTE 2.
08/26/2024 M. ADAMS
08/26/2024 J. MURPHY
XDM300 TOP VIEW
0
X
Y
XDM300 FULLY ASSEMBLED
1. Drawing not to scale. All dimensions from right corner on service side and have a tolerance of
1/2" (13mm)
2. All dimensions are in inches [mm].
3. Unit has internally installed traps on the discharge lines. For rises over 25ft. (7.6m), trap every 20ft. (6m) or evenly dvided.
Notes:
L1
