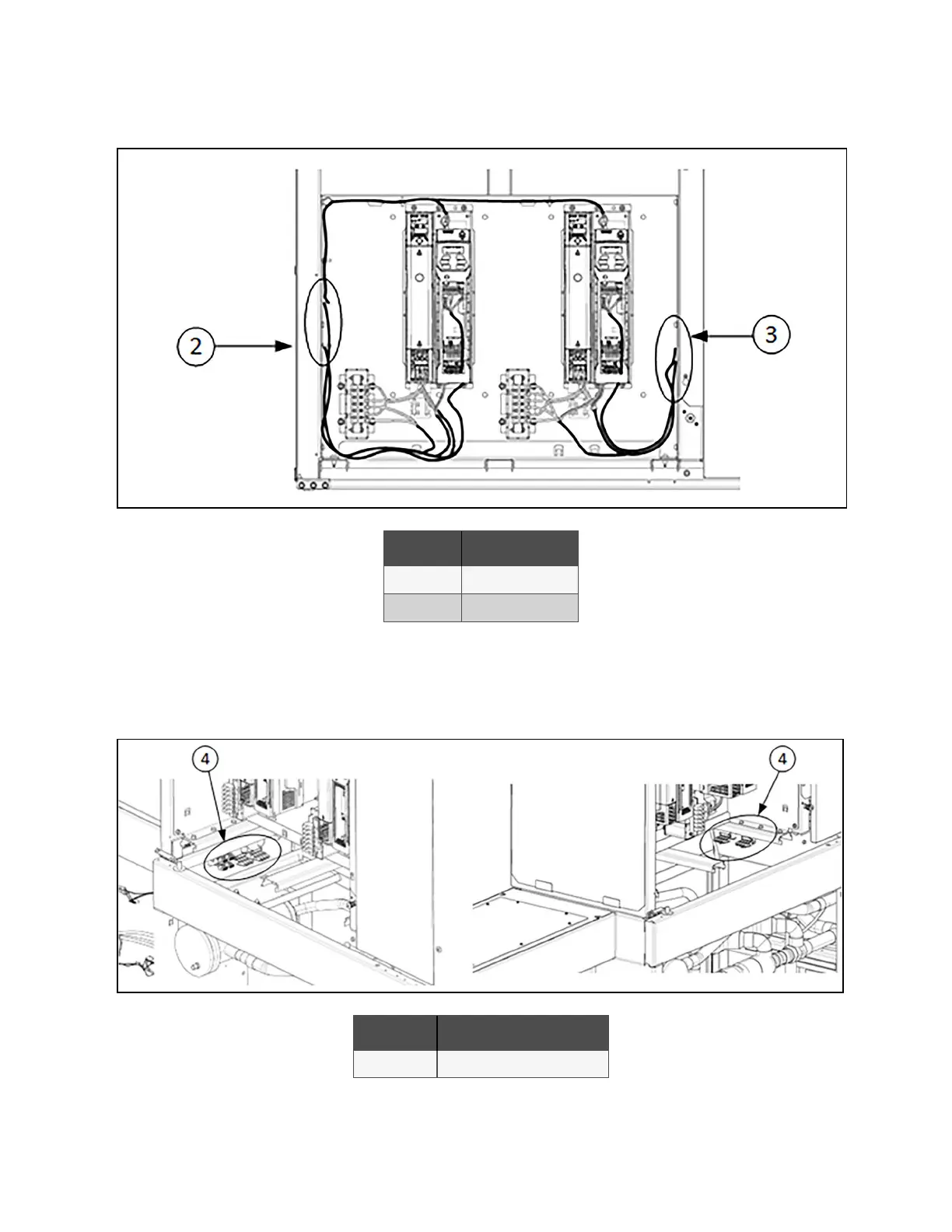

Figure 8.2 VFD Pump Cables
Item Description
2 Pump 1 cables
3 Pump 2 cables
3. The cables will be labeled for pump 1 and pump 2 by the factory.
4. Connect the uncoiled cables for pump 1 and pump 2 to their matching connectors located in the lower module.
See Figure 8.3 below .
Figure 8.3 Pump Cable Connections
Item Description
4 Pump cable connections
82 Proprietary and Confidential ©2024 Vertiv Group Corp. 8 Electrical Connections
Vertiv™ CoolPhase CDU Installer/User Guide
