LIEBERT APM UPS Module And Parallel System 30kVA~150kVA User Manual
1.4.8 UPS Composition

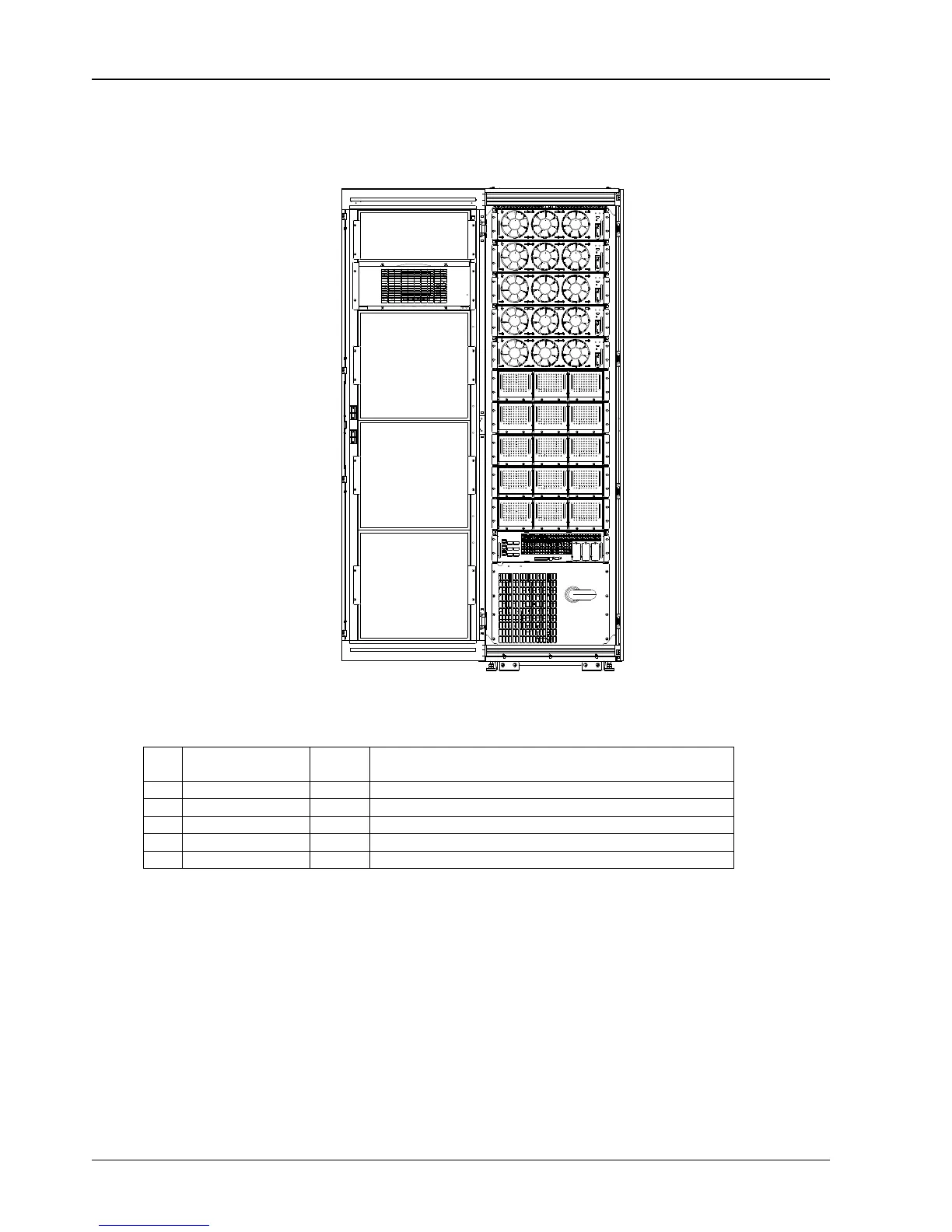

The UPS structure is shown in Fig.
1-1 The UPS configuration is provided in Tab.
1-1
Fig.
1-1: UPS Structure
Item
Component Quantity Remarks
1 System Display 1 Requisite, factpry installed
2 Maintenance Bypass 1 Requisite, factpry installed
3 Static Bypass module 1 Requisite, factory installed
4 Power module 1 ≤n ≤5
Requisite, factory installed if n≤3; 4
th
and 5
th
module installed at site
5 Battery module 0 ~ 10-n Optional, installed at site
Tab.
1-1: UPS configuration list
1.4.9 Installing Power Modules and Battery Modules
The number and possible installation positions of the Power Modules and Battery Modules may vary according to
the chosen factory configuration. Thanks to the different mounting depth it’s not possible to install a power module
instead of a battery module and vice versa.
Please install the power modules and Battery modules from bottom to top, so as to avoid cabinet toppling due to high
gravity center.
