32 Chapter 3 Installation Drawing
1081
340
DETAIL A
16
12
485
396
847
985

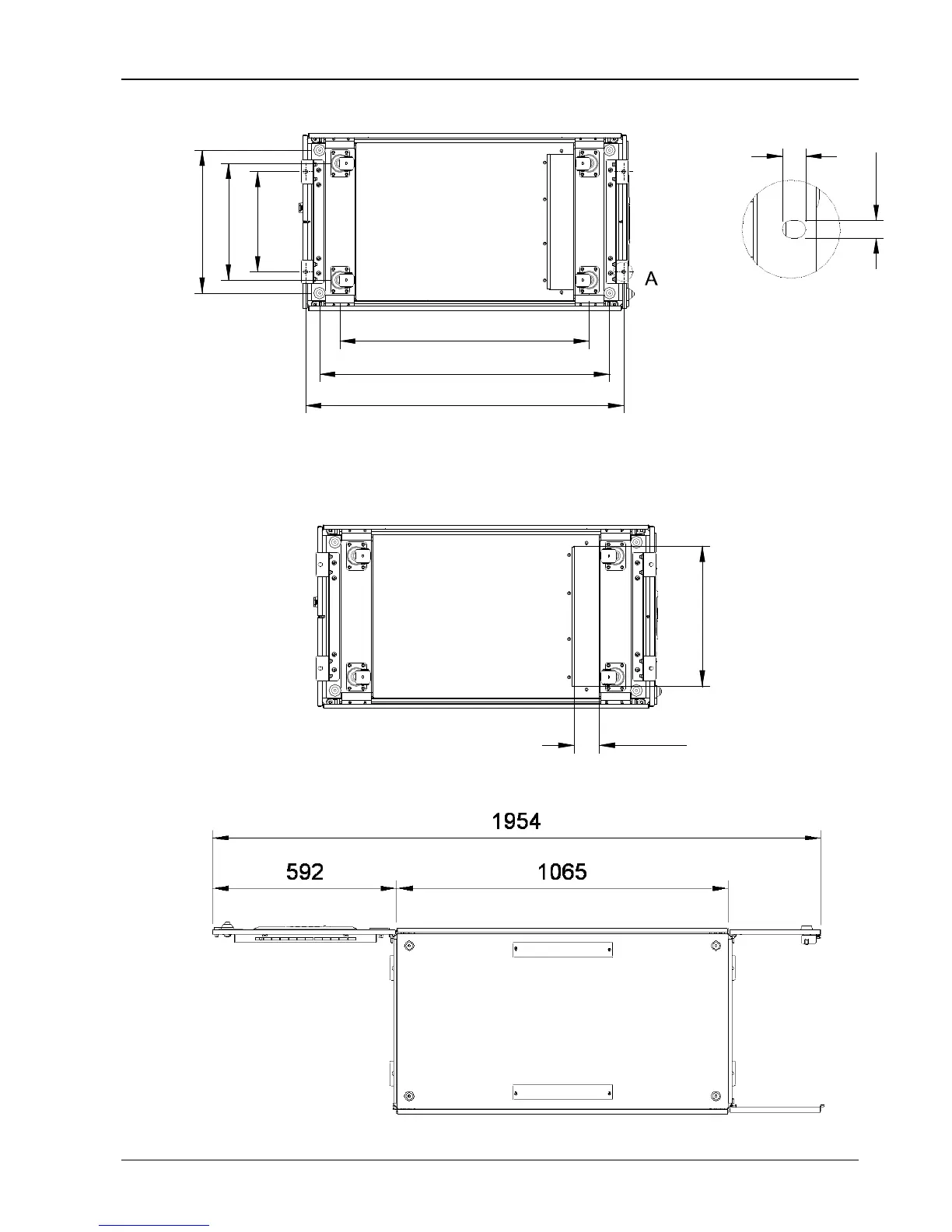

Fig.
4-7
: UPS and BC bottom view show the position of casters and fixing holes
460
80
Fig.
4-8
: UPS and BC bottom view show the cable entry area
