The unit is fixed on the packing pallet with M8*20 and M8*80 screws. Use a 17mm open-end spanner,
ratchet spanner, or sleeve to remove the screws.

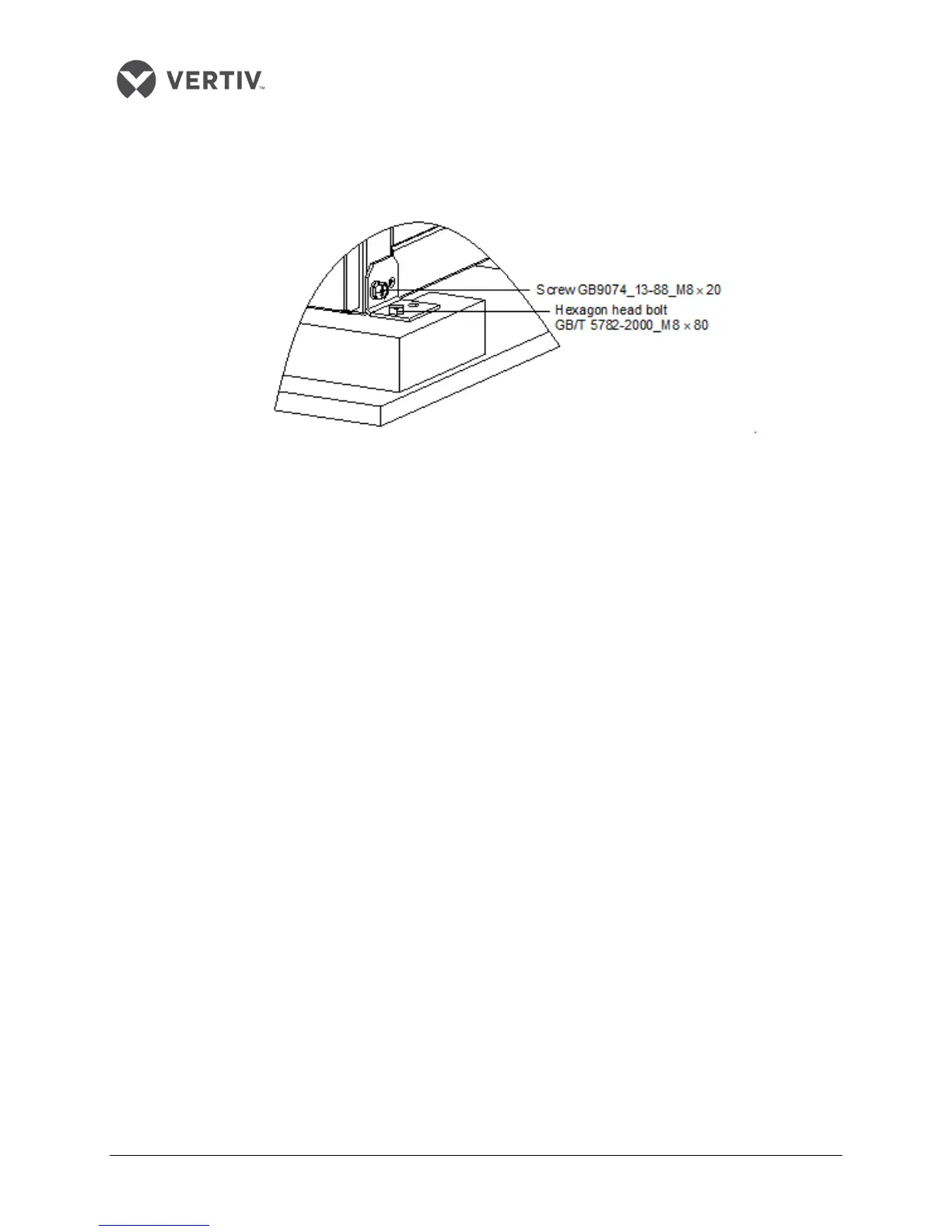

Refer to Figure 2-4 to see the schematic diagram for the same.
Figure 2-4 Screws on the pallet
2.1.3 Inspection
Moving forward, check the system fittings and its components against the packing list to ensure that
everything is in place and the assembly is intact.
If any parts or components are missing or damaged, immediately report to the carrier about the same. If
hidden damages are observed, then contact the local offices of that carrier as well as Vertiv Co. at the
earliest.
2.2 Installation Preparation (Site Preparation)
The CRV+ series of air conditioners is streamlined for maintaining a favorable environment for data
centers, computer rooms, and similar ecosystems. Strict adherence to the installation procedures is
mandatory in order to ascertain proper installation of the air conditioner.
2.2.1 Equipment Room Requirement
The equipment room must be prepared to ensure a smooth operation flow and obtain accurate results.
The equipment room must meet the standards for appropriate ventilation and heating. The design
specifications for the air conditioners must be ideal and should match the energy-efficient design
standards.
Following are the requirements for maintaining a favorable room environment prior to installation:
The equi
pment room should be well insulated and have a sealed damp-proof layer.
The outdoor air entering in should be kept at a minimum. The outside air will add the loads of
heating, cooling, humidifying, and dehumidifying of the system. It is recommended that the
inhalation of outside air be kept below 5% of the total indoor airflow.
All the doors and windows should be properly sealed to minimize the leakage. The seams should
be as narrow as possible.
