Listing 2.2
Model
Dimensions (W × D × H) (mm)
Net weight (kg)
CR012HA1380S02E10000PV000
300×1100×2000
210
CR012RA1380S12E10000PV000
215
CR025HA1380S02E10000PV000
300 × 1100 × 2000
250
CR025RA138SS12E10000PV000
260
CR035HA1380S02E10000PV000
600 × 1100 × 2000
315
CR035RA138SS12E10000PV000
335

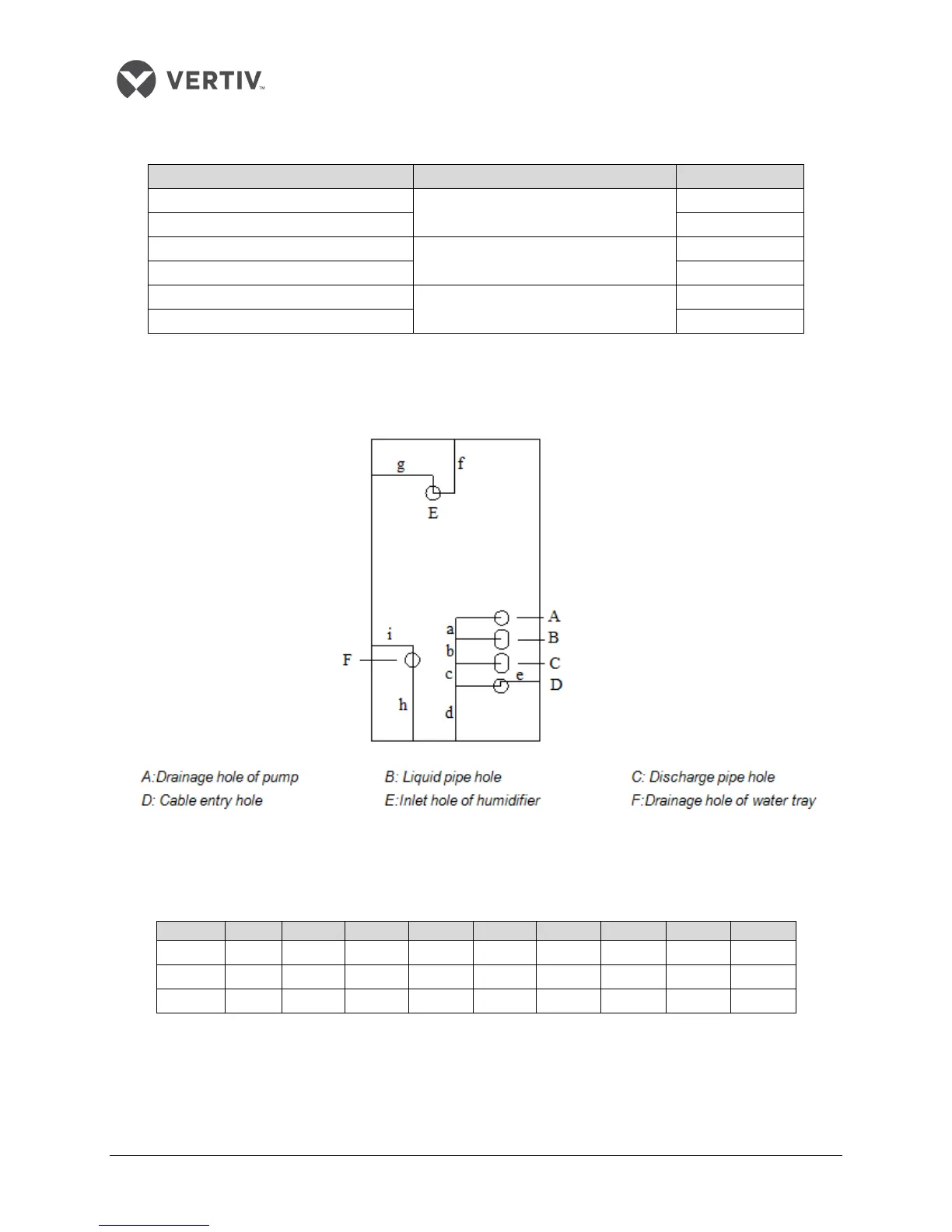

Base Plate pipe outlet Location & Dimensions
The locations of the pipe inlets and outlets on the unit base plate are shown in Figure 2-10:
Figure 2-10 Base Plate Location for pipe outlets
The following table in Listing 2.3 depicts the dimensions of the base plate pipe outlet:
Listing 2.3
Model
a
b
c
d
e
f
g
h
I
CR012
/
43
44
130
44
/
/
130
205
CR025
72
88
64
131
45
161
135
131
205
CR035
48
62
45
127
49
267
360
171
120
