4.2 Unit Storage
Store the drycooler in the original packaging in an area protected from excessive dirt, debris and contact damage until final
installation
4.3 Handling Unit on the Skid
Transport unit using a fork lift or a crane with sling and spreader bars.
Using a forklift
NOTICE
Risk of improper forklift handling. Can cause unit damage.
Keep the forklift tines level and at a height that will fit under the skid.
• Make sure the forks (if adjustable) are spread to the widest allowable distance to still fit under the skid.
• Type of forklift used will depend on the terrain the unit is to be moved across during handling.
• Minimum forklift fork length:
• for 1 fan and two fan units—48in (1219mm)
• for 3 fan and 4 fan units—72in. (1829mm)
• for 6 fan units—72 in. (1829 mm)
• for 8 fan units—96 in. (2438 mm)
• When moving the packaged unit, do not lift it any higher than 6in. (152mm). If the unit must be lifted higher
than 6-in. (152mm), you must exercise great care, and no one may be closer than 20ft(6m) to the lift point.
• We recommend lifting one end off the ground no more than 6in.(152mm)and using the forklift to push or pull
the unit.

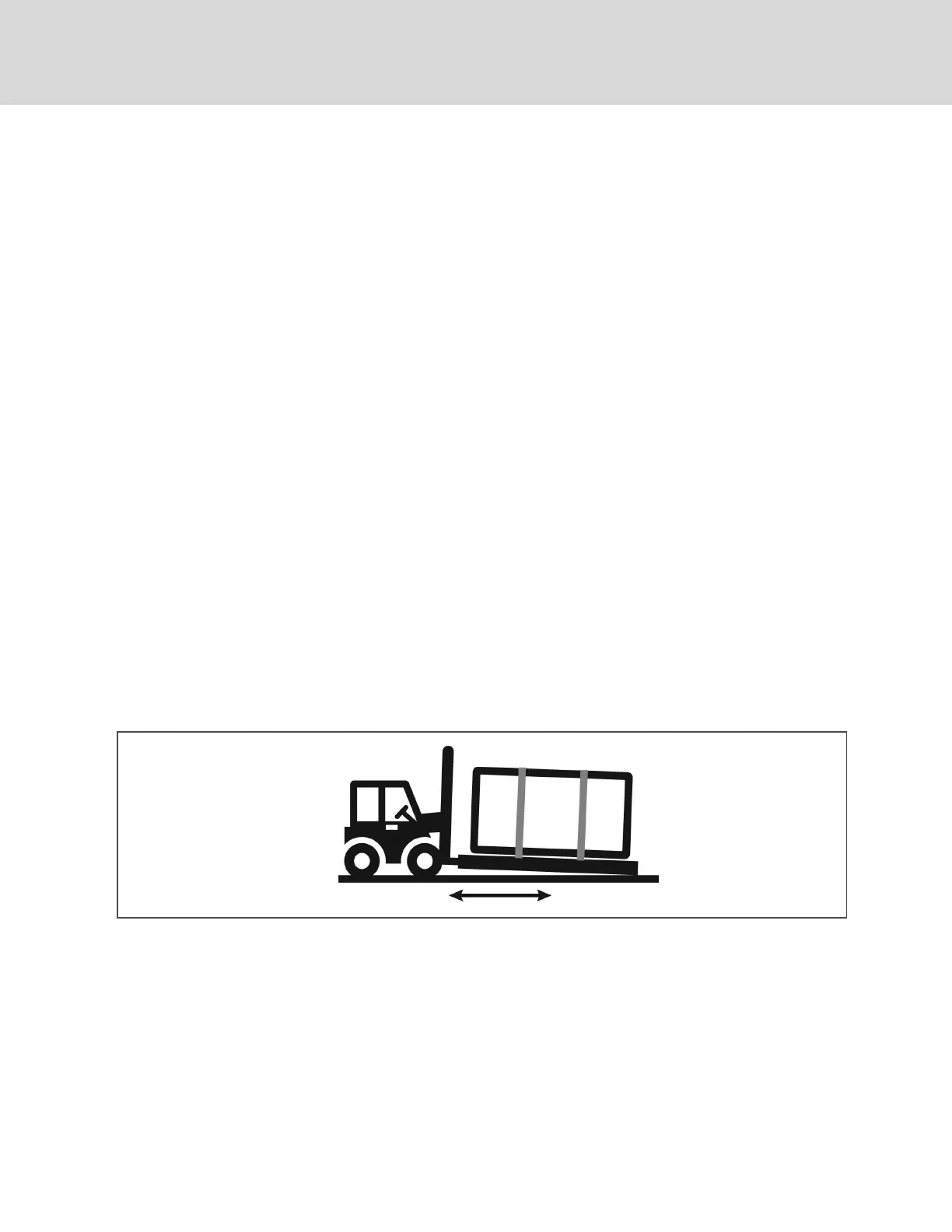

Figure 4.1 Forklift position with 1 to 8fan units
Using a Crane
• We recommend using slings rated for the unit weight.
• Spreader bars must be used for sling stability and to keep the slings from pressing against the unit. Make sure
spreader bars are wider than the unit.
• Place the slings near the ends of the unit, under the top deck boards of the skid.
