4.6 Preparing 6 and 8 Fan Drycoolers for Moving and Installation
The following procedure is one recommended process for removing a unit from the shipping skid. Other methods may be
used, provided that the methods are safe for personnel, the drycooler and equipment.
1. Refer to Figure 4.7 below, to attach the legs to the higher side of the unit:
• Use four (4) fasteners per leg. Fasteners are provided with the legs.
• Recommended tools for attachment is a 5/8” socket and ratchet.
• More legs may be required for installation than are shown. This will depend on the unit type and number
of fans. Refer to the appropriate planning-dimensions drawing in Submittal Drawings Contents on
page65, for the number of legs on your unit.

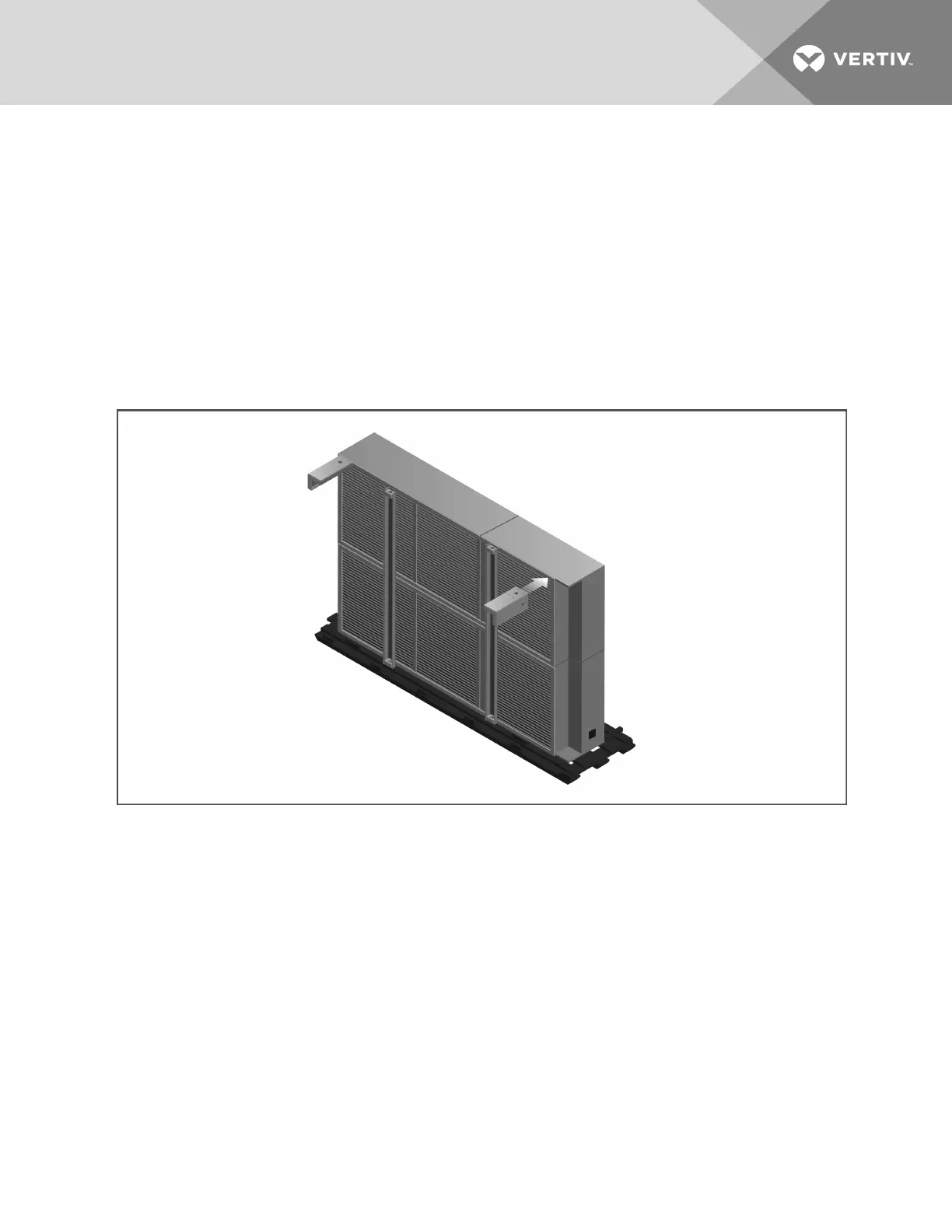

Figure 4.7 Attach Legs to Higher side of 6 or 8 Fan Drycooler
