DUAL PUMP PACKAGE
Form No.: DPN001040_REV4

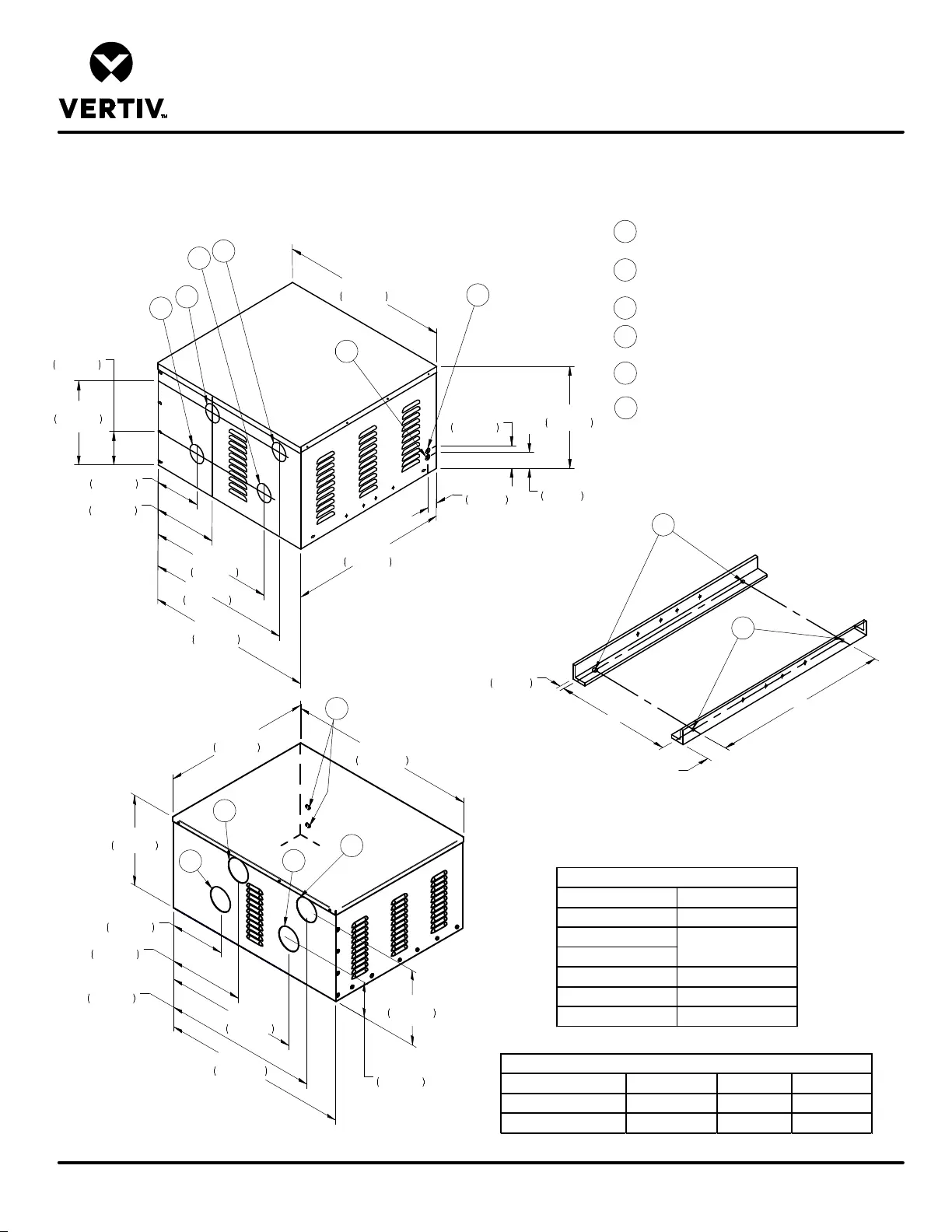

PIPING CONNECTIONS & DIMENSIONAL DATA
LIEBERT DRYCOOLER
19"
483mm
1 3/4"
44mm
30"
762mm
8 3/4"
222mm
12 1/4"
311mm
23 3/4"
603mm
27 1/4"
692mm
32"
813mm
6 3/8"
162mm
15 7/8"
403mm
3
3
2
2
1
1
DUAL PACKAGE 0.75 - 5 HP
1
2
3
3" (76.2mm) DIA. PUMP SUCTION CONNECTION K.O.'S
3" (76.2mm) DIA. PUMP DISCHARGE
CONNECTION K.O.'S
7/8" (22.2mm) DIA. ELECTRICAL K.O.'S
4
5
5" (127mm) DIA. PUMP DISCHARGE
CONNECTION HOLE
5" (127mm) DIA. PUMP SUCTION
CONNECTION HOLE
5
5
4
4
3
DUAL PACKAGE 7.5 HP
32 1/4"
819mm
2 7/8"
73mm
4 1/8"
105mm
33 3/16"
843mm
29 3/16"
741mm
15 7/8"
403mm
11 7/8"
302mm
16 3/8"
416mm
6 1/2"
165mm
41"
1041mm
41 1/4"
1048mm
32 3/8"
822mm
19 5/16"
491mm
6
1/2" (12.7mm) DIA. HOLES FOR
MOUNTING
A
3/4"
19mm
6
6
PUMP PACKAGE MOUNTING ANGLES
NOTE:
ANGLES LOCATED INSIDE, BOTTOM
OF PUMP PACKAGE. VIEW USED FOR
MOUNTING REFERENCE.
B
C
Pump Package A B C
Dual (0.75-5HP) 30-1/4 (768) 2-1/2 (64) 22-1/2 (572)
Dual (7.5HP) 39-5/16 (999) 1-3/4 (45) 26-7/8 (683)
Mounting Hole Dimensional Data in. (mm)
Model Weight lb (kg)
D.75 138 (63)
D1.5
D2
D3 164 (74)
D5 220 (100)
D7.5 276 (125)
Dual Pump Package Weights
140 (64)
