Vertiv Liebert Drycooler - Piping Connections

REV : 6
REV DATE : 7/17
DPN000275
Page :1 /1
Form No.: DPN001040_REV4

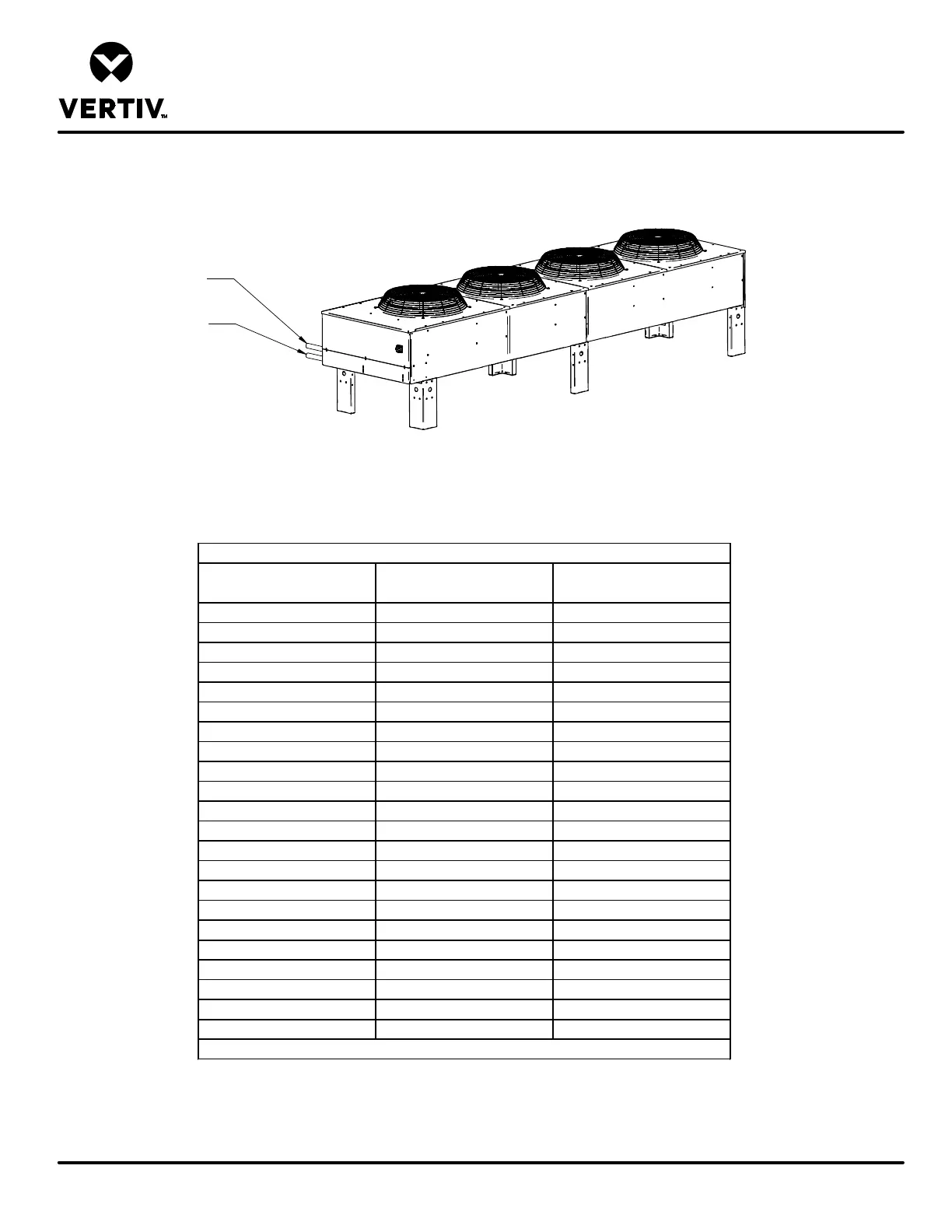

PIPING CONNECTIONS
LIEBERT DRYCOOLER
DRYCOOLER MODEL
NUMBER
NUMBER OF COIL
CIRCUITS
INLET & OUTLET PIPE
DIAMETER (INCHES)
-033 4* 1 3/8
-069 4, 8* 1 3/8
-092 6, 12*, 16 1 5/8
-109 8 1 3/8
-109 16* 2 1/8
-112 8 1 3/8
-112 16*, 26 2 1/8
-139 8, 16* 2 1/8
-174 8, 16*, 24 2 1/8
-197 8 1 3/8
-197 16*, 32 2 1/8
-225 16, 26* 2 1/8
-260 16, 24* 2 1/8
-310 16, 32* 2 1/8
-350 16, 32* 2 1/8
-350 48 2 5/8
-352 16, 24* 2 1/8
-419 16, 32* 2 1/8
-466 26 2 1/8
-466 40* 2 5/8
-491 16, 32 2 1/8
-491 48* 2 5/8
DRYCOOLER PIPING CONNECTION SIZES (O.D. Cu)
* = Standard Circuiting
INLET CONNECTION
(UPPER HEADER)
OUTLET CONNECTION
(LOWER HEADER)
