Vertiv Liebert Drycooler - 6 & 8 Fan Quiet-Line Heat Rejection Models W; no Control

REV : 3
REV DATE : 6/19
DPN000722
Page :1 /1
6 & 8 FAN QUIET-LINE HEAT REJECTION MODELS W/ NO CONTROL
Form No.: DPN001040_REV4

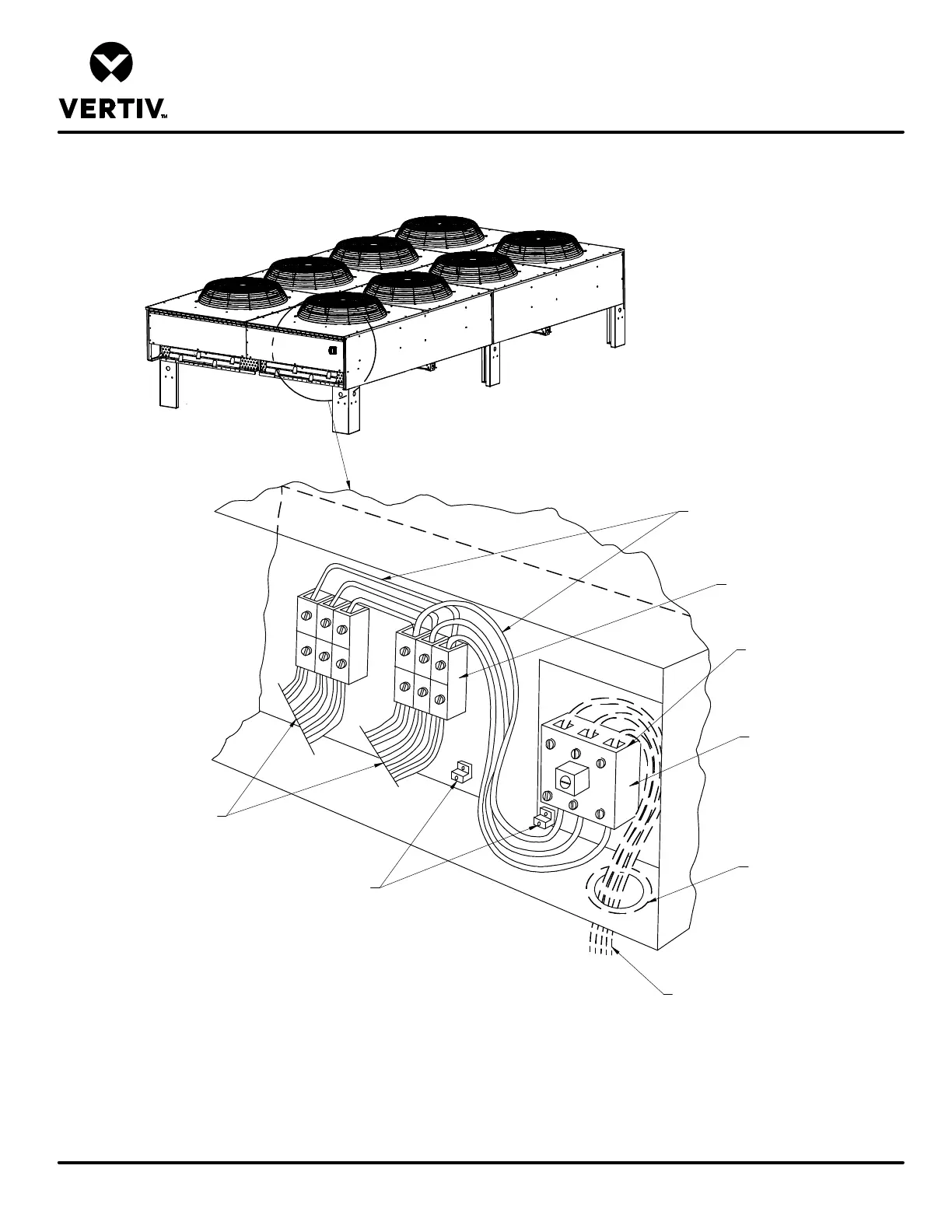

ELECTRICAL FIELD CONNECTIONS
LIEBERT DRYCOOLER
NOTE: Refer to specification sheet for full load amp. and wire size amp. ratings.
Factory wired
directly to
fan motors
Earth ground connection (60Hz)
Connection terminal for field
supplied earth grounding wire
when factory disconnect is NOT
supplied.
Electric service connection
to fuse block (factory wired)
Electric service connection
to fuse block (factory wired)
Electric service connection
terminals for field wiring
Factory installed
disconnect switch
Electric service entrance
A 7/8" (22mm) hole in a
1-1/8" (29mm) knockout
provided in bottom of
electric panel
Electric service not by Liebert.
Three phase for all models.
Provide in accordance with
local and national electric code
