Vertiv Liebert Drycooler - Quiet-Line Models

REV : 6
REV DATE : 7/17
DPN000281
Page :1 /1
Form No.: DPN001040_REV4

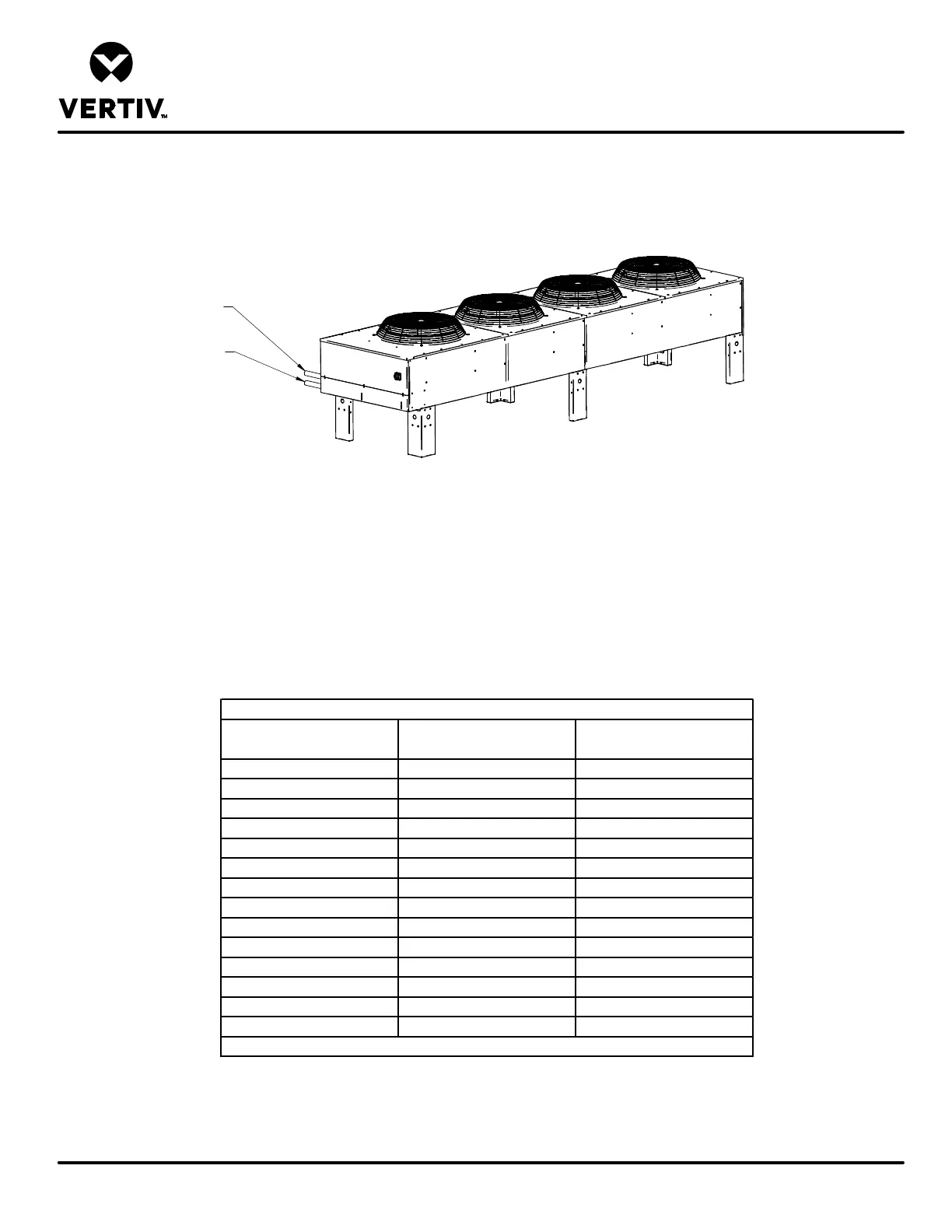

PIPING CONNECTIONS
LIEBERT DRYCOOLER
QUIET-LINE MODELS
DRYCOOLER MODEL
NUMBER
NUMBER OF COIL
CIRCUITS
INLET & OUTLET PIPE
DIAMETER (INCHES)
-040 4, 8* 1 3/8
-057 12* 1 5/8
-057 16 2 1/8
-060 8 1 3/8
-060 16* 2 1/8
-080 8, 16* 2 1/8
-111 16*, 24 2 1/8
-121 16*, 32 2 1/8
-158 16, 24* 2 1/8
-173 16, 32* 2 1/8
-178 16, 32* 2 1/8
-178 48 2 5/8
-205 16, 24* 2 1/8
-248 16, 32* 2 1/8
DRYCOOLER PIPING CONNECTION SIZES (O.D. Cu)
* = Standard Circuiting
INLET CONNECTION
(UPPER HEADER)
OUTLET CONNECTION
(LOWER HEADER)
